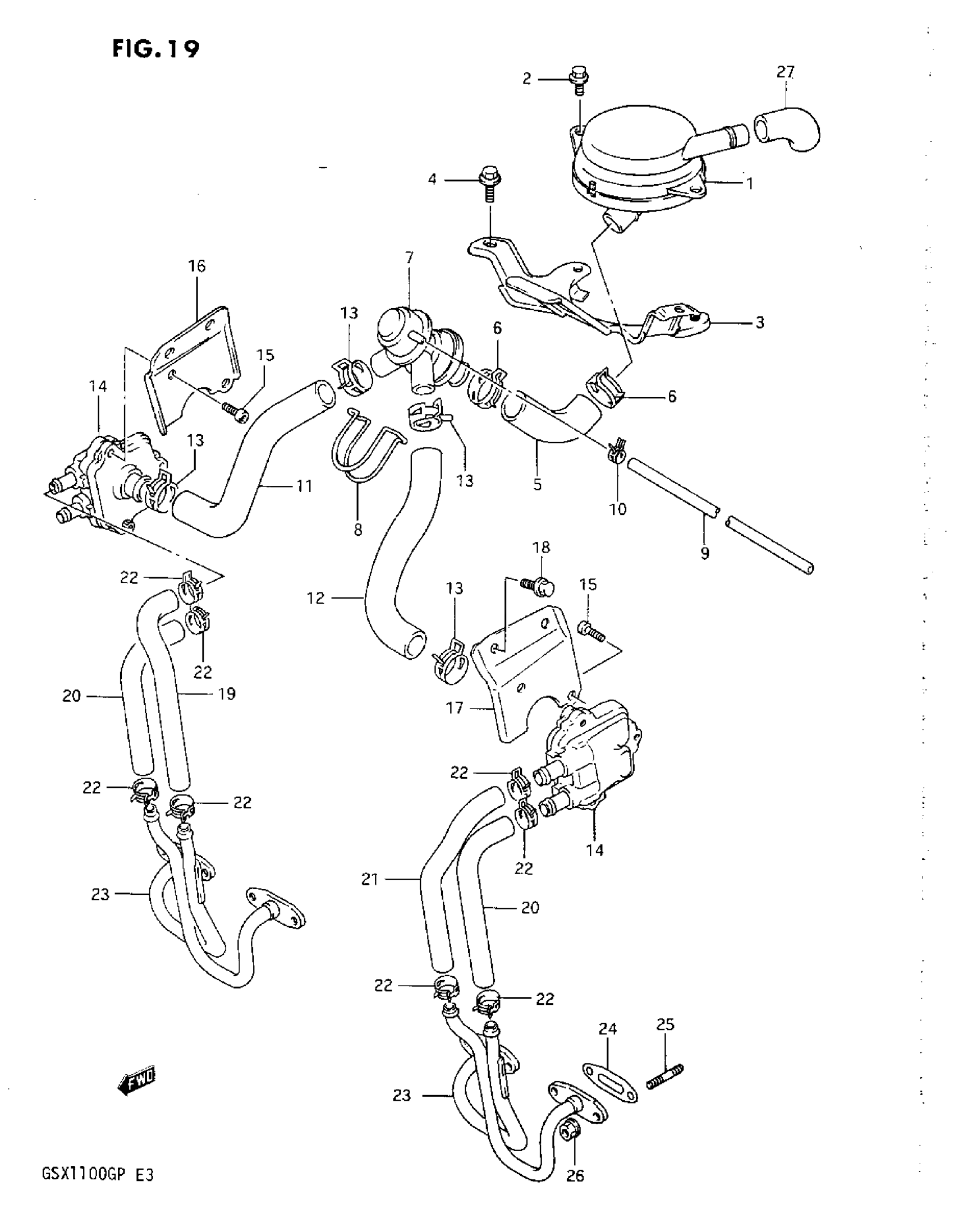

Suzuki GSX1100G (1993) SECOND AIR CALIFORNIA ONLY Diagram

#

Description
Price

1

CLEANER ASSY, 2ND AIR | MODEL M/N

18700-26D00

Unavailable

1

CLEANER ASSY, 2ND AIR | MODEL P This part replaces 18700-26D01.

18700-17C03

Unavailable

2

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97

3

BRACKET, AIR CLEANER

18750-26D00

Unavailable

4

BOLT

01517-06166

Unavailable

5

HOSE, 2ND AIR, NO.3

18551-26D00

Unavailable

6

CLIP

09401-25402

Unavailable

7

VALVE ASSY, AIR SWITCING

18510-06B00

Unavailable

8

CLAMP, SWITCING VALVE

18522-17C00

Unavailable

9

HOSE, 2ND AIR VALVE VACUUM | L:300->250 This part replaces 09359-45852-300.

09359-45852-600

Unavailable

10

CLIP

09401-07401

Unavailable

11

HOSE, 2ND AIR NO.2, RH

18481-26D00

Unavailable

12

HOSE, 2ND AIR NO.2, LH

18482-26D00

Unavailable

13

CLIP

09401-21401

Unavailable

14

VALVE ASSY, 2ND AIR REED

18450-48B00

Unavailable

15

BOLT This part replaces 07110-05167.

07130-05167

$3.15

16

BRACKET, AIR VALVE, RH

18471-26D00

Unavailable

17

BRACKET, AIR VALVE, LH

18472-26D00

Unavailable

18

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

19

HOSE, 2ND AIR NO.1, RH IN

18445-26D00

Unavailable

20

HOSE, 2ND AIR N0.1, OUT

18447-26D00

Unavailable

21

HOSE, 2ND AIR NO.1, LH

18446-26D00

Unavailable

22

CLAMP This part replaces 09401-13408.

09401-13417

$2.26

23

PIPE, 2ND AIR

18430-26D00

Unavailable

24

GASKET, 2ND AIR PIPE This part replaces 18441-17C10.

18441-17C11

$7.25

25

BOLT,STUD This part replaces 01421-06125.

01421-0612A

Unavailable

26

NUT This part replaces 08316-16064.

08316-1006B

$2.50

27

HOSE, CLEANER INLET

18731-48B00

Unavailable
