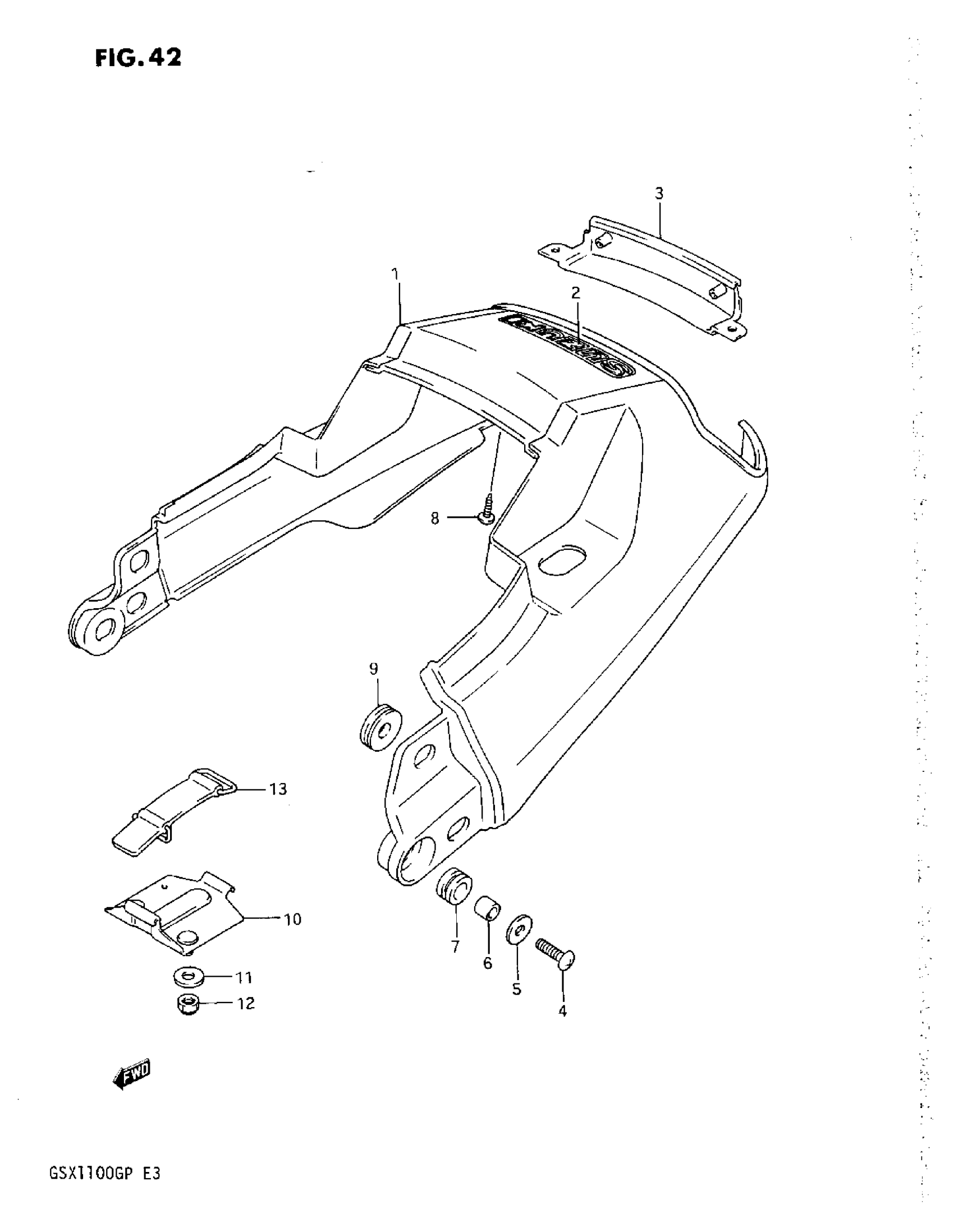

Suzuki GSX1100G (1993) SEAT TAIL COVER Diagram

#

Description
Price

1

COVER ASSY, SEAT TAIL (MAROON) | MODEL M

45500-26D00-20F

Unavailable

1

COVER ASSY, SEAT TAIL (MAROON) | MODEL N/P This part replaces 45500-26D10-20F.

45500-26D00-20F

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 45500-26D00-33J.

45500-26D00-2AX

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 45500-26D10-13Z.

45500-26D00-13Z

Unavailable

1

COVER ASSY, SEAT TAIL (BLUE) | MODEL M/N

45500-26D00-0FJ

Unavailable

1

COVER ASSY, SEAT TAIL (GRAY) | MODEL M/N

45500-26D00-1AC

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR 20F, 33J, 0FJ, 13Z This part replaces 68132-26D01-23S.

68132-26D01-0RN

Unavailable

2

NO DESCRIPTION AVAILABLE | FOR 1AC This part replaces 68132-26D01-20H.

68132-26D01-0RN

Unavailable

3

COVER, SEAT TAIL LOWER (MAROON)

45514-26D00-20F

Unavailable

3

COVER, SEAT TAIL LOWER (BLACK) | MODEL M

45514-26D00-33J

Unavailable

3

COVER, SEAT TAIL LOWER (BLACK) | MODEL N/P This part replaces 45514-26D00-13Z.

45514-26D00-33J

Unavailable

3

COVER, SEAT TAIL LOWER (BLUE) | MODEL M

45514-26D00-0FJ

Unavailable

3

COVER, SEAT TAIL LOWER (BLACK) | MODEL M This part replaces 45514-26D00-1AC.

45514-26D00-33J

Unavailable

4

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

5

WASHER

09160-06056

$1.72

6

SPACER This part replaces 09180-06152.

09180-06262

$2.55

7

CUSHION

09320-09016

$1.97

8

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49

9

CUSHION

09320-08018

$3.04

10

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$16.00

11

WASHER This part replaces 09160-06006.

09160-06084

$1.78

12

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

13

BAND This part replaces 09462-00072.

09462-00094

$3.16
