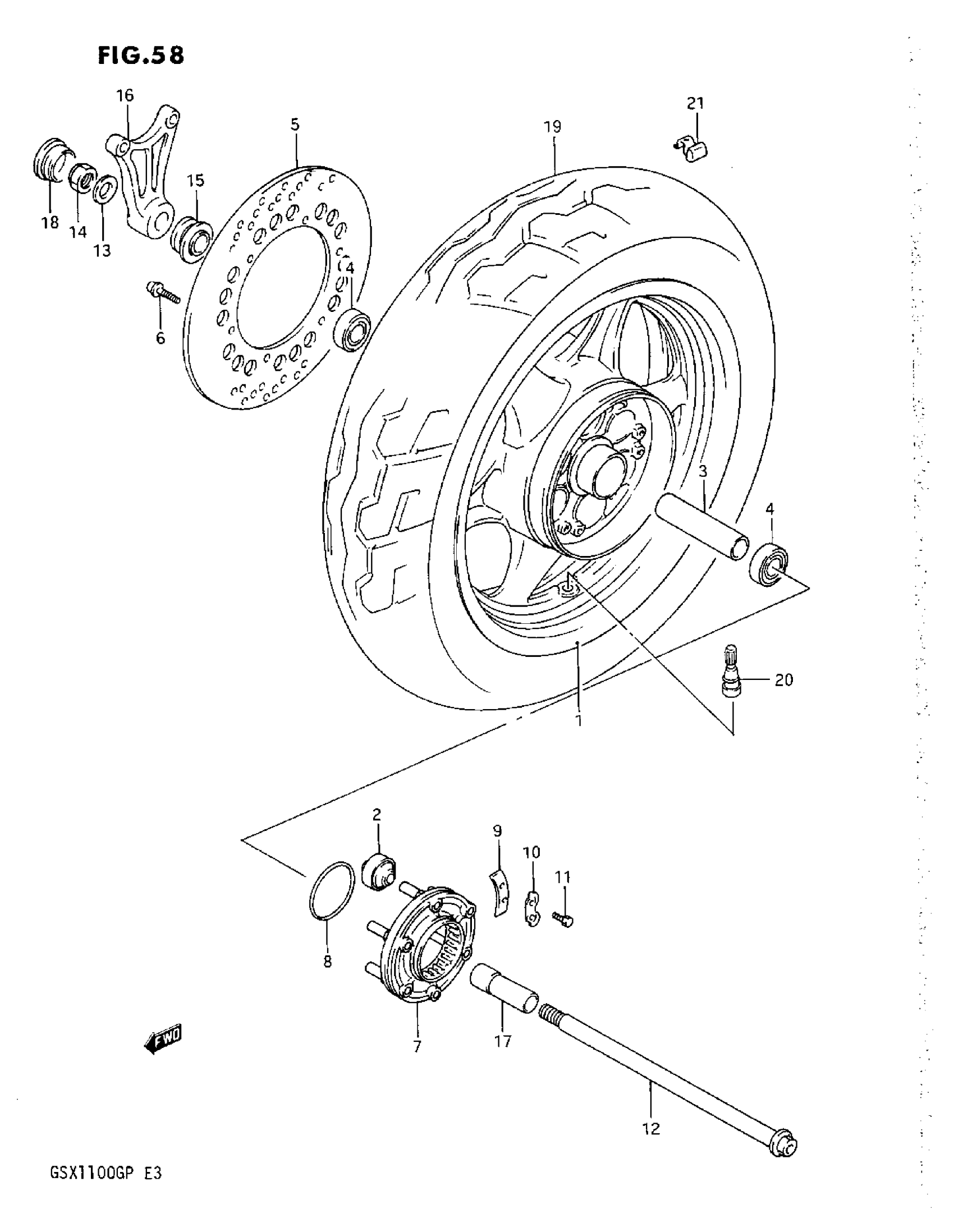

Suzuki GSX1100G (1993) REAR WHEEL Diagram

#

Description
Price

1

WHEEL SET,REAR, This part replaces 64100-26811-12Z.

64100-26813-12Z

Unavailable

2

BUSHING

09319-12019

$13.11

3

SPACER, HUB

09180-20112

$37.45

4

BEARING

09262-20114

$32.57

5

DISC, REAR BRAKE

69211-26D00

Unavailable

6

BOLT This part replaces 07120-08308.

07120-08307

$4.77

7

JOINT ASSY, HUB DRIVEN

64680-24A00

$277.25

8

O-RING

09280-65003

$3.72

9

WASHER, THRUST

64677-45110

$2.92

10

WASHER

09169-06030

$3.15

11

BOLT

09119-06049

$1.56

12

AXLE, REAR

64711-26D00

Unavailable

13

WASHER This part replaces 08322-11188.

08322-0118B

$2.70

14

NUT

09159-18004

$24.75

15

SPACER, AXLE RH

64740-48B00

Unavailable

16

BRACKET, CALIPER

69721-26D00

Unavailable

17

SPACER, AXLE LH

64772-24A00

Unavailable

18

CAP, AXLE RH

64791-26D01

Unavailable

19

TIRE, REAR (160/70 V17) DUNLOP

65110-26D00

Unavailable

20

VALVE ASSY

43130-24A00

$8.85

21

BALANCER (10G) | 0-3, U.N.

55411-00A00

$1.49

21

BALANCER, WHEEL NO.2 | 0-3, U.N. This part replaces 55412-00A00.

55412-17G00

$7.05

21

BALANCER (30G) | 0-3, U.N. This part replaces 55413-00A00.

55413-00A01

Unavailable
