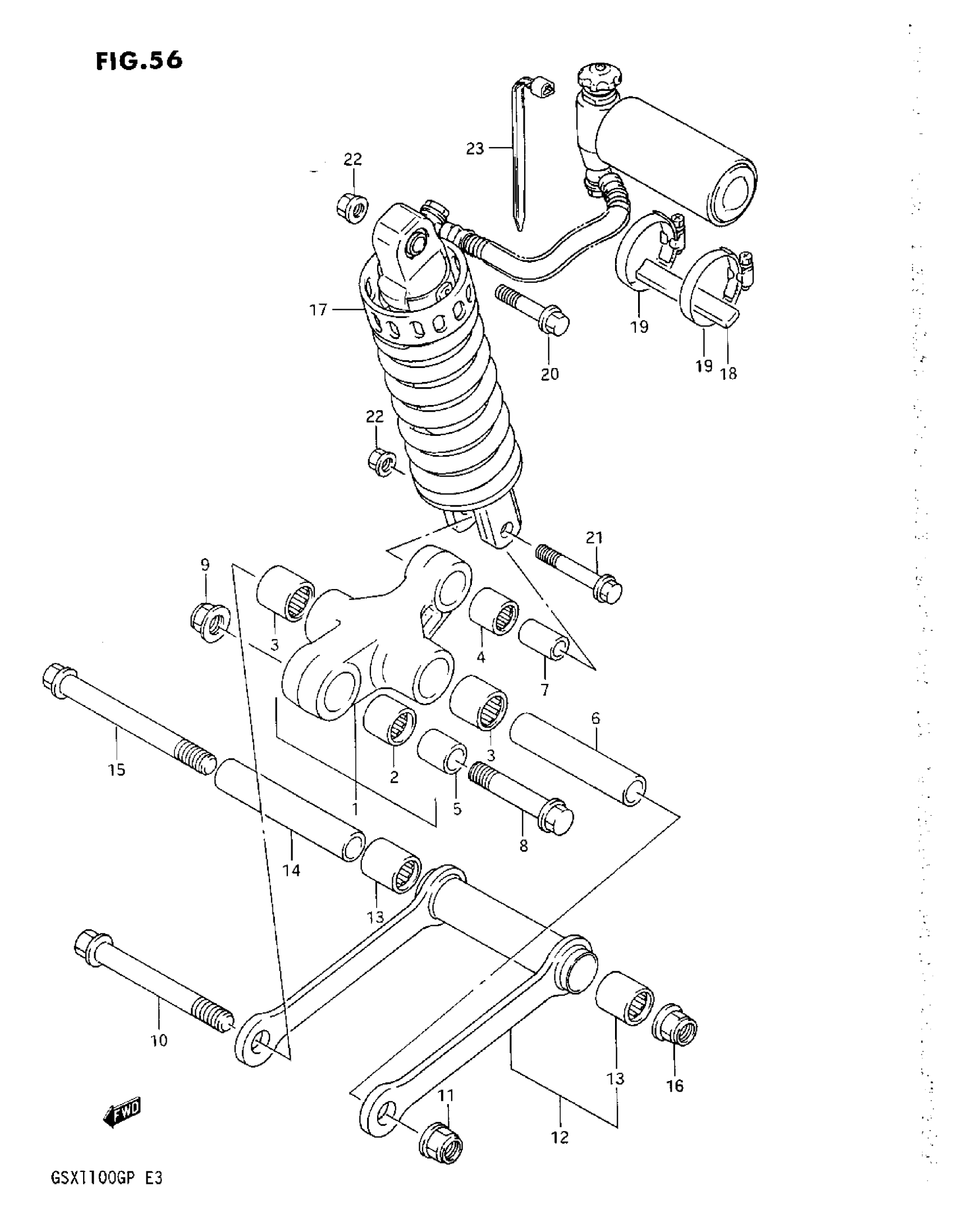

Suzuki GSX1100G (1993) REAR CUSHION LEVER (M) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-26840

Unavailable

2

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

3

BEARING

09263-20071

$25.92

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, FRONT

09180-14014

$17.50

6

SPACER, CENTER

09180-14020

Unavailable

7

SPACER, REAR CUSHION ROD This part replaces 62684-01D10.

62684-40A10

$12.15

8

BOLT, FRONT

09103-14016

Unavailable

9

NUT This part replaces 08319-31145.

08319-3114B

$12.87

10

BOLT, CENTER

09103-14017

$17.93

11

NUT This part replaces 08319-31145.

08319-3114B

$12.87

12

ROD SET, REAR CUSHION LOWER

62600-26850

Unavailable

13

BEARING

09263-20071

$25.92

14

SPACER, ROD

09180-14021

Unavailable

15

BOLT, ROD

09103-14018

Unavailable

16

NUT This part replaces 08319-31145.

08319-3114B

$12.87

17

ABSORBER ASSY, REAR SHOCK This part replaces 62100-26D00.

62100-26D20

Unavailable

18

CUSHION, TANK

62331-48B00

Unavailable

19

CLAMP This part replaces 09402-43501.

09402-50511

$11.73

20

BOLT, UPPER

09103-10064

$5.52

21

BOLT, LOWER

09103-10185

Unavailable

22

NUT This part replaces 08319-31105.

08319-3110A

$2.73

23

CLAMP, TANK HOSE

09407-18402

$2.19
