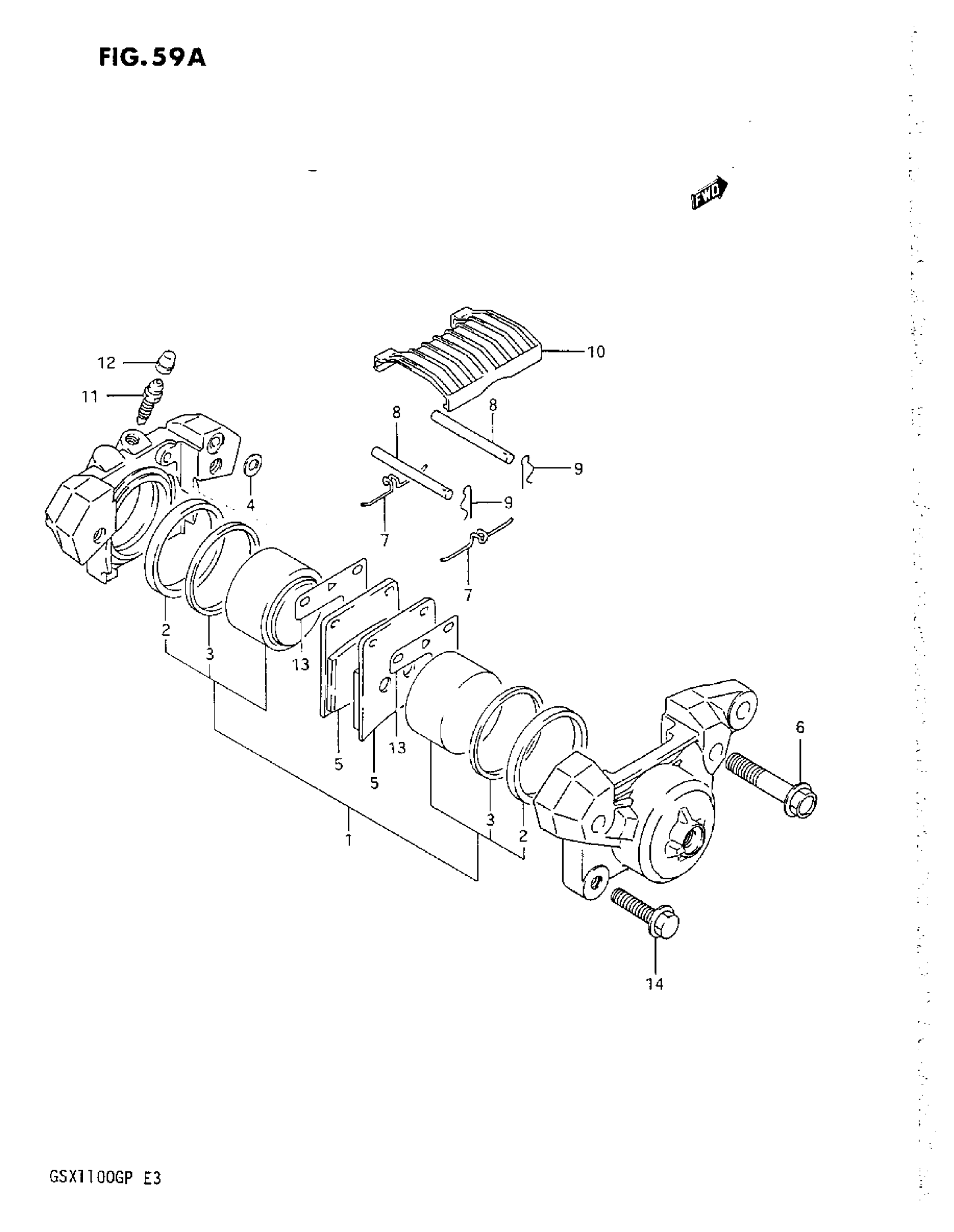

Suzuki GSX1100G (1993) REAR CALIPER (P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 69100-26D02.

69100-45C21-999

Unavailable

1

PISTON SET

69100-45880

Unavailable

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

$9.79

3

BOOT

69108-45010

Unavailable

4

SEAL

69107-34200

$10.71

5

PAD & SHIM SET This part replaces 69130-26D00.

69100-26830

Unavailable

6

BOLT

59145-16700

$8.83

7

SPRING

69143-45001

$6.73

8

PIN

69141-45000

$5.17

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-16701

$13.36

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

69152-45C10

Unavailable

14

BOLT This part replaces 01517-08304.

01550-0830A

$3.04
