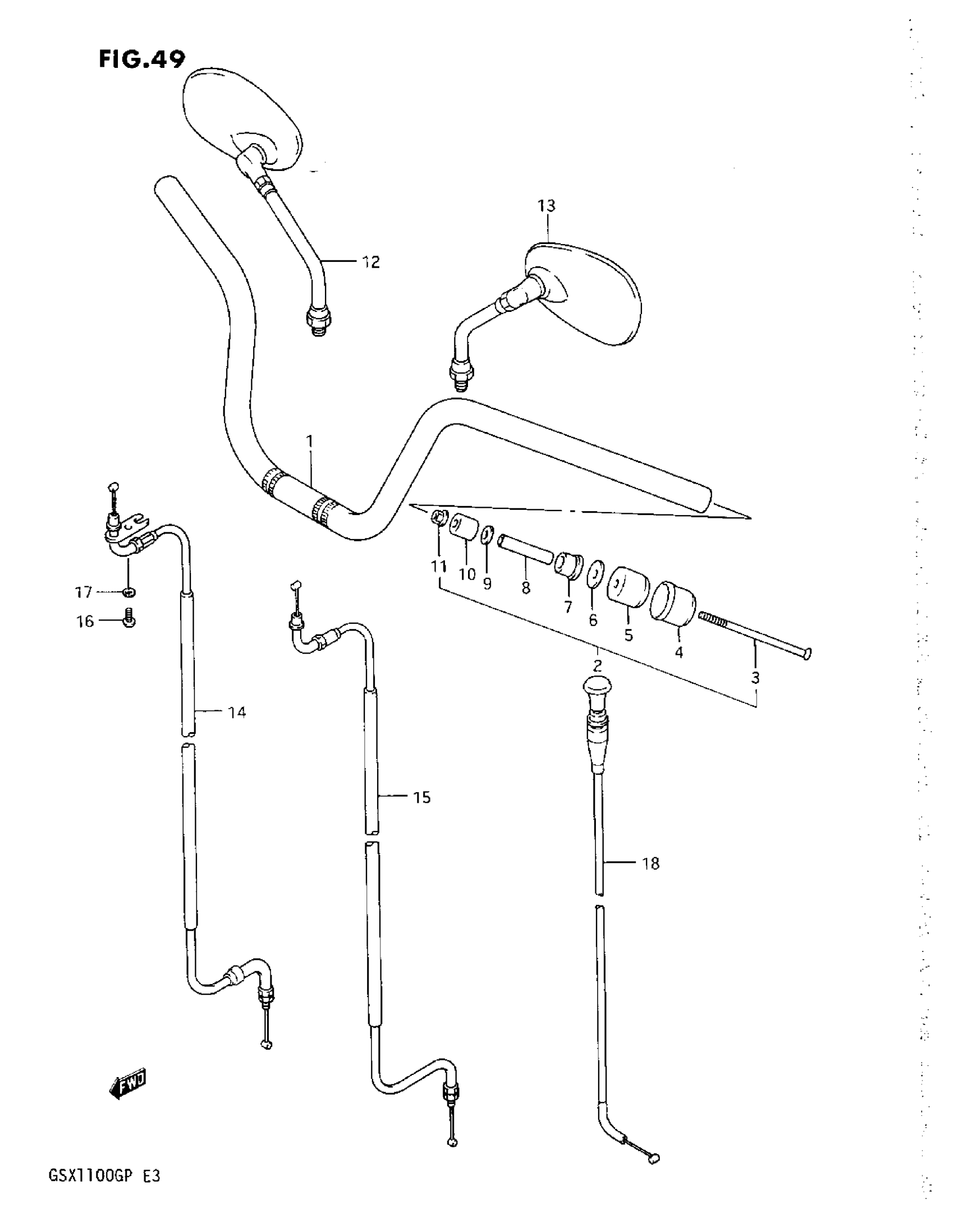

Suzuki GSX1100G (1993) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56111-26D10.

56111-26D11

Unavailable

2

BALANCER SET This part replaces 56200-26820.

56200-38811

Unavailable

3

SCREW

09127-06019

$3.55

4

CAP

56274-26D00

Unavailable

5

BALANCER

56271-26D10

Unavailable

6

SPACER This part replaces 56275-26D00.

56275-26D01

Unavailable

7

EXPANDER, OUTER This part replaces 56272-26D00.

56272-26D01

$7.25

8

SPACER

56276-17D00

$5.07

9

WASHER (6.5X18X1.0)

09160-06028

$1.49

10

BALANCER SET This part replaces 56271-26D00.

56200-38811

Unavailable

11

NUT

09159-06024

$2.11

12

MIRROR ASSY,REA This part replaces 56500-10D30.

56500-10DA1

Unavailable

13

MIRROR ASSY,REA This part replaces 56600-10D30.

56600-10D41

Unavailable

14

CABLE ASSY,THRO | MODEL M This part replaces 58300-26D20.

58300-26D23

$71.73

14

CABLE ASSY,THRO | MODEL N/P This part replaces 58300-26D22.

58300-26D23

$71.73

15

CABLE ASSY, THR | MODEL M This part replaces 58300-26D30.

58300-26D33

Unavailable

15

CABLE ASSY, THR | MODEL N/P This part replaces 58300-26D32.

58300-26D33

Unavailable

16

SCREW

02112-05087

$1.49

17

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

18

CABLE ASSY,STAR This part replaces 58400-26D00.

58400-26D01

Unavailable
