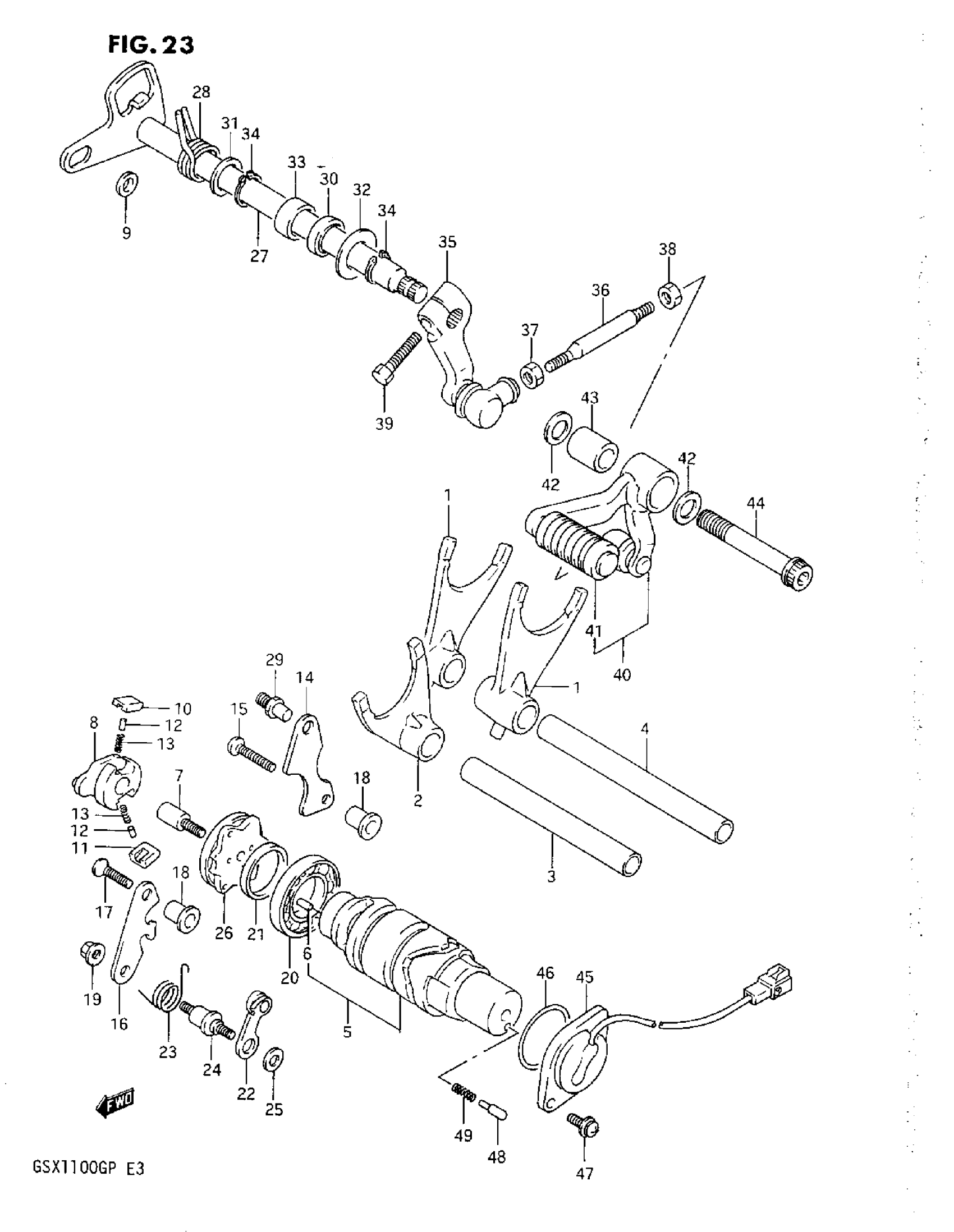

Suzuki GSX1100G (1993) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-26D00

Unavailable

2

FOR , GEAR SHIFTING NO.3

25231-26D01

Unavailable

3

SHAFT,GEAR SHIFT FORK (L:110) | MODEL M/N This part replaces 25411-26D00.

25411-26D01

$25.68

3

SHAFT,GEAR SHIFT FORK (L:110) | MODEL P

25411-26D01

$25.68

4

SHAFT, FORK (L:128)

25411-27A00

$29.25

5

CAM, GEAR SHIFTING

25310-26D00

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

PIN, SHIFT CAM DRIVEN GEAR

25312-12C00

$8.05

8

SHIFTER, GEAR SHIFT CAM This part replaces 25322-33C00.

25322-33C01

$64.68

9

ROLLER

09180-07014

$4.11

10

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

11

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

12

PIN

09261-05003

$1.54

13

SPRING

09440-04003

$1.54

14

LIFTER, PAWL

25331-26D00

Unavailable

15

SCREW This part replaces 02112-06308.

02112-06307

$1.97

16

GUIDE, CAM

25341-26D00

Unavailable

17

SCREW This part replaces 02122-06308.

02122-0630B

$2.06

18

SPACER

09180-06202

Unavailable

19

NUT This part replaces 09159-06017.

08319-31067

$2.03

20

BEARING (25X47X8) This part replaces 09262-25002.

09262-25006

$25.54

21

WASHER (25X32X3)

09160-25059

$6.63

22

STOPPER, SHIFT CAM | MODEL M This part replaces 25350-26D00.

25350-26D01

$16.22

22

STOPPER, CAM | MODEL N/P

25350-26D01

$16.22

23

SPRING This part replaces 25355-26D00.

25355-26D21

$6.71

24

SUPPORT, STOPPER

25356-12C00

$17.37

25

WASHER

08211-06141

$1.59

26

PLATE, STOPPER

25380-12B00

Unavailable

27

SHAFT, GEAR SHIFTING

25510-26D00

Unavailable

28

SPRING

09444-20001

$5.24

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

30

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

31

WASHER, RH (14X22X1.0) This part replaces 08211-14221.

09181-14167

$2.53

32

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

$2.85

33

BEARING (14X20X12)

09263-14027

$13.52

34

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

35

ARM, GEAR SHIFT LINK

25520-26D00

Unavailable

36

NO DESCRIPTION AVAILABLE This part replaces 25525-49010.

25525-26D00

Unavailable

37

NUT

09140-06011

$1.49

38

.NUT This part replaces 08310-11067.

08310-00067

$2.13

39

BOLT This part replaces 01107-06207.

01500-06207

$2.28

40

NO DESCRIPTION AVAILABLE This part replaces 25600-26D01.

25600-26D02

Unavailable

41

COVER

25652-20C00

$5.44

42

WASHER This part replaces 08322-21108.

08322-01107

$2.15

43

SPACER

09180-10130

Unavailable

44

NO DESCRIPTION AVAILABLE This part replaces 07120-10708.

07120-10707

Unavailable

45

BODY, GEAR SHIFTING SWITCH

37720-48B00

$58.92

46

O-RING (D:2.4, ID:36.2)

09280-36001

$3.29

47

SCREW This part replaces 09138-05003.

09138-05011

$2.23

48

CONTACT

09209-05011

$2.20

49

SPRING

09440-04010

$1.54
