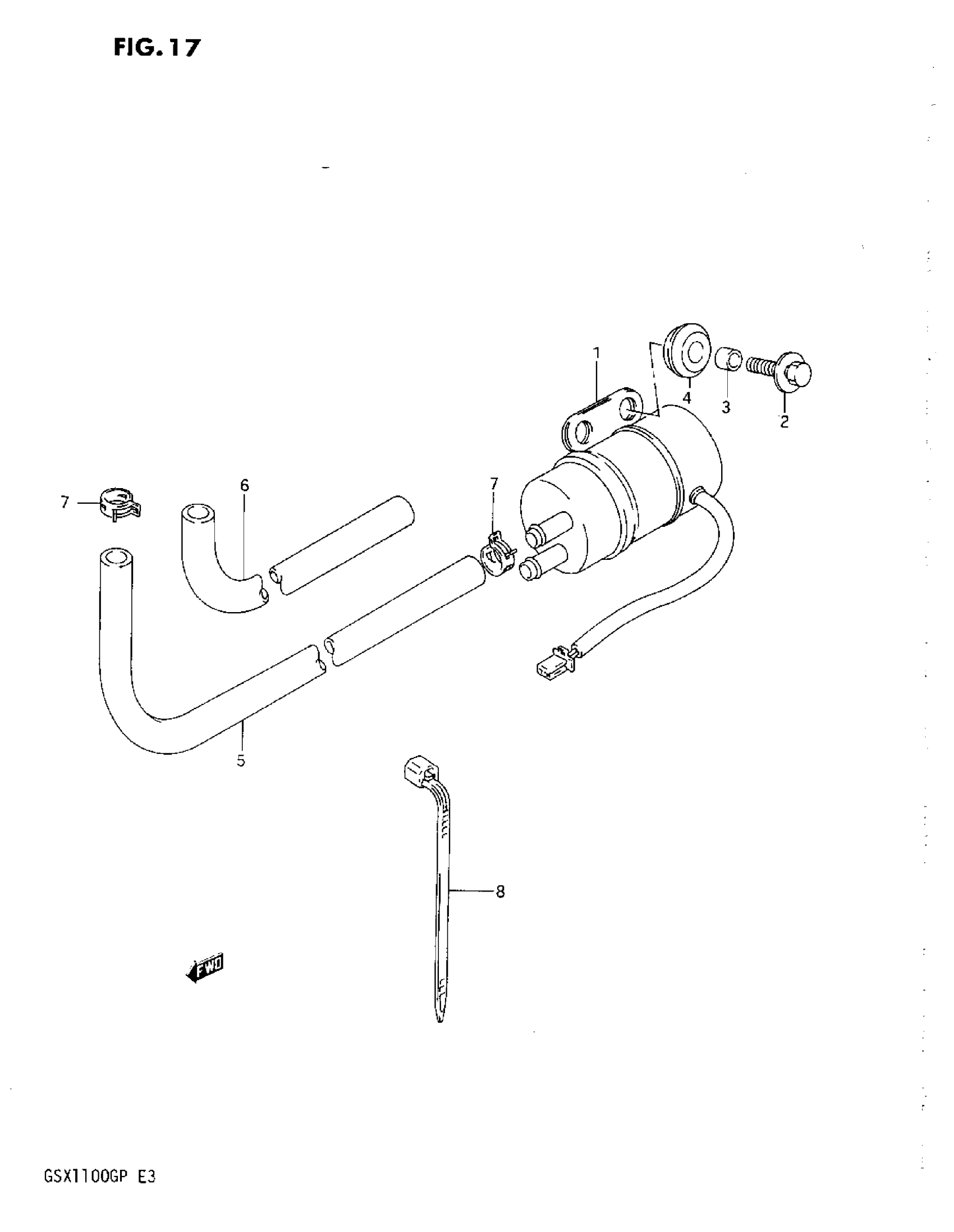

Suzuki GSX1100G (1993) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY, FUEL

15100-26D00

Unavailable

2

BOLT (6X2O)

09116-06010

$2.19

3

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

4

CUSHION This part replaces 09320-09026.

09320-09062

$2.00

5

HOSE,FUEL | L:1000->620 This part replaces 09354-70133-00A.

09355-70125-00B

$36.06

6

PROTECTOR (14.5XL5.5X600) | L:600->580

09351-14152-600

$10.62

7

CLIP

09401-12404

$2.34

8

CLAMP (L:125) | MODEL M

09407-14403

$2.26
