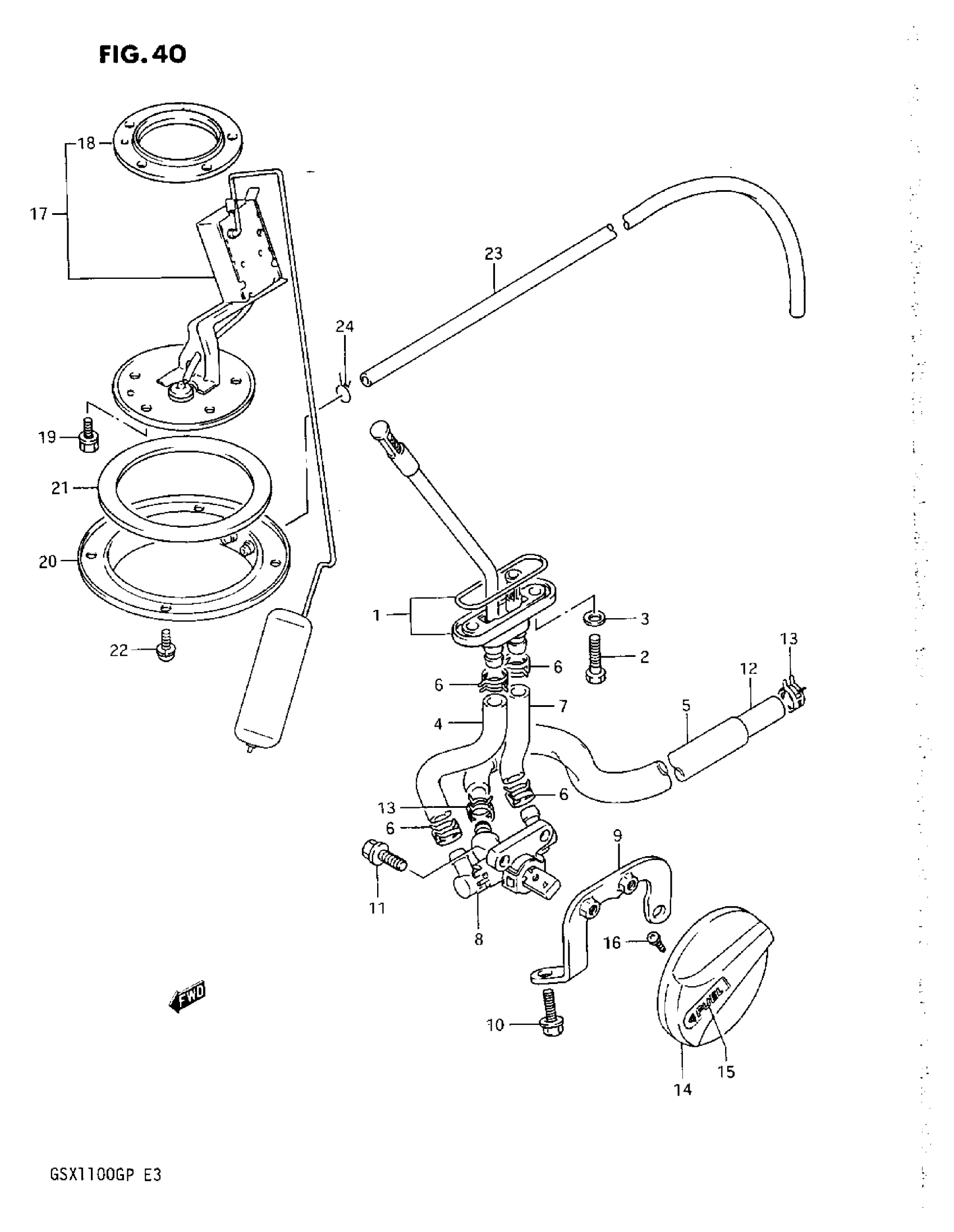

Suzuki GSX1100G (1993) FUEL COCK Diagram

#

Description
Price

1

FILTER UNIT, FUEL

44330-26D00

Unavailable

2

BOLT This part replaces 09128-06006.

09128-06057

$1.65

3

GASKET

09168-06026

$3.10

4

HOSE, FUEL "ON"

44431-26D00

Unavailable

5

PROTECTOR, FUEL HOSE (L:600->350)

09351-14152-600

$10.62

6

CLIP This part replaces 09401-12406.

09401-11415

$2.23

7

HOSE, FUEL "RES" | MODEL M This part replaces 44432-26D00.

44432-26D01

Unavailable

7

HOSE, FUEL "RES" | MODEL N/P

44432-26D01

Unavailable

8

COCK ASSY,FUEL This part replaces 44300-26D00.

44300-26D02

Unavailable

9

PLATE, FUEL COCK

44371-26D00

Unavailable

10

BOLT This part replaces 01214-06205.

01560-0620A

$2.72

11

BOLT This part replaces 01517-06167.

01550-06167

$2.30

12

HOSE,6.5X11.5X6 This part replaces 09354-70123-600.

44421-12FR0

$12.33

13

CLIP This part replaces 09401-12406.

09401-11415

$2.23

14

LEVER,FUEL COCK This part replaces 44342-26D00-20F.

44342-26D00

Unavailable

14

LEVER, FUEL COCK (BLACK) | MODEL M This part replaces 44342-26D00-0FJ.

44342-26D00-33J

Unavailable

14

LEVER,FUEL COCK | MODEL M This part replaces 44342-26D00-1AC.

44342-26D00

Unavailable

14

LEVER, FUEL COCK (BLACK) | MODEL M

44342-26D00-33J

Unavailable

14

LEVER, FUEL COCK (BLACK) | MODEL N/P

44342-26D00-13Z

$171.25

15

LABEL, LEVER

44395-45C00

Unavailable

16

SCREW This part replaces 02112-33128.

02112-3312A

$2.30

17

GUAGE ASSY, FUEL LEVEL

34810-26D00

Unavailable

18

GASKET

34825-45100

$5.80

19

BOLT This part replaces 01134-05106.

01570-0510B

$2.53

20

PLATE, FUEL DRAIN

34885-40A00

Unavailable

21

GASKET FUEL DRA This part replaces 34888-40A00.

34888-40A01

$10.80

22

SCREW This part replaces 02112-35086.

02112-3508B

$2.35

23

HOSE This part replaces 09352-50823-00A.

09352-50005-00B

$13.93

24

CLIP

09401-08402

$1.49
