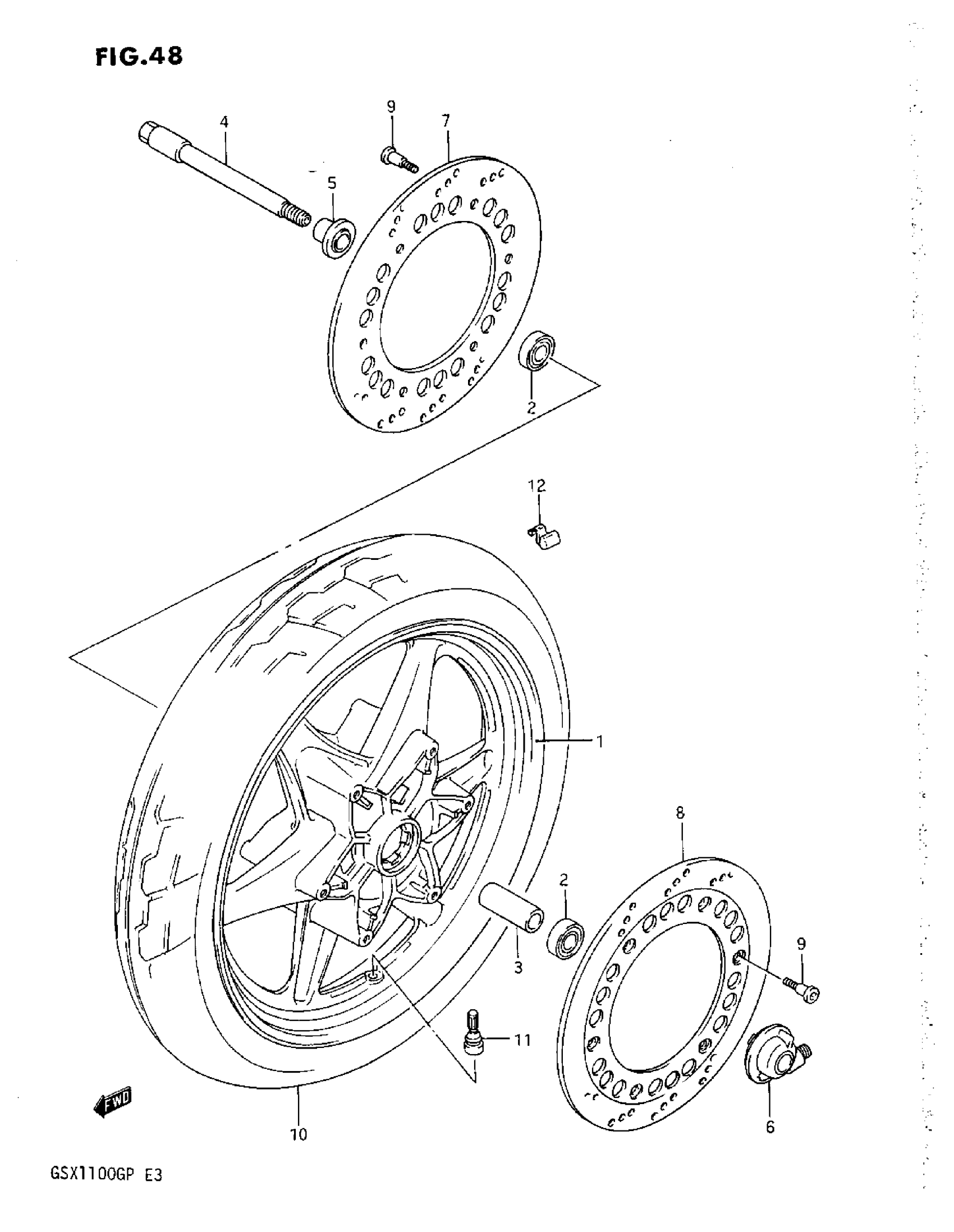

Suzuki GSX1100G (1993) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54111-26D00-12Z.

54111-26D01-12Z

Unavailable

2

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

3

SPACER

09180-17069

$23.93

4

AXLE, FRONT

54711-32C00

Unavailable

5

SPACER COMP,FRO This part replaces 54740-26D00.

54740-26D0V

Unavailable

6

BOX ASSY, SPEEDOMETER GEAR

54600-06B13

Unavailable

7

DISC, FRONT BRAKE RH

59211-26D00

Unavailable

8

DISC, FRONT BRAKE LH

59221-26D00

Unavailable

9

BOLT (8X33) This part replaces 09106-08082.

09106-08148

$4.80

10

TIRE, FRONT (110/80 V18) (DUNLOP)

55110-26D00

Unavailable

11

VALVE ASSY

43130-24A00

$8.85

12

BALANCER (10G) | 0-3, U.N.

55411-00A00

$1.49

12

BALANCER, WHEEL NO.2 | 0-3, U.N. This part replaces 55412-00A00.

55412-17G00

$7.05

12

BALANCER (30G) | 0-3, U.N. This part replaces 55413-00A00.

55413-00A01

Unavailable
