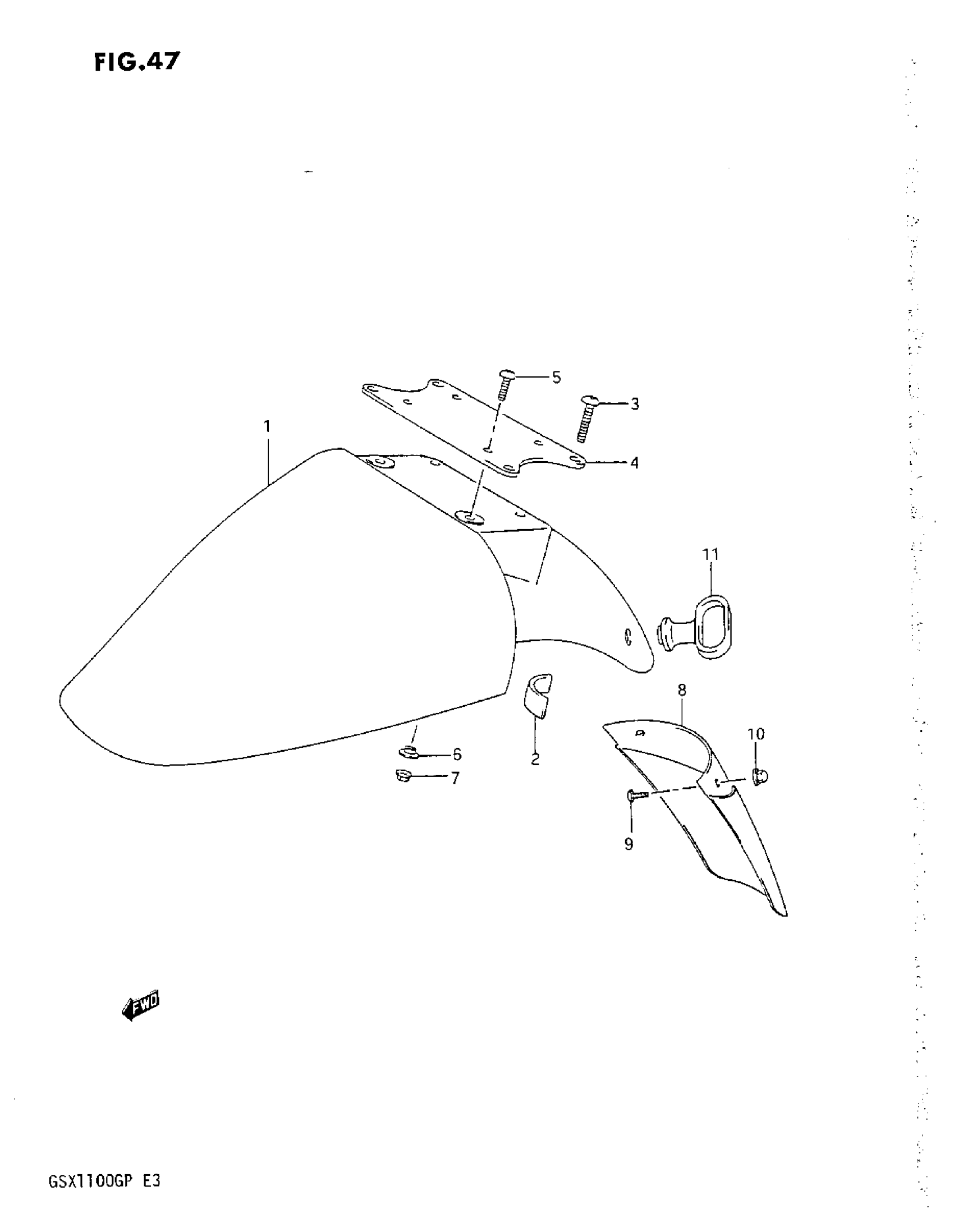

Suzuki GSX1100G (1993) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (SILVER) | MODEL M This part replaces 53111-32C41-0FJ.

53111-32C41-0FP

Unavailable

1

FENDER, FRONT (BLACK) | MODEL M This part replaces 53111-32C41-1AC.

53111-32C41-33J

Unavailable

1

FENDER, FRONT (MAROON) | MODEL M/N/P

53111-32C41-20F

Unavailable

1

FENDER, FRONT (BLACK) | MODEL M

53111-32C41-33J

Unavailable

1

FENDER, FRONT (BLACK) | MODEL N/P This part replaces 53111-32C41-13Z.

53111-32C41-33J

Unavailable

2

CUSHION,FR This part replaces 94583-05C00.

46312-31D11

$5.02

3

SCREW, FENDER

09139-06027

$2.16

4

BRACE, FRONT FENDER

53114-26D00

Unavailable

5

SCREW, BRACE

09139-05042

$2.90

6

WASHER

09169-05009

$2.47

7

NUT This part replaces 08319-31056.

08319-3105B

$3.55

8

EXTENSION, FRONT FENDER

53311-45C10

Unavailable

9

SCREW This part replaces 02142-05128.

02142-05127

$1.97

10

NUT This part replaces 08313-21055.

08313-2005A

$2.42

11

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
