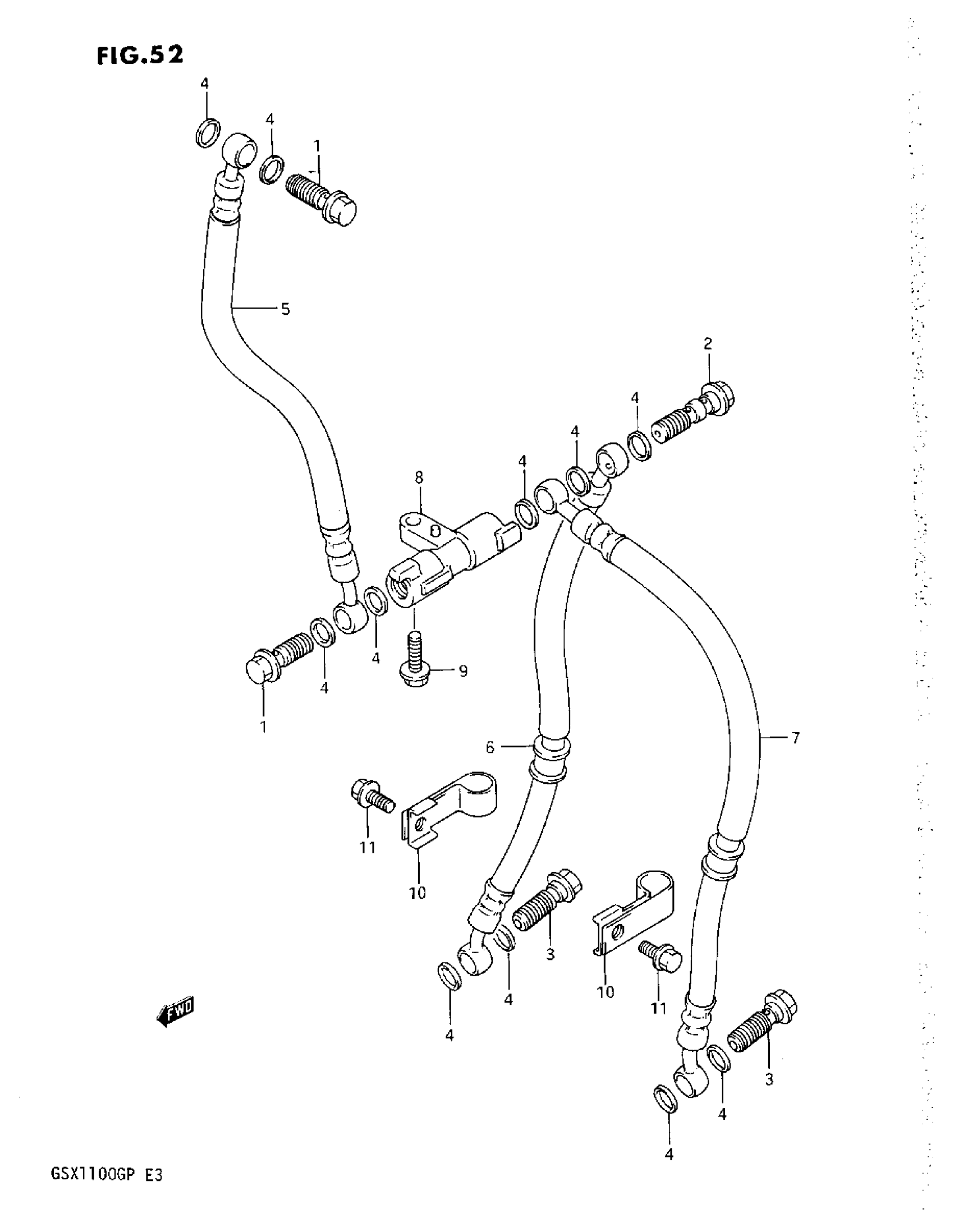

Suzuki GSX1100G (1993) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOLT

09360-10017

$3.42

2

BOLT

09360-10018

$6.80

3

UNION This part replaces 09360-10033.

09360-10062

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE, FRONT BRAKE, NO.1

59480-26D10

Unavailable

6

HOSE, FRONT BRAKE, NO.2 RH

59240-26D00

Unavailable

7

HOSE, FRONT BRAKE, NO.2 LH

59440-26D00

Unavailable

8

JOINT, BRAKE HOSE

59491-12C10

Unavailable

9

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

10

CLAMP, HOSE NO.2

59268-01D10

Unavailable

11

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97
