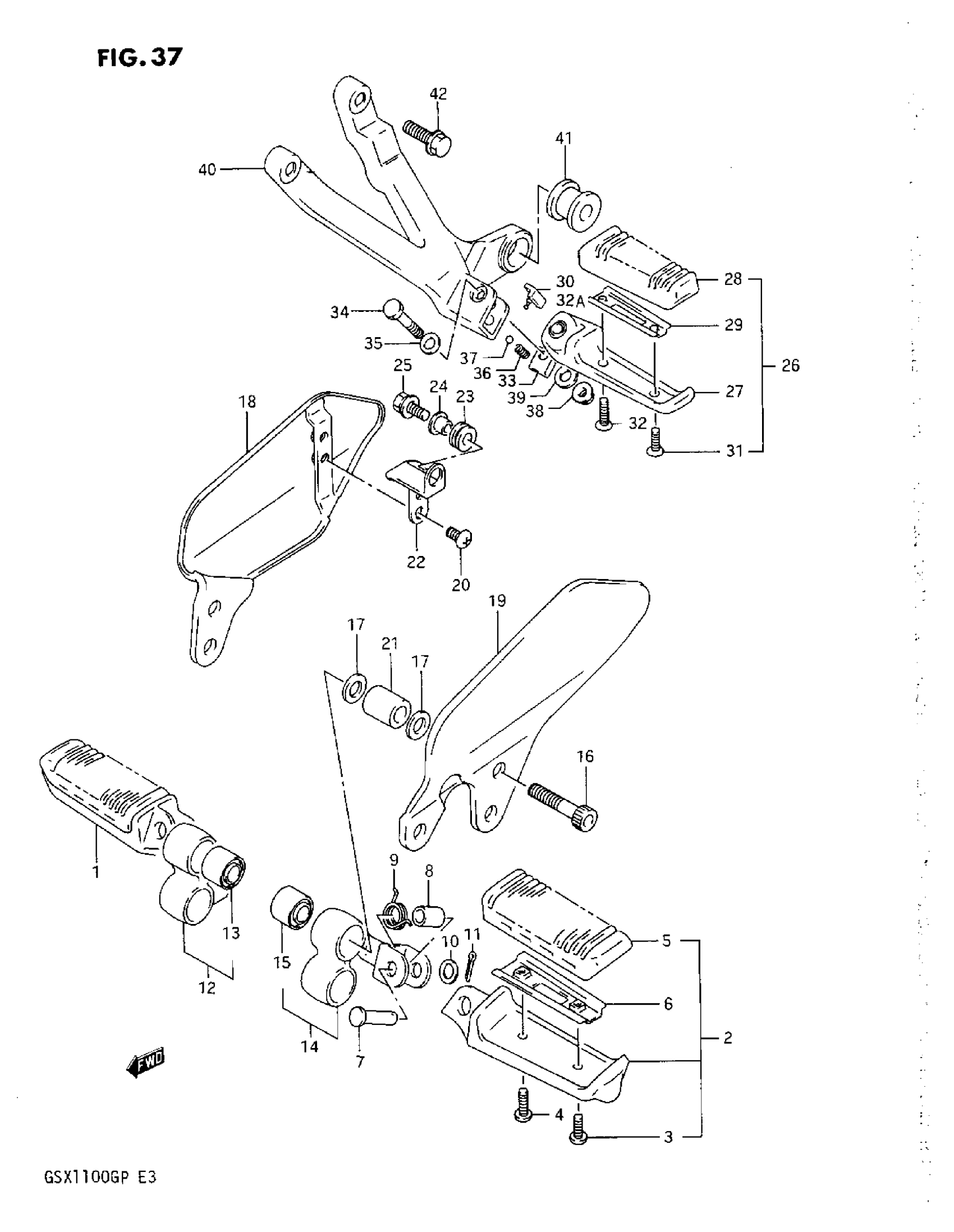

Suzuki GSX1100G (1993) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43501-45C00

Unavailable

2

FOOTREST ASSY, FRONT LH

43502-45C00

Unavailable

3

SCREW This part replaces 02112-05128.

02112-05127

$1.97

4

SCREW This part replaces 02112-05168.

02112-05167

$1.97

5

RUBBER,FR FOOTR This part replaces 43551-31301.

43550-31300

$25.83

6

PLATE, FRONT FOOTREST RUBBER

43580-33301

Unavailable

7

PIN

09200-08057

$2.36

8

SPACER

09180-08149

$5.58

9

SPRING

09448-18022

$3.79

10

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

NO DESCRIPTION AVAILABLE This part replaces 43530-26D00.

43530-26D01

Unavailable

13

BUSH

09319-10047

$9.50

14

NO DESCRIPTION AVAILABLE This part replaces 43540-26D00.

43540-26D01

Unavailable

15

BUSH

09319-10047

$9.50

16

NO DESCRIPTION AVAILABLE This part replaces 07110-10457.

07130-10457

Unavailable

17

WASHER, REAR This part replaces 09160-10057.

09160-10142

$2.34

18

FOOT GUARD, RH | MODEL M/N This part replaces 43560-26D00.

43560-26D01

Unavailable

18

FOOT GUARD, RH | MODEL P

43560-26D01

Unavailable

19

FOOT GUARD, LH

43570-26D00

Unavailable

20

SCREW, PLATE | MODEL M

09125-06071

Unavailable

20

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 02142-06088.

02142-06087

Unavailable

21

SPACER, LH

43597-26D00

Unavailable

22

PLATE, GUARD

43581-26D00

Unavailable

23

CUSHION (8.4X18X6) This part replaces 09320-08051.

09320-08066

$8.24

24

WASHER

09169-06063

$3.37

25

BOLT (6X20) | MODEL M This part replaces 09116-06065.

09116-06010

$2.19

25

BOLT | MODEL N/P This part replaces 09116-06111.

09116-06152

$2.36

26

FOOTREST ASSY, PILLION RH | MODEL M This part replaces 43600-26D00.

43600-26D01

Unavailable

26

FOOTREST ASSY, PILLION RH | MODEL N/P

43600-26D01

Unavailable

26

FOOTREST ASSY, PILLION LH | MODEL M This part replaces 43700-26D00.

43700-26D01

Unavailable

26

FOOTREST ASSY, PILLION LH | MODEL N/P

43700-26D01

Unavailable

27

FOOTREST ASSY, PILLION RH This part replaces 43610-26D00.

43600-26D01

Unavailable

27

FOOTREST ASSY, PILLION LH This part replaces 43710-26D00.

43700-26D01

Unavailable

28

RUBBER, PILLION FOOTREST

43612-31300

$13.05

29

PLATE, RUBBER STOP

43632-45501

$3.70

30

CUSHION | MODEL M This part replaces 43542-26D00.

43542-26D01

Unavailable

31

SCREW This part replaces 02132-05127.

02122-05127

$1.93

32

SCREW This part replaces 02132-05167.

02122-05167

$2.47

32

CUSHION | MODEL N/P

43542-26D01

Unavailable

33

PLATE, SPRING STOP RH

43635-45C00

Unavailable

33

PLATE, SPRING STOP LH

43735-45C00

Unavailable

34

BOLT

09111-06048

Unavailable

35

SHIM

09181-08004

Unavailable

36

SPRING

09440-05028

Unavailable

37

STEEL BALL

06111-08003

$1.49

38

NUT

08319-31067

$2.03

39

WASHER This part replaces 08322-11088.

08322-01087

$2.13

40

BRACKET, PILLION RH

43811-26D00

Unavailable

40

BRACKET, PILLION LH

43821-26D00

Unavailable

41

BUSH

09319-10033

$6.83

42

BOLT | MODEL M This part replaces 07110-08257.

07130-08257

$3.43

42

BOLT | MODEL N/P This part replaces 01517-08258.

01550-08257

$2.81
