Description

Price

1

CYLINDER

11210-26D01

Unavailable

1

CYLINDER | CALIFORNIA ONLY

11210-26D11

Unavailable

2

STUD BOLT (10X164) This part replaces 09108-10081.

09108-10145

$13.28

3

STUD BOLT (10X157)

09108-10099

$15.90

4

STUD BOLT (L:168) This part replaces 09108-10108.

09108-10112

$12.49

5

GASKET, CYLINDER This part replaces 11241-48B00.

11241-32F00

$23.32

6

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

7

NUT This part replaces 08316-16064.

08316-1006B

$2.50

8

PIN This part replaces 09206-13006.

09206-13017

$7.61

9

HOSE, OIL HEAD COOLER | MODEL M/N This part replaces 11328-48B02.

11328-48B04

$307.15

9

HOSE, OIL HEAD COOLER | MODEL P This part replaces 11328-48B03.

11328-48B04

$307.15

10

O-RING

09280-14011

$4.77

11

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

12

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

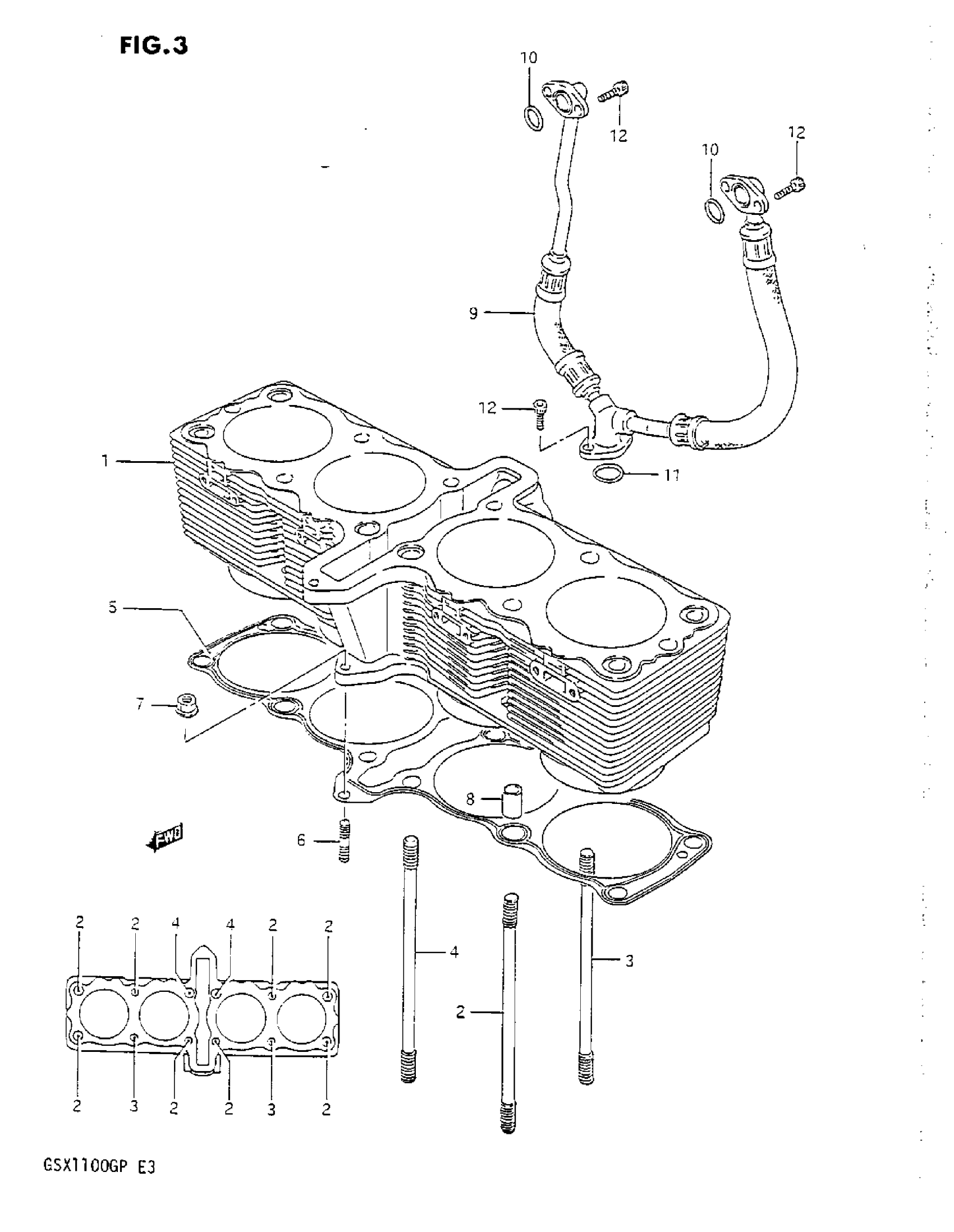

Suzuki GSX1100G (1993) CYLINDER Diagram
