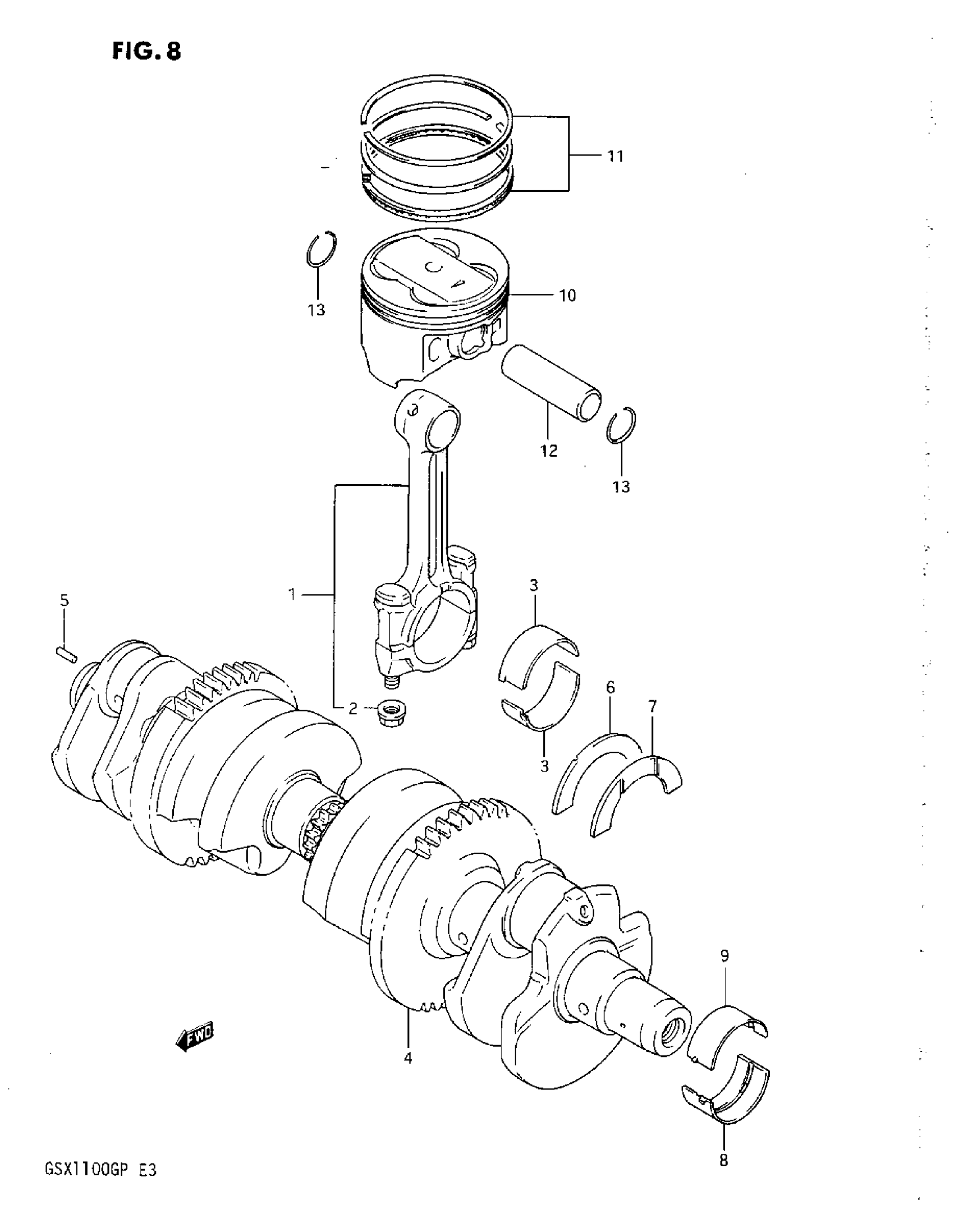

Suzuki GSX1100G (1993) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING This part replaces 12160-40C02.

12160-40C03

Unavailable

2

NUT

09159-09001

$4.68

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-48B00-0A0.

12164-46E01-0A0

$16.80

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-48B00-0B0.

12164-46E01-0B0

$16.80

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-48B00-0C0.

12164-46E01-0C0

$17.30

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-48B00-0D0.

12164-46E01-0D0

$17.30

4

CRANKSHAFT SET

12000-26810

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, CRANK THRUST (GREEN) | RH

12228-48B00-0E0

$9.34

7

BEARING, CRANK THRUST (RED) | LH

12228-48B00-0C0

$11.35

7

BEARING, CRANK THRUST (GREEN)

12228-48B00-0E0

$9.34

7

BEARING, CRANK THRUST (BLACK)

12228-48B00-0H0

$9.66

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-06B00-0A0

$12.00

8

BEARING, CRANKSHAFT (BLACK)

12229-06B00-0B0

$10.21

8

BEARING, CRANKSHAFT (BROWN)

12229-06B00-0C0

$12.00

8

BEARING, CRANKSHAFT (YELLOW)

12229-06B00-0D0

$12.22

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-06B10-0A0

$12.00

9

BEARING, CRANKSHAFT (BLACK)

12229-06B10-0B0

$10.21

9

BEARING, CRANKSHAFT (BROWN)

12229-06B10-0C0

$10.21

9

BEARING, CRANKSHAFT (YELLOW)

12229-06B10-0D0

$12.45

10

PISTON

12111-48B04-0F0

Unavailable

10

PISTON SET,0S: | OPT This part replaces 12111-48B04-050.

12100-48B00-050

Unavailable

10

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-48B04-100.

12100-48B00-100

Unavailable

11

RING SET, PISTON

12140-48B20

$69.26

11

RING SET, PISTON (OS:0.5) | OPT

12140-48B20-050

Unavailable

11

RING SET, PISTON (OS:1.0) | OPT

12140-48B20-100

Unavailable

12

PIN,PISTON

12151-05A00

$15.61

13

CIRCLIP

09381-20004

$1.65
