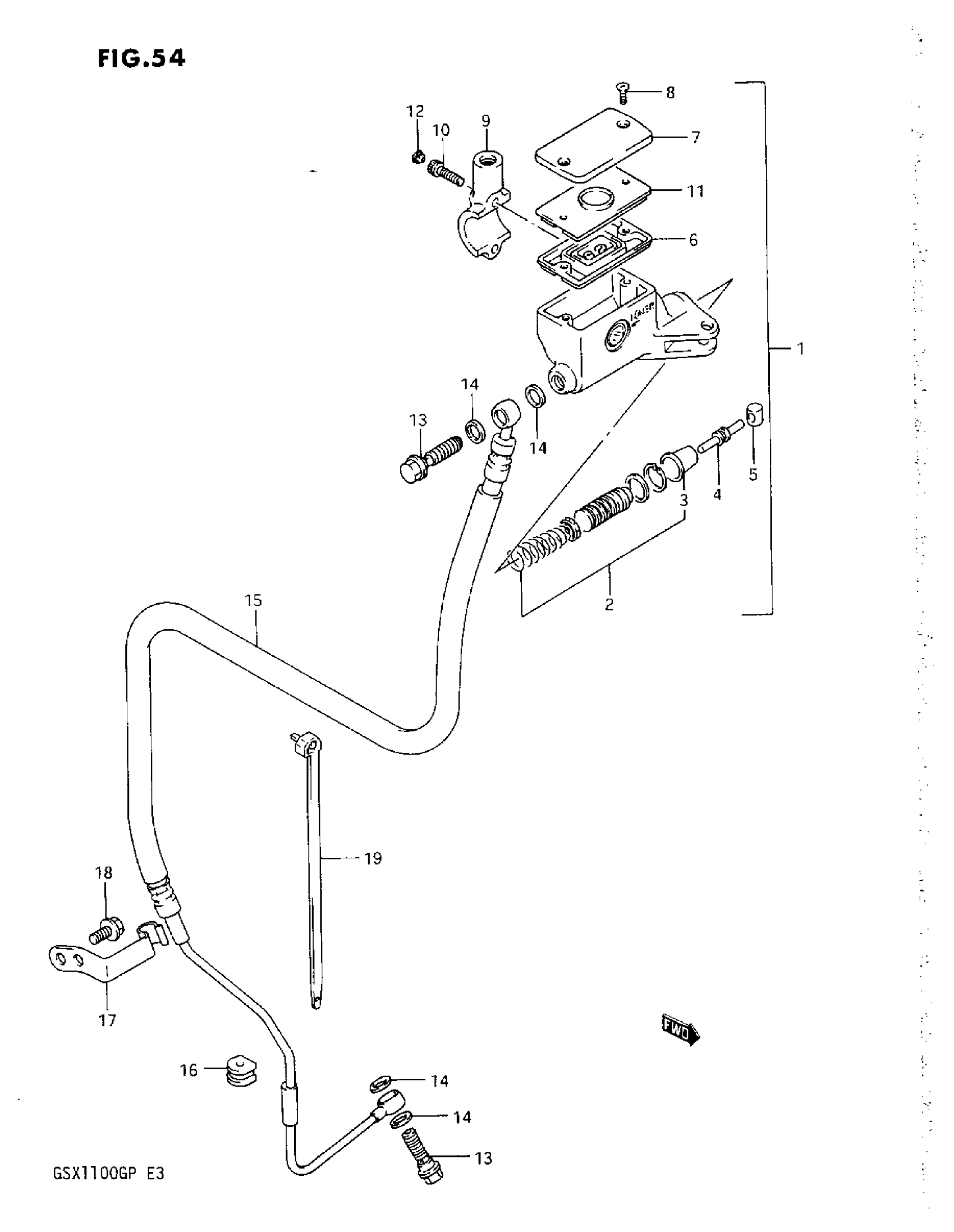

Suzuki GSX1100G (1993) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,C This part replaces 59800-26D00.

59800-26D01

Unavailable

2

PISTON & CUP SET

59800-08810

$39.48

3

BOOT

59666-44300

$5.80

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.84

5

BUSH

59892-08A00

$5.05

6

DIAPHRAGM

59667-49460

$9.78

7

CAP

59669-26D00

Unavailable

8

SCREW This part replaces 59691-38A00.

02122-04127

$1.97

9

HOLDER

59671-26D00

$66.63

10

.BOLT This part replaces 07110-06208.

07130-06207

$3.04

11

PLATE

59668-41C00

$9.32

12

CAP, BOLT

09250-05008

$3.76

13

BOLT

09360-10017

$3.42

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE, CLUTCH | <-59910-26D10

59910-26D11

Unavailable

16

GROMMET, CLUTCH HOSE

59915-26D00

Unavailable

17

GUIDE, CLUTCH HOSE

59921-26D00

Unavailable

18

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

19

CLAMP, HOSE

09407-22404

Unavailable
