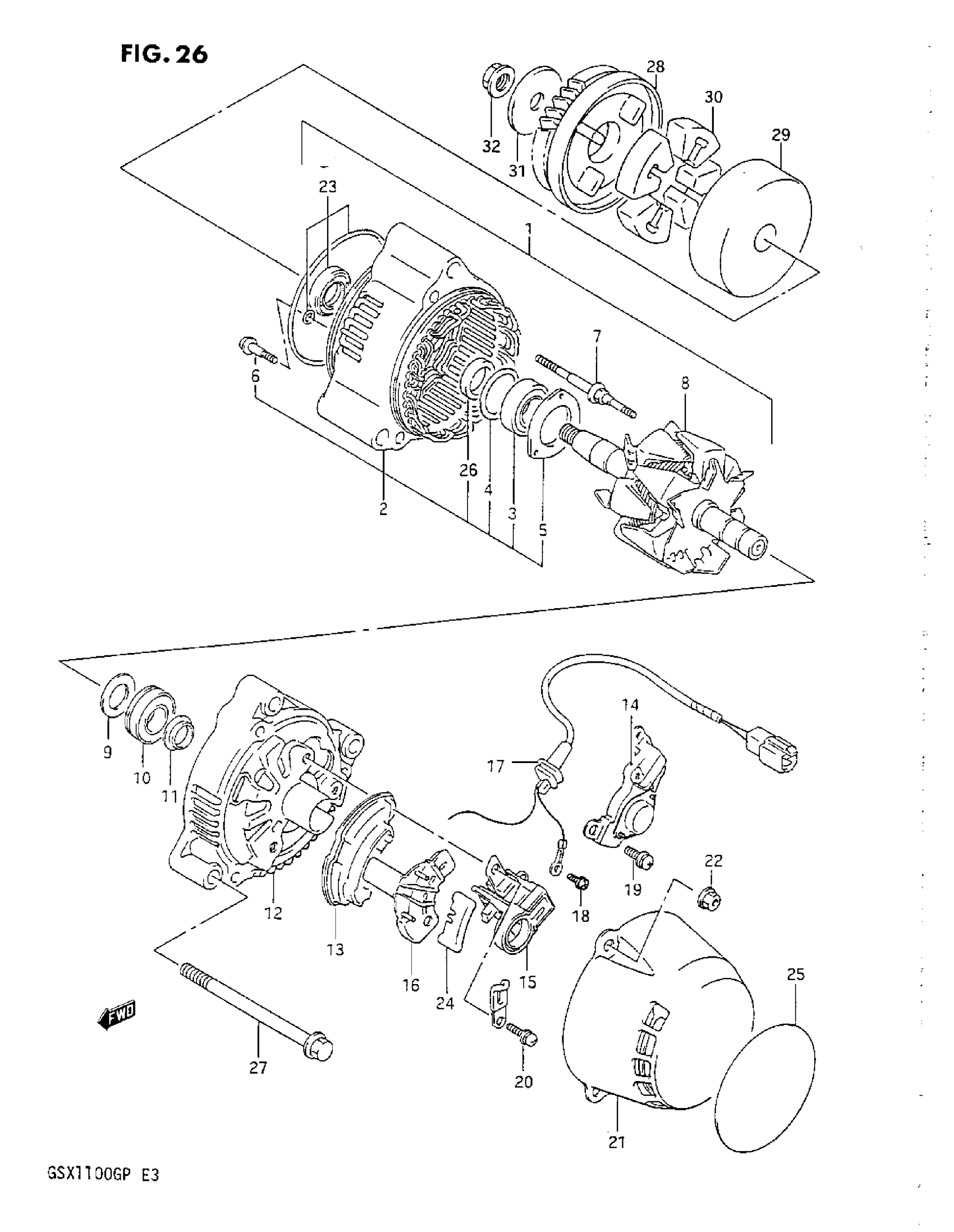

Suzuki GSX1100G (1993) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | MODEL M/N This part replaces 31400-48B03.

31400-17C04

Unavailable

1

ALTERNATOR ASSY | MODEL P This part replaces 31400-19C02.

31400-17C04

Unavailable

2

FRAME, DRIVE END

31580-48B00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

COVER, BEARING

31613-48B00

Unavailable

5

RETAINER, BEARING

31585-48B00

Unavailable

6

SCREW, BEARING RETAINER

31586-48B00

Unavailable

7

STUD BOLT This part replaces 31587-19C00.

31587-85250

Unavailable

8

ROTOR ASSY This part replaces 31710-48B03.

31710-48B04

Unavailable

9

COVER (1)

31613-82610

Unavailable

10

BEARING

31612-48B00

$47.07

11

COVER (2)

31613-27A10

Unavailable

12

FRAME, END

31611-48B00

Unavailable

13

HOLDER, RECTIFIER

31621-27A00

Unavailable

14

REGULATOR

32500-27A00

Unavailable

15

HOLDER, BRUSH

31656-48B00

Unavailable

16

COVER, RECTIFIER This part replaces 31687-27A00.

31687-17E00

$6.88

17

LEAD WIRE

31480-48B00

Unavailable

18

SCREW This part replaces 31516-85250.

02112-0406B

$1.55

19

SCREW (5XL7)

31688-27A00

Unavailable

20

SCREW (5X17) This part replaces 31688-06B00.

31688-27A00

Unavailable

21

COVER

31614-48B00

Unavailable

22

NUT

08316-16055

Unavailable

23

OIL SEAL SET This part replaces 31780-48B00.

31780-27X50

$53.82

24

COVER, RECTIFIER This part replaces 31514-27A00.

31687-17E00

$6.88

25

PLATE, ALTERNATOR ABSORBER | MODEL M This part replaces 31615-17C00.

31615-27E00

Unavailable

26

SPACER

31776-06B00

Unavailable

27

BOLT This part replaces 01517-08908.

01550-08907

$5.18

28

NO DESCRIPTION AVAILABLE This part replaces 22730-26D00.

22730-26D01

Unavailable

29

NO DESCRIPTION AVAILABLE This part replaces 22733-26D00.

22733-26D01

Unavailable

30

DAMPER

21231-26D00

Unavailable

31

WASHER (10X36X2)

09160-10116

Unavailable

32

NUT This part replaces 08316-26106.

08316-2010B

$3.43
