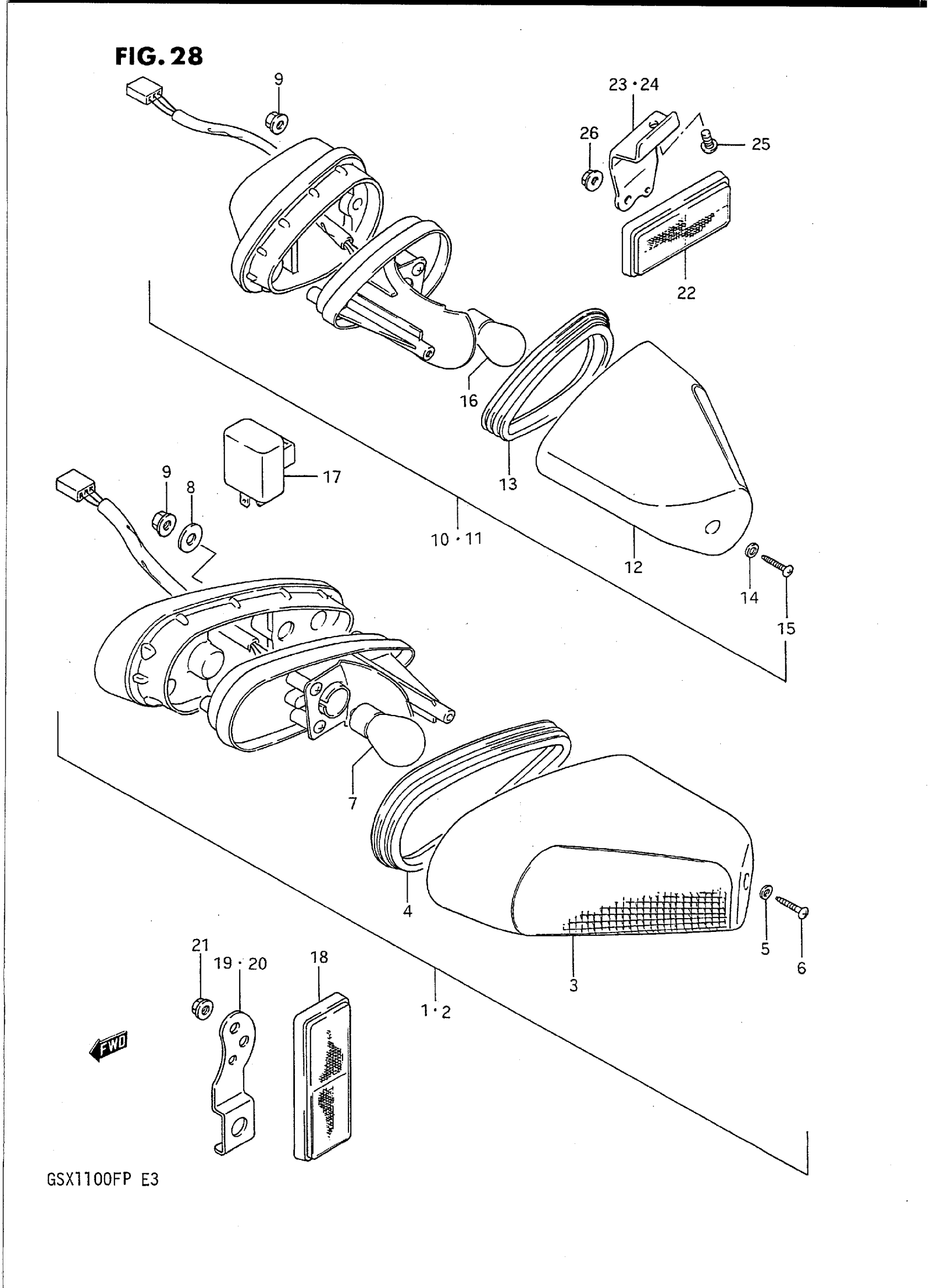

Suzuki GSX1100FP (1993) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL

35601-48B31-291

Unavailable

2

LAMP ASSY, FRONT TURN SIGNAL | Includes Item(s) 3 - 7

35602-48B31-291

Unavailable

3

LENS

35612-48B20-291

Unavailable

4

GASKET

35643-48B20

Unavailable

5

GASKET

35627-43010

$2.28

6

SCREW This part replaces 03211-04165.

03211-0416A

$1.49

7

BULB (12V,21/5W) This part replaces 09471-12046.

09471-12128

$6.73

8

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

9

NUT This part replaces 08316-16064.

08316-1006B

$2.50

10

LAMP ASSY, REAR TURN SIGNAL

35603-48B30-291

Unavailable

11

LAMP ASSY, REAR TURN SIGNAL | Includes Item(s) 12 - 16

35604-48B30-291

Unavailable

12

LENS

35652-48B20-291

Unavailable

13

GASKET

35643-48B20

Unavailable

14

GASKET

35627-43010

$2.28

15

SCREW This part replaces 03211-04165.

03211-0416A

$1.49

16

BULB (12V,21W)

09471-12045

$3.27

17

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$80.15

18

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

19

BRACKET, FRONT SIDE RH

35956-48B10

Unavailable

20

BRACKET, FRONT SIDE LH

35957-48B10

Unavailable

21

NUT

08316-16055

Unavailable

22

REFLEX REFLECTOR, REAR SIDE

35970-00A10

Unavailable

23

BRACKET, REAR SIDE RH

35975-48B10

Unavailable

24

BRACKET, REAR SIDE LH

35976-48B10

Unavailable

25

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

26

NUT

08316-16055

Unavailable
