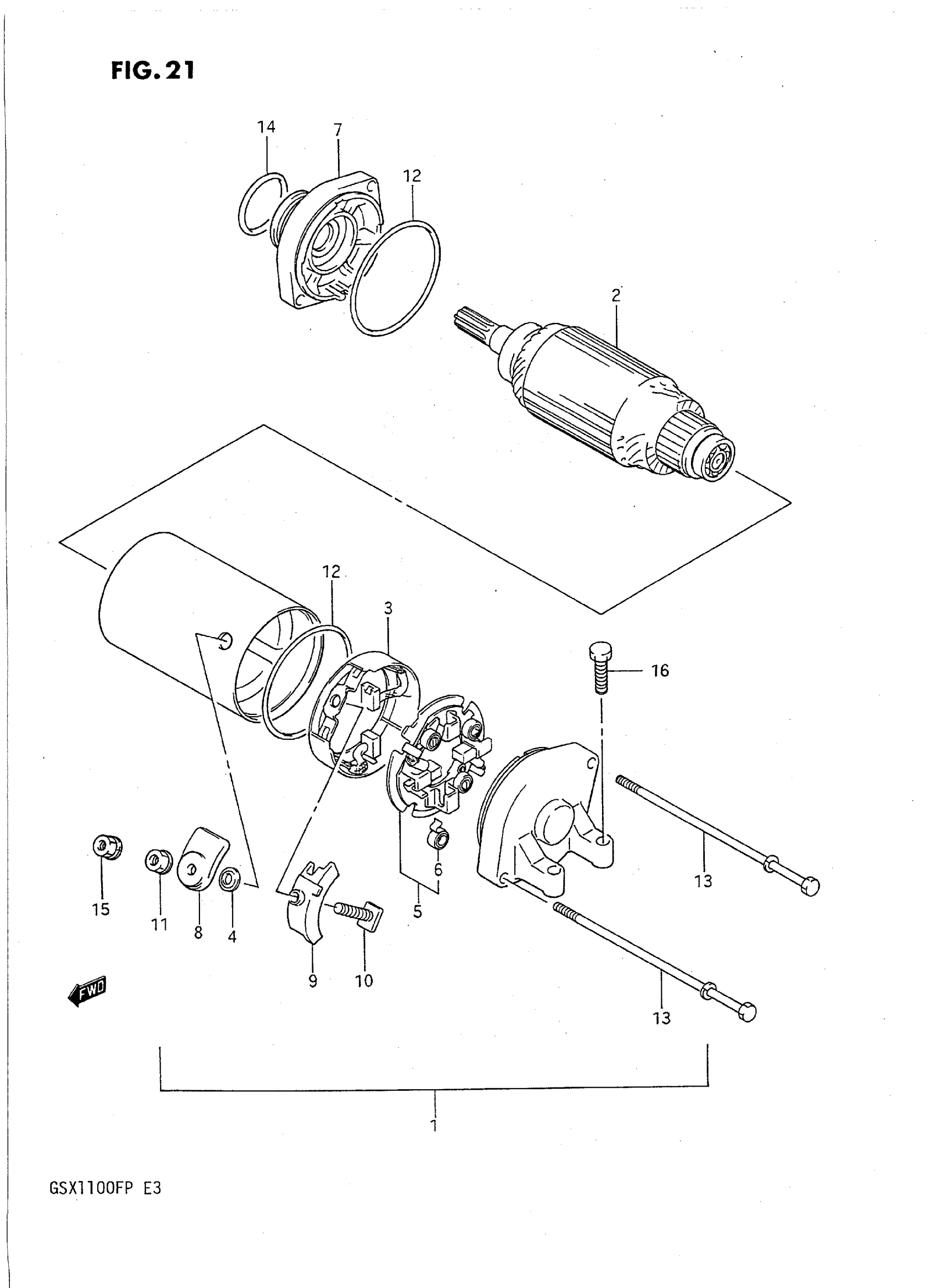

Suzuki GSX1100FP (1993) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING (NA) | BOLT,THROUGH:M5->31100-48B01-H17 This part replaces 31100-48B00.

31100-48B01-H17

Unavailable

1

MOTOR ASSY, STARTING (NA) | BOLT,THROUGH:M6; Includes Item(s) 2 - 14

31100-48B01-H17

Unavailable

2

ARMATURE (NA)

31310-48B01-H17

Unavailable

3

BRUSH TERMINAL SET (+)

31131-48B00

Unavailable

4

GASKET

31143-48B00

Unavailable

5

BRUSH HOLDER SET (-)

31132-48B00

Unavailable

6

SPRING, BRUSH

31135-65010

$4.52

7

BRACKET SET | M5 This part replaces 31150-48B00.

31150-48B10

Unavailable

7

BRACKET SET | M6

31150-48B10

Unavailable

8

BUSHING

31172-48B10

Unavailable

9

BUSHING

31172-48B20

Unavailable

10

BOLT

31130-48B00

Unavailable

11

NUT

31145-48B00

Unavailable

12

O RING

31264-44110

$11.87

13

BOLT | M5

31281-48B01

Unavailable

13

BOLT | M6

31281-48B10

Unavailable

14

O RING

31156-48B00

$12.02

15

NUT This part replaces 08361-35066.

08361-3506A

$1.80

16

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47
