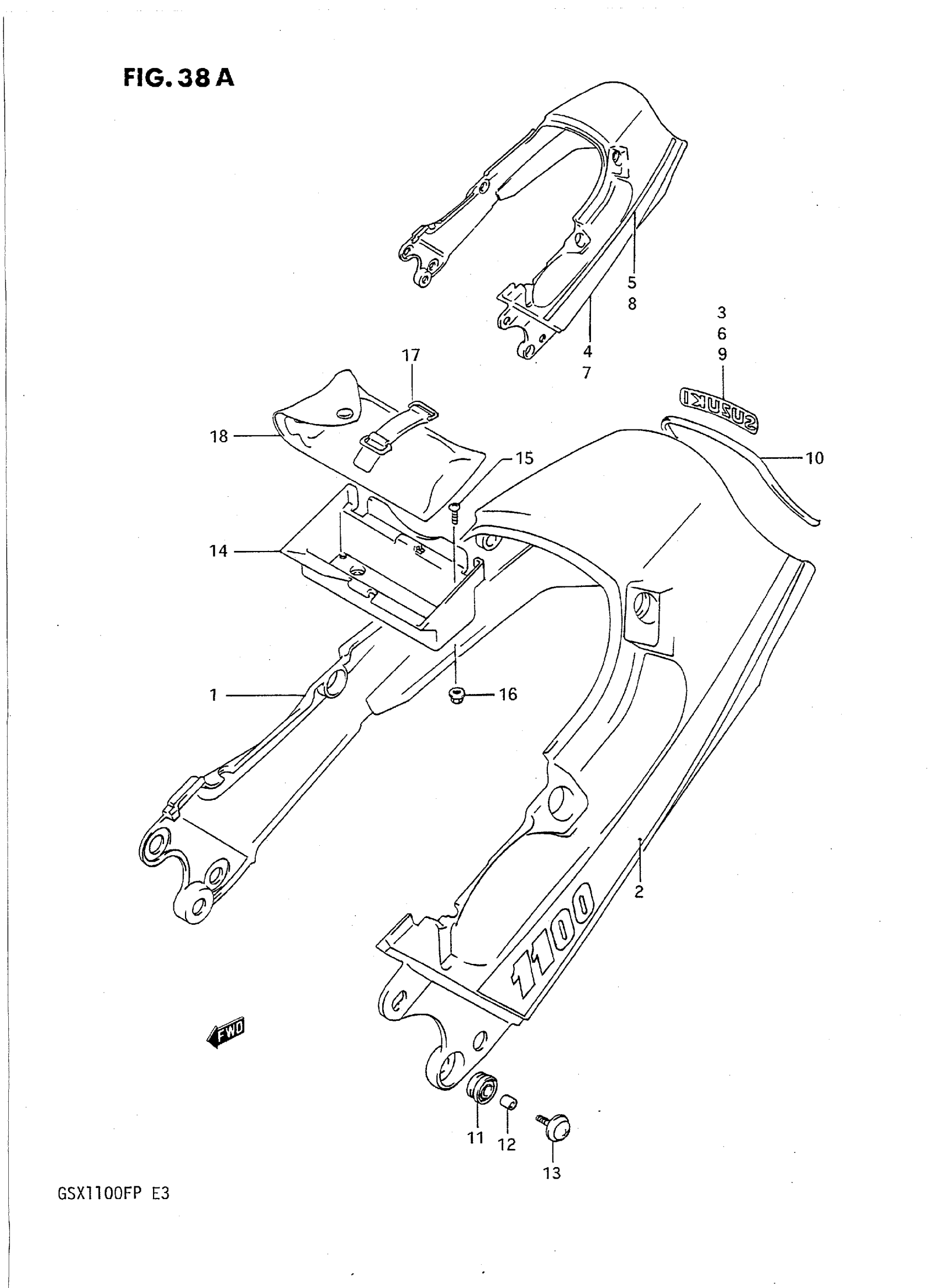

Suzuki GSX1100FP (1993) SEAT TAIL COVER (MODEL M/N/P) Diagram

#

Description
Price

1

COVER SET, SEAT TAIL (RED) | MODEL M; Includes Item(s) 2 - 3

45501-48810-19A

Unavailable

2

TAPE SET, SEAT TAIL | MODEL M

68160-48B90-0WT

Unavailable

3

EMBLEM, REAR (SILVER) | MODEL M

68271-34A00-13L

Unavailable

4

COVER SET, SEAT TAIL | MDOEL N; Includes Item(s) 5 - 6

45501-48840-K32

Unavailable

5

TAPE SET, SEAT TAIL | MODEL N

68160-48C10-L22

Unavailable

6

EMBLEM (RED) | MODEL N

68271-34A00-05J

Unavailable

7

COVER SET,SEAT | MODEL P; Includes Item(s) 8 - 9 This part replaces 45501-48840-1GX.

45501-48840-K31

Unavailable

8

TAPE SET, SEAT TAIL | MODEL P

68160-48C10-L21

Unavailable

9

EMBLEM | MODEL P

68271-34A00-23S

Unavailable

10

MOLDING, LICENSE HOLDER This part replaces 45564-48B00.

94635-19C00

$8.53

11

CUSHION, SIDE

47161-48B10

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 09180-06193.

09180-06318

Unavailable

13

SCREW

09136-06109

Unavailable

14

HOLDER, TOOL

47431-48B10

Unavailable

15

SCREW This part replaces 02142-04125.

02142-0412A

$1.50

16

NUT

08316-26046

Unavailable

17

BAND This part replaces 09462-00072.

09462-00094

$3.16

18

TOOL ASSY This part replaces 09800-00351.

09800-21068

Unavailable
