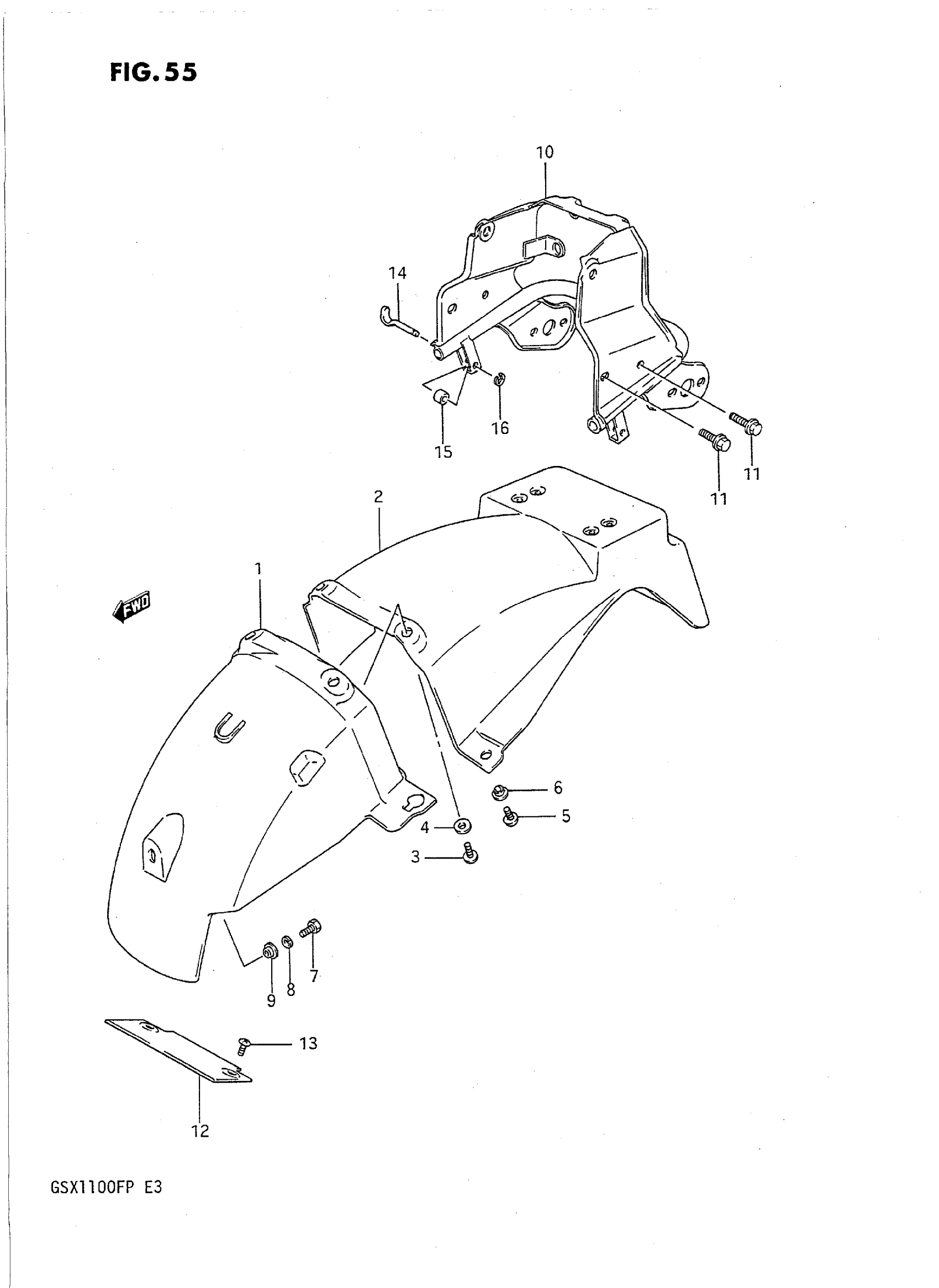

Suzuki GSX1100FP (1993) REAR FENDER Diagram

#

Description
Price

1

BODY, REAR FENDER FRONT

63112-48B00

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 63113-48B00.

63113-48X50

Unavailable

2

BODY, REAR FENDER REAR | MODEL K/L/M/N/P

63113-48B30

Unavailable

3

SCREW | MODEL J/K

02142-06167

$1.49

3

SCREW | MODEL L/M/N/P

09136-06017

$2.59

4

WASHER | MODEL J/K This part replaces 09160-06006.

09160-06084

$1.78

5

SCREW This part replaces 02142-06166.

02142-0616A

$1.49

6

WASHER This part replaces 09169-06045.

09169-06055

$2.27

7

BOLT, CANISTER | MODEL J/K/L This part replaces 01107-06167.

01500-06167

$1.97

7

BOLT | MODEL M/N/P This part replaces 01147-06168.

01570-06167

$3.03

8

LOCK WASHER | MODEL J/K/L This part replaces 08321-31067.

08321-01067

$2.13

9

WASHER This part replaces 09169-06028.

09169-06041

$2.20

10

REINFORCEMENT | MODEL J

63120-48B10

Unavailable

10

REINFORCEMENT | MODEL K/L/M/N/P

63120-48B20

Unavailable

11

BOLT This part replaces 01517-08206.

01550-0820A

$2.23

12

MUD GUARD, FRONT

63411-48B10

Unavailable

13

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

14

ROD, GRIP This part replaces 41625-34A00.

41625-34A01

Unavailable

15

SPACER, ROD

41626-33400

Unavailable

16

E RING This part replaces 08332-11045.

08332-1104A

$1.49
