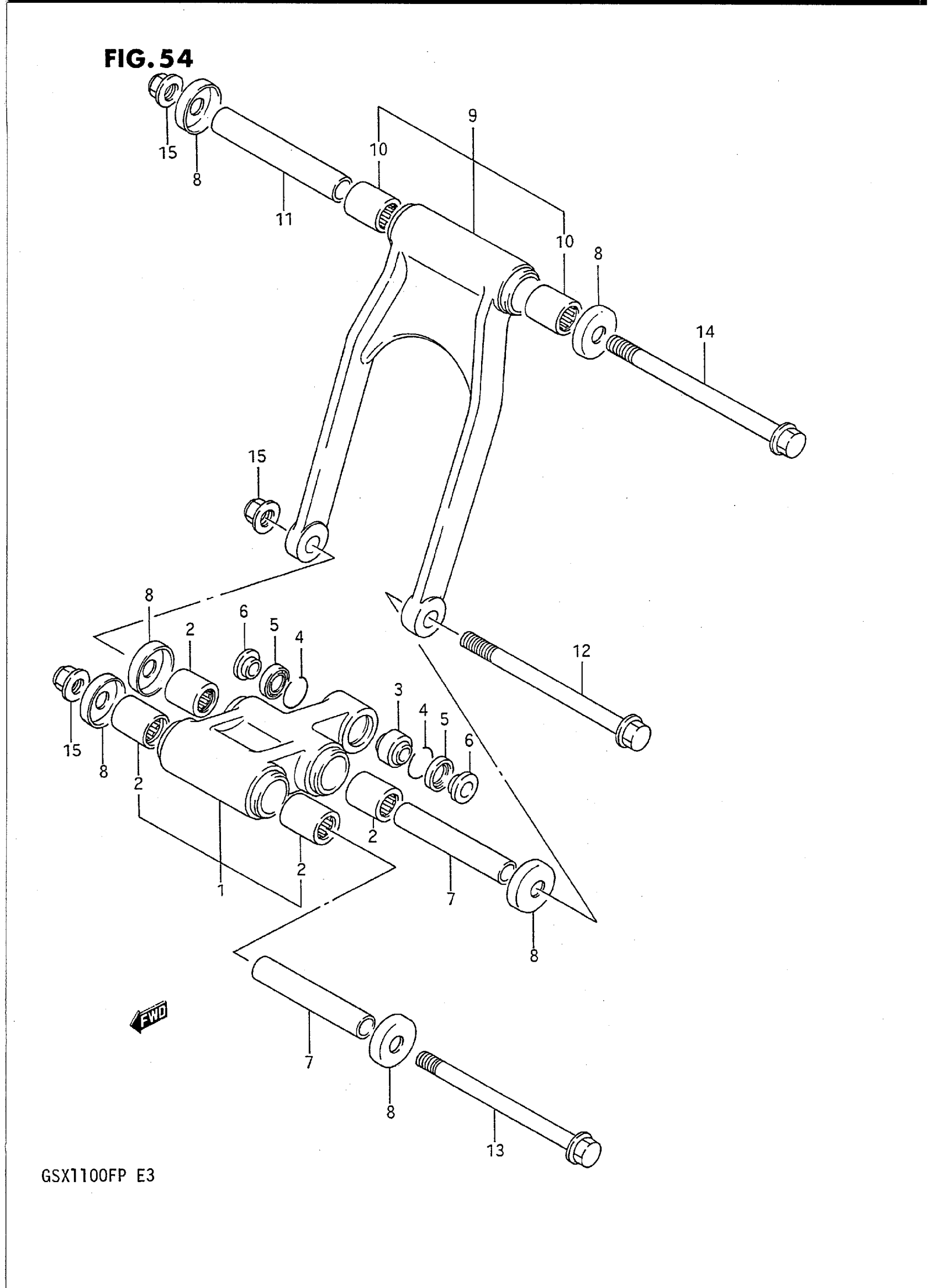

Suzuki GSX1100FP (1993) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-48830

Unavailable

2

BEARING

09263-17038

$25.60

3

BEARING, REAR

62175-00B00

$61.15

4

RING

62657-34A01

$1.99

5

SEAL, DUST REAR

62683-43400

$5.67

6

SPACER, REAR

62684-43401

$10.75

7

SPACER, LEVER

62646-48B10

Unavailable

8

COVER, THRUST

62627-48B00

Unavailable

9

ROD SET, REAR CUSHION | Includes Item(s) 10

62600-48840

Unavailable

10

BEARING

09263-17038

$25.60

11

SPACER, ROD

62317-48B10

Unavailable

12

BOLT, CENTER (12X145)

09103-12030

Unavailable

13

BOLT, FRONT (12X135)

09100-12050

Unavailable

14

BOLT, ROD (12X155)

09103-12031

Unavailable

15

NUT This part replaces 08319-31128.

08319-3112A

$3.76
