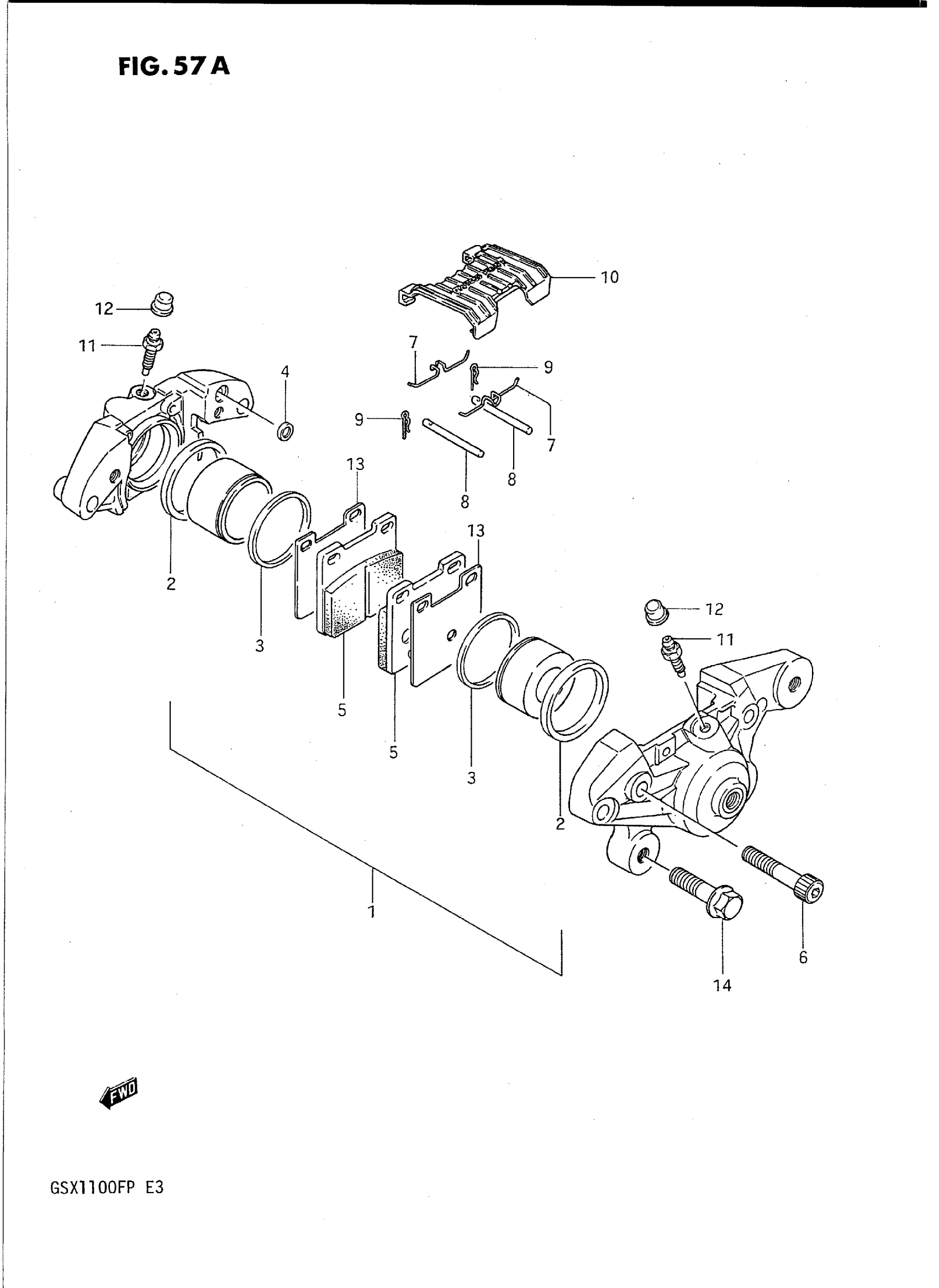

Suzuki GSX1100FP (1993) REAR CALIPERS (MODEL P) Diagram

#

Description
Price

CALIPER ASSY, REAR | Includes Item(s) 1 - 13

69100-48B01

Unavailable

1

PISTON SET This part replaces 69100-32810.

69100-05851

$59.83

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT

69108-32B00

$24.64

4

SEAL

69107-34200

$10.71

5

PAD SET This part replaces 69130-48B00.

69100-48810

Unavailable

6

BOLT, HOUSING

59145-00A00

Unavailable

7

SPRING

59143-16700

$5.80

8

PIN

69141-45000

$5.17

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-00A01

Unavailable

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

59371-33410

$12.57

14

BOLT This part replaces 01517-10305.

01550-1030A

$3.55
