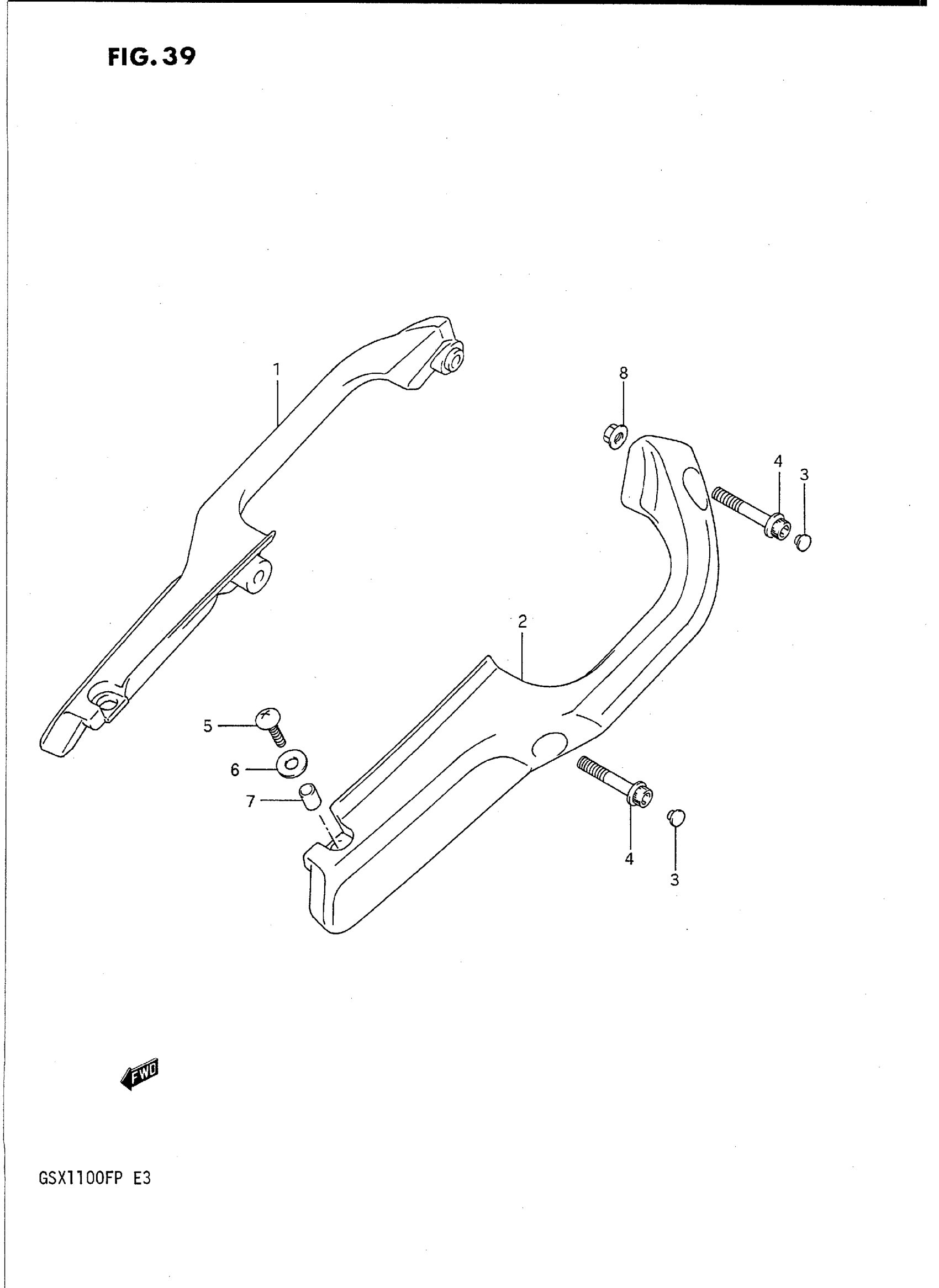

Suzuki GSX1100FP (1993) PILLION RIDER HANDLE Diagram

#

Description

Price

1

HANDLE, PILLION RIDER RH

46211-48B10

Unavailable

2

HANDLE, PILLION RIDER LH

46221-48B10

Unavailable

3

CAP This part replaces 46213-48B00.

09250-06004

$1.49

4

BOLT, MUFFLER SUPPORT This part replaces 07120-08455.

07120-0845B

$3.71

5

SCREW | MODEL J/K/L This part replaces 02142-06205.

02142-0620A

$1.43

5

SCREW, STAND GRIP | MODEL M/N/P

09136-06105

$2.06

6

WASHER, CLUTCH RLSE NO.2 | MODEL J/K/L This part replaces 09160-06069.

09160-06052

$1.49

7

SPACER This part replaces 09180-06154.

09180-06261

$1.97

8

NUT This part replaces 08316-16085.

08316-1008B

$2.74
