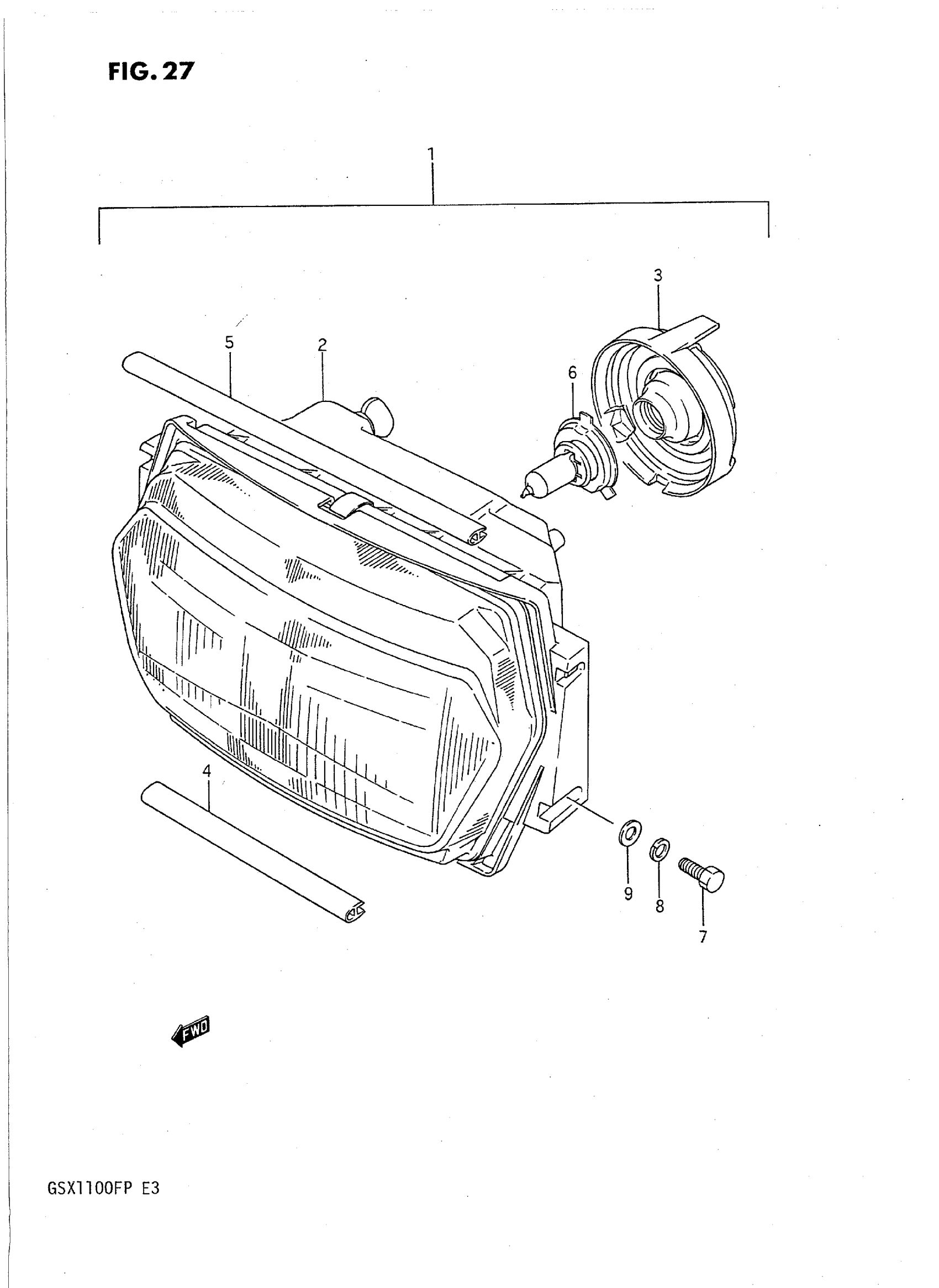

Suzuki GSX1100FP (1993) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 6

35100-48B10

Unavailable

2

UNIT

35121-48B10

Unavailable

3

SOCKET COVER

35173-48B00

Unavailable

4

GASKET

35242-48B00

Unavailable

5

GASKET

35243-48B00

Unavailable

6

BULB (12V,60/55W)

09471-12060

$25.15

7

BOLT | MODEL J/K/L/M This part replaces 01107-06166.

01500-0616A

$1.78

7

BOLT | MODEL N/P This part replaces 01177-06166.

01580-0616A

$2.42

8

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

9

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26
