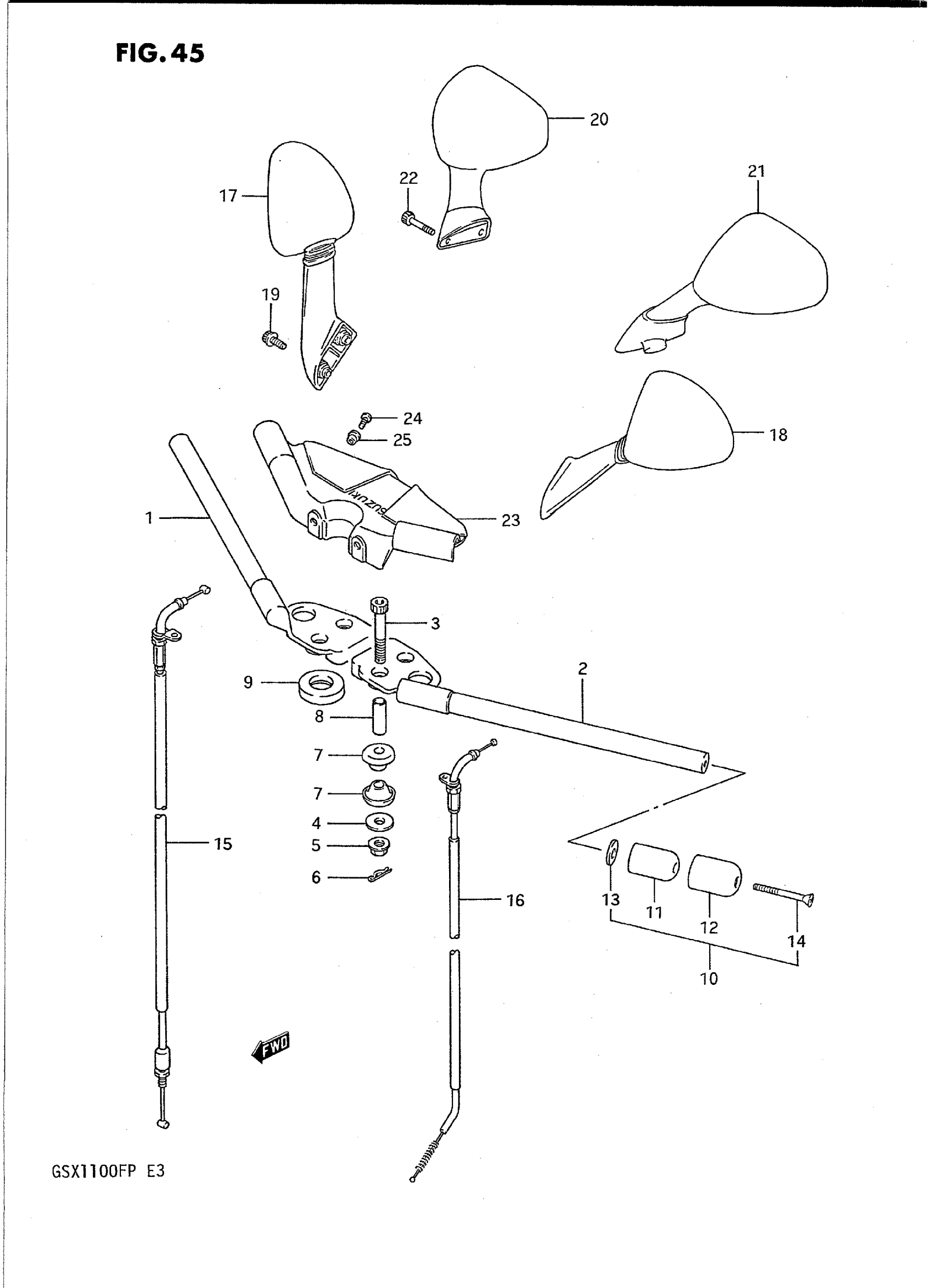

Suzuki GSX1100FP (1993) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR, RH (HOLE 26) | MODEL J This part replaces 56111-48B60.

56111-48B70

Unavailable

1

HANDLE BAR, RH (HOLE 26) | MODEL K/L/M/N/P

56111-48B70

Unavailable

2

HANDLE BAR, LH (HOLE 26) | MODEL J This part replaces 56151-48B60.

56151-48B70

Unavailable

2

HANDLE BAR, LH (HOLE 26) | MODEL K/L/M/N/P

56151-48B70

Unavailable

3

BOLT

09106-10049

Unavailable

4

WASHER This part replaces 09160-10084.

09160-10094

$3.16

5

NUT This part replaces 08319-31105.

08319-3110A

$2.73

6

CLIP

09385-10005

$1.56

7

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

$30.47

8

SPACER, BRACKET

56243-48B31

Unavailable

9

CUSHION, CAP | MODEL J

56559-48B30

Unavailable

9

CUSHION, CAP (HOLE 26) | MODEL K/L/M/N/P

56559-48B70

Unavailable

10

BALANCER SET,HN | Includes Item(s) 11 - 14 This part replaces 56200-48810.

56200-48822

Unavailable

11

BALANCER

56271-00A00

Unavailable

12

CAP

56274-00A11

Unavailable

13

SPACER This part replaces 56275-34400.

56275-34401

$4.02

14

SCREW This part replaces 02132-06605.

02122-0660B

$3.04

15

CABLE ASSY, THROTTLE | MODEL J

58300-48B00

Unavailable

15

CABLE ASSY, THROTTLE | MODEL K/L/M/N/P

58300-48B10

Unavailable

16

CABLE ASSY, STARTER

58410-48B00

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 56500-48B32-24D.

56500-48B52-24D

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 56500-48B32-24V.

56500-48B52-24V

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 56500-48B32-33J.

56500-48B52-33J

Unavailable

18

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 56600-48B32-24D.

56600-48B52-24D

Unavailable

18

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 56600-48B32-24V.

56600-48B52-24V

Unavailable

18

MIRROR ASSY,RR | MODEL K This part replaces 56600-48B32-33J.

56600-48B52-33J

Unavailable

19

BOLT, FRONT | MODEL J/K This part replaces 07120-06205.

07120-0620B

$3.04

20

MIRROR ASSY, REAR VIEW RH | MODEL L

56500-48C01-33J

Unavailable

20

MIRROR ASSY, REAR VIEW RH | MODEL M

56500-48C01-19A

Unavailable

20

MIRROR ASSY, REAR VIEW RH | MODEL N

56500-48C01-20F

Unavailable

20

MIRROR ASSY, REAR VIEW RH | MODEL P

56500-48C01-1HU

Unavailable

21

MIRROR ASSY, REAR VIEW LH | MODEL L

56600-48C01-33J

Unavailable

21

MIRROR ASSY, REAR VIEW LH | MODEL M

56600-48C01-19A

Unavailable

21

MIRROR ASSY, REAR VIEW LH | MODEL N

56600-48C01-20F

Unavailable

21

MIRROR ASSY, REAR VIEW LH | MODEL P

56600-48C01-1HU

Unavailable

22

BOLT, FRONT | MODEL L/M/N/P This part replaces 07120-06205.

07120-0620B

$3.04

23

COVER, HANDLE

56170-48B00

Unavailable

24

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

25

WASHER

09169-05009

$2.47
