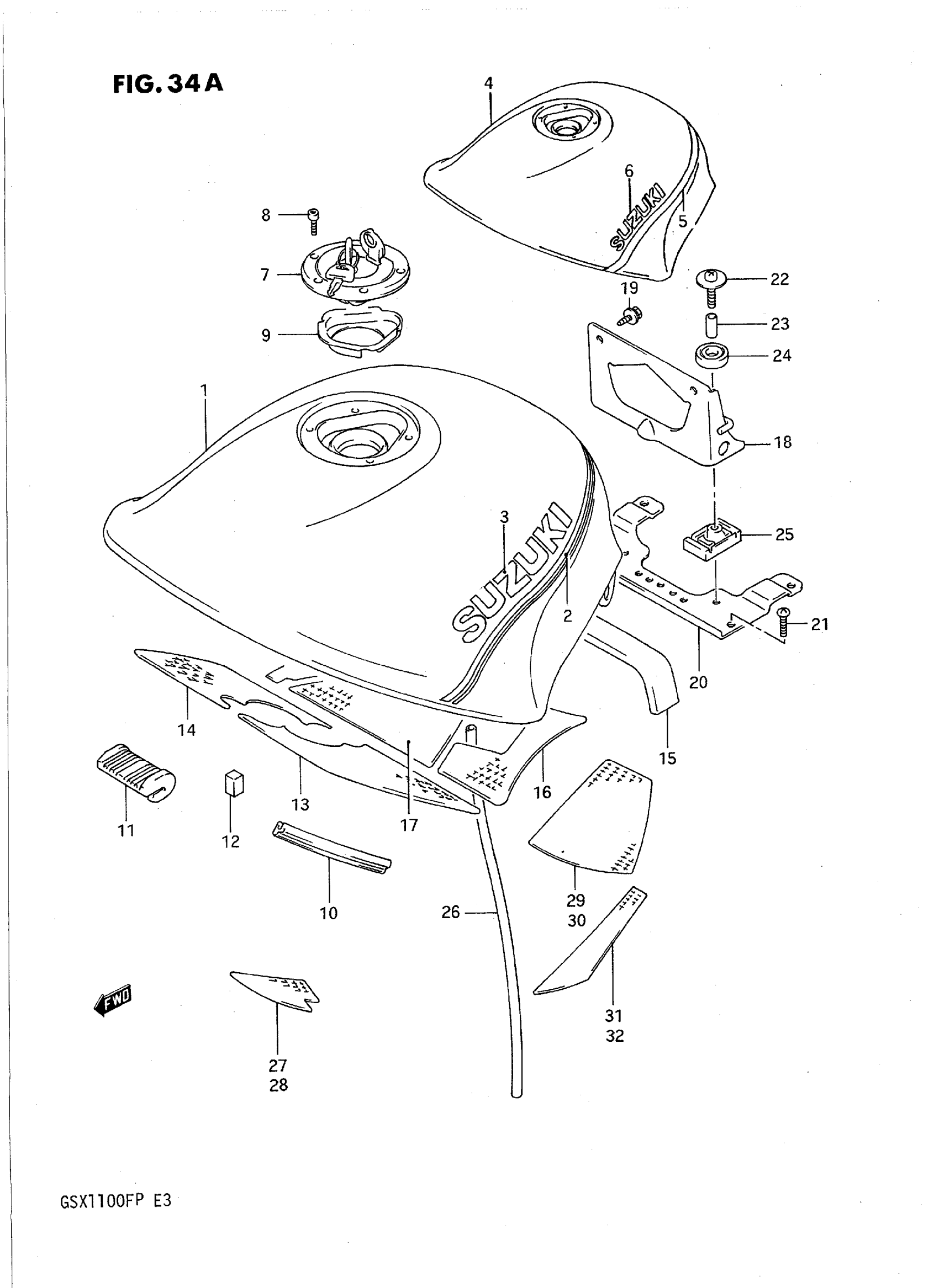

Suzuki GSX1100FP (1993) FUEL TANK (MODEL L/M) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | MODEL L

44100-49C00-33J

Unavailable

1

TANK ASSY, FUEL (BLACK) | CALIFORNIA ONLY,MODEL L; Includes Item(s) 2 - 3

44100-49C50-33J

Unavailable

2

TAPE, FUEL TANK | MODEL L

68115-48B50-67M

Unavailable

3

EMBLEM (GOLD) | MODEL L

68111-43400-764

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-48D10-19A.

44110-48B61-YD8

Unavailable

4

TANK ASSY, FUEL (RED) | CALIFORNIA ONLY,MODEL M; Includes Item(s) 5 - 6

44100-48D00-19A

Unavailable

5

TAPE, FUEL TANK | MODEL M

68115-48B70-0WT

Unavailable

6

EMBLEM (SILVER) | MODEL M

68111-24D00-13L

Unavailable

7

CAP SET, FUEL TANK | MODEL L This part replaces 44200-48B01-KEY.

44200-48810

Unavailable

7

CAP SET, FUEL TANK | MODEL M

44200-48810

Unavailable

7

CAP ASSY, FUEL TANK | CALIFORNIA ONLY,MODEL L This part replaces 44200-48B11-KEY.

44200-48820

Unavailable

7

CAP ASSY, FUEL TANK | CALIFORNIA ONLY,MODEL M

44200-48820

Unavailable

8

BOLT

09106-05016

Unavailable

9

COVER, INLET

44262-48B00

Unavailable

10

MOLDING, FRONT This part replaces 68241-48B00.

68241-04X50-300

$7.32

11

CUSHION, FUEL TANK FRONT

44511-48B10

Unavailable

12

CUSHION, FUEL TANK SIDE

44545-48B10

$7.48

13

HEAT SHIELD, FRONT LH

44196-48B00

Unavailable

14

HEAT SHIELD, FRONT RH

44197-48B00

Unavailable

15

HEAT SHIELD, LOWER REAR

44193-48B01

Unavailable

16

HEAT SHIELD, REAR LH

44198-48B00

Unavailable

17

HEAT SHIELD, REAR RH

44199-48B00

Unavailable

18

BRACKET, REAR UPPER

44550-48B10

Unavailable

19

BOLT

09138-06038

Unavailable

20

BRACKET, REAR LOWER

44570-48B00

Unavailable

21

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

22

BOLT, FUEL TANK REAR

09136-06106

Unavailable

23

SPACER This part replaces 09180-06091.

09180-06273

$3.05

24

CUSHION, REAR UPPER

09320-16010

Unavailable

25

CUSHION, REAR LOWER

09320-09033

Unavailable

26

HOSE(7X10.2X200 This part replaces 09352-70103-00A.

09352-70104-00B

$15.32

27

HEAT SHIELD, FRONT RH | CALIFORNIA ONLY

44194-48B10

Unavailable

28

HEAT SHIELD, FRONT LH | CALIFORNIA ONLY

44195-48B10

Unavailable

29

HEAT SHIELD, REAR RH | CALIFORNIA ONLY

44196-48B10

Unavailable

30

HEAT SHIELD, REAR LH | CALIFORNIA ONLY

44197-48B10

Unavailable

31

HEAT SHIELD, SIDE RH | CALIFORNIA ONLY

44198-48B10

Unavailable

32

HEAT SHIELD, SIDE LH | CALIFORNIA ONLY

44199-48B10

Unavailable
