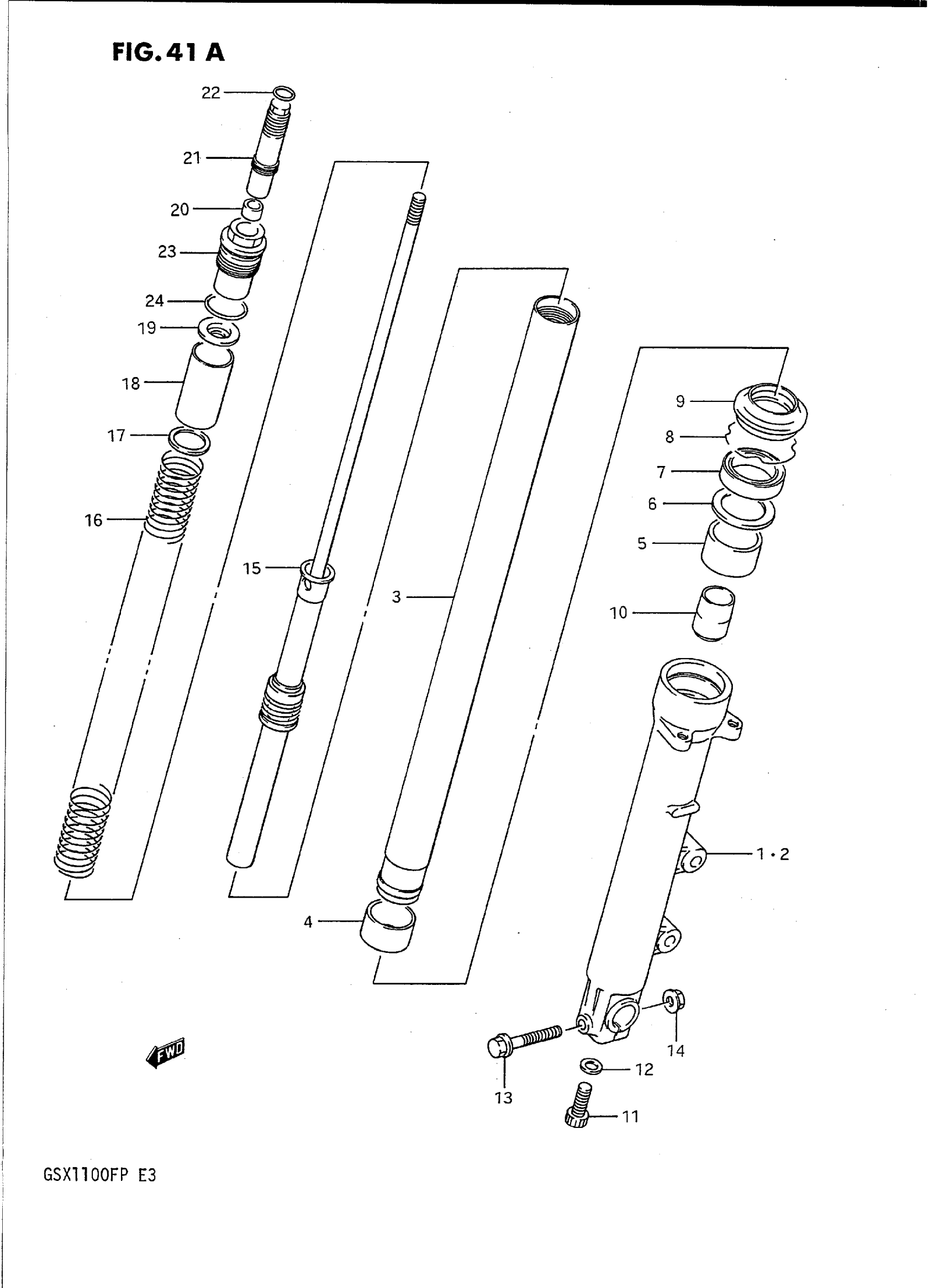

Suzuki GSX1100FP (1993) FRONT DAMPER (MODEL K/L/M/N/P) Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 51103-48B70.

51103-48C01

Unavailable

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 51103-48C00.

51103-48C01

Unavailable

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 51104-48B70.

51104-48C01

Unavailable

NO DESCRIPTION AVAILABLE | MODEL M/N/P; Includes Item(s) 1 - 24 This part replaces 51104-48C00.

51104-48C01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 51130-48B31.

51130-48C01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 51130-48C00.

51130-48C01

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 51140-48B31.

51140-48C01

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 51140-48C00.

51140-48C01

Unavailable

3

TUBE, INNER

51110-48B70

Unavailable

4

BUSH, SLIDE

51121-48B31

$25.73

5

BUSH, GUIDE

51152-48B31

$25.08

6

SPACER, SEAL

51168-38B00

$6.12

7

OIL SEAL | MODEL K/L This part replaces 51153-12C00.

51153-08D00

$21.02

7

OIL SEAL | MODEL M/N/P

51153-08D00

$21.02

8

RING, STOPPER

51556-38B00

$6.61

9

.DUST SEAL | MODEL K/L This part replaces 51571-38B00.

51173-15D00

$21.83

9

.DUST SEAL | MODEL M/N/P This part replaces 51173-08D00.

51173-15D00

$21.83

10

PIECE, OIL LOCK

51195-32C00

Unavailable

11

BOLT, CYLINDER

51147-48130

$3.97

12

GASKET

51148-36011

$3.26

13

BOLT This part replaces 01517-08558.

01550-08557

$3.25

14

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.24

15

DAMPER

52110-48B70

Unavailable

16

SPRING

51171-48B70

Unavailable

17

JOINT, SPRING

51192-48B31

Unavailable

18

SPACER, SPRING

51176-12C10

$15.70

19

SEAT, SPRING

51172-12C10

Unavailable

20

NUT, TIE ROD, LH This part replaces 51827-32C00.

09140-10027

$1.54

21

ADJUSTER, SPRING

51828-48B70

Unavailable

22

O RING (D:2.5,ID:13.8) This part replaces 51834-17C00.

09280-14011

$4.30

23

BOLT, FORK

51189-12C10

Unavailable

24

.O-RING

51117-12C00

$3.66
