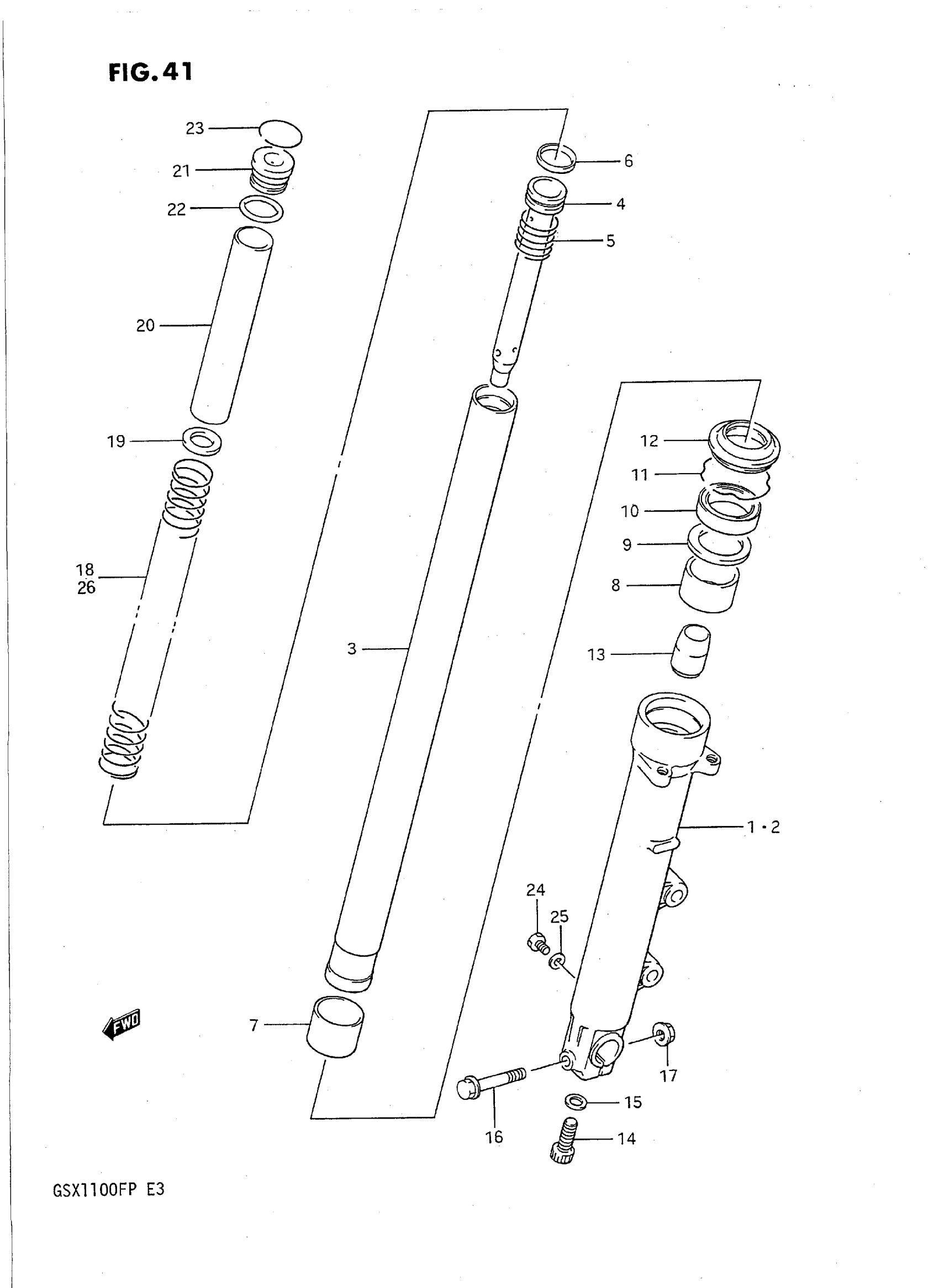

Suzuki GSX1100FP (1993) FRONT DAMPER (MODEL J) Diagram

#

Description
Price

DAMPER ASSY, FRONT RH

51103-48B31

Unavailable

DAMPER ASSY, FRONT LH | Includes Item(s) 1 - 25

51104-48B31

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 51130-48B31.

51130-48C01

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 51140-48B31.

51140-48C01

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 51110-48B31.

51110-48B50

Unavailable

4

CYLINDER

51146-48B31

Unavailable

5

SPRING, REBOUND

51177-48B31

Unavailable

6

RING This part replaces 51196-48B31.

51196-47D00

$8.83

7

BUSH, SLIDE

51121-48B31

$25.75

8

BUSH, GUIDE

51152-48B31

$18.90

9

SPACER, SEAL

51168-38B00

$6.49

10

OIL SEAL This part replaces 51153-38B00.

51153-08D00

$22.96

11

RING, STOPPER

51556-38B00

$7.22

12

.DUST SEAL This part replaces 51571-38B00.

51173-15D00

$23.19

13

PIECE, OIL LOCK

51195-48B31

$30.22

14

BOLT, CYLINDER

51147-48130

$4.34

15

GASKET

51148-36011

$3.56

16

BOLT This part replaces 01517-08558.

01550-08557

$3.74

17

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

18

SPRING

51171-48B31

Unavailable

19

JOINT, SPRING

51192-48B31

Unavailable

20

SPACER, SPRING This part replaces 51176-48B31.

51176-34C00

Unavailable

21

SEAT, SPRING

51172-48B31

Unavailable

22

O RING

51117-48B31

Unavailable

23

RING, STOPPER

51169-48B31

Unavailable

24

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

25

GASKET

51183-31030

$3.77

26

SPRING | OPTN/P

51171-48B00

Unavailable
