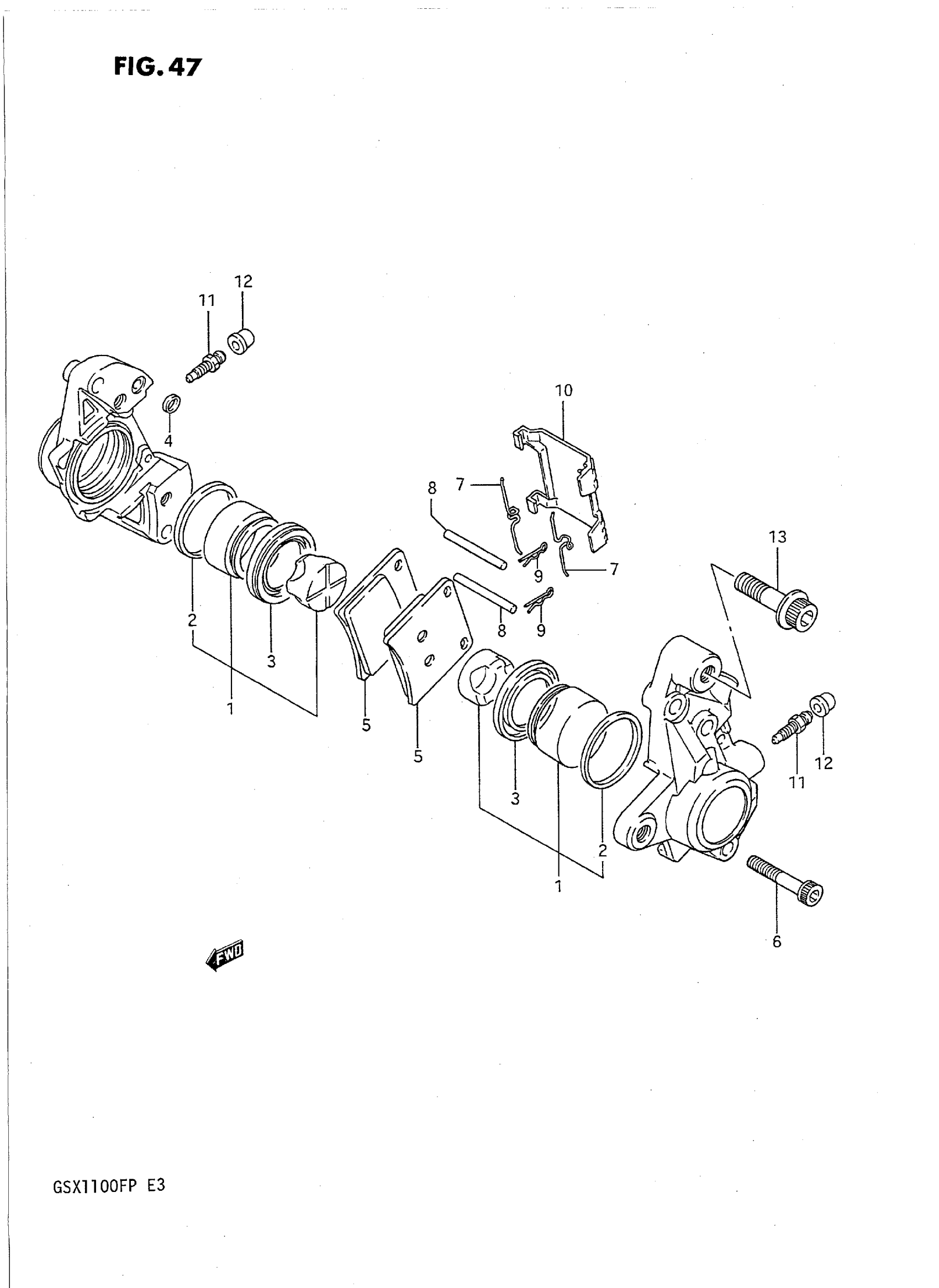

Suzuki GSX1100FP (1993) FRONT CALIPERS (MODEL J) Diagram

#

Description
Price

CALIPER ASSY, RH | ->59100-48B01 This part replaces 59100-48B00.

59100-48B03

Unavailable

CALIPER ASSY, LH | ->59300-48B01; Includes Item(s) 1 - 12 This part replaces 59300-48B00.

59300-48B03

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 59100-48810.

59100-48821

Unavailable

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

3

BOOT

69108-45000

$8.50

4

SEAL

69107-34200

$10.71

5

PAD SET This part replaces 59130-48B00.

59100-19820

Unavailable

6

BOLT, HOUSING

59145-00A00

Unavailable

7

SPRING

69143-45001

$6.73

8

PIN

69141-45000

$5.17

9

.CLIP, PAD PIN

69142-45000

$4.34

10

COVER

59151-00A01

Unavailable

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

BOLT | /N

09106-10051

Unavailable
