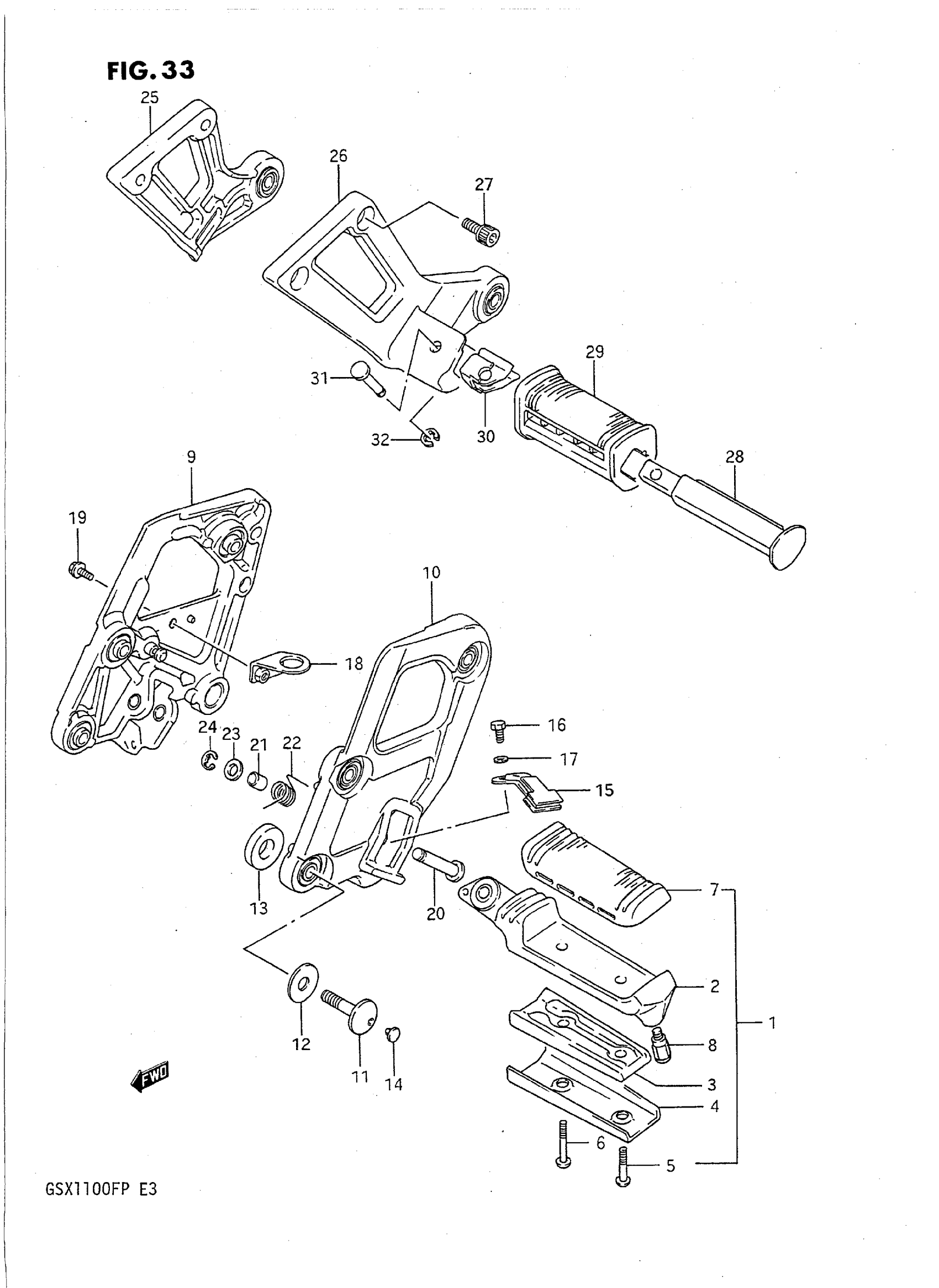

Suzuki GSX1100FP (1993) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43501-48B02

Unavailable

1

FOOTREST ASSY, FRONT LH | Includes Item(s) 2 - 8

43502-48B02

Unavailable

2

BAR, FRONT FOOTREST RH

43510-48B51

Unavailable

2

BAR, FRONT FOOTREST LH

43520-48B51

Unavailable

3

BAR, FRONT FOOTREST NO.2 RH

43533-48B00

Unavailable

3

BAR, FRONT FOOTREST NO.2 LH

43533-00A00

Unavailable

4

COVER, FRONT FOOTREST BAR RH

43534-48B00

Unavailable

4

COVER, FRONT FOOTREST BAR LH

43534-00A00

Unavailable

5

SCREW

02112-05257

$1.49

6

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

7

RUBBER, FRONT FOOTREST

43550-48B10

$26.78

8

BOLT, BANK SENSOR This part replaces 43576-48B00.

43576-48B02

$7.48

9

BRACKET, FRONT FOOTREST RH

43510-48B12-13L

Unavailable

10

BRACKET, FRONT FOOTREST LH

43520-48B12-13L

Unavailable

11

BOLT, MUFFLER SUPPORT FRONT This part replaces 09106-08080.

09106-08147

$6.25

12

WASHER This part replaces 08322-21088.

08322-01087

$2.13

13

CUSHION

09161-12003

Unavailable

14

CAP This part replaces 09250-06008.

09250-06016

$1.96

15

CUSHION, FRONT FOOTREST

43570-43400

Unavailable

16

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

17

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

18

BRACKET, STOP LAMP SWITCH

43560-48B00

Unavailable

19

SCREW

09139-05033

$2.20

20

PIN

09208-08005

Unavailable

21

SPACER

09306-08013

Unavailable

22

SPRING, RH

09448-14030

Unavailable

22

SPRING, LH

09448-14031

Unavailable

23

WASHER (8X14X1.0) This part replaces 08211-08141.

09181-08139

$1.91

24

CIRCLIP This part replaces 08332-11066.

08332-1106A

$1.49

25

BRACKET, MUFFLER RH (SILVER)

43810-48B11-13L

Unavailable

26

BRACKET, MUFFLER LH (SILVER)

43820-48B11-13L

Unavailable

27

BOLT, BRACKET This part replaces 07110-08207.

07130-08207

$4.32

28

BAR,PILLION FOO This part replaces 43610-48B10.

43610-48B11

Unavailable

28

NO DESCRIPTION AVAILABLE This part replaces 43620-48B10.

43620-48B11

Unavailable

29

RUBBER, PILLION FOOTREST

43612-49402

Unavailable

30

CUSHION, PILLION FOOTREST

43570-48B01

Unavailable

31

PIN

09208-08009

Unavailable

32

CIRCLIP This part replaces 08332-11066.

08332-1106A

$1.49
