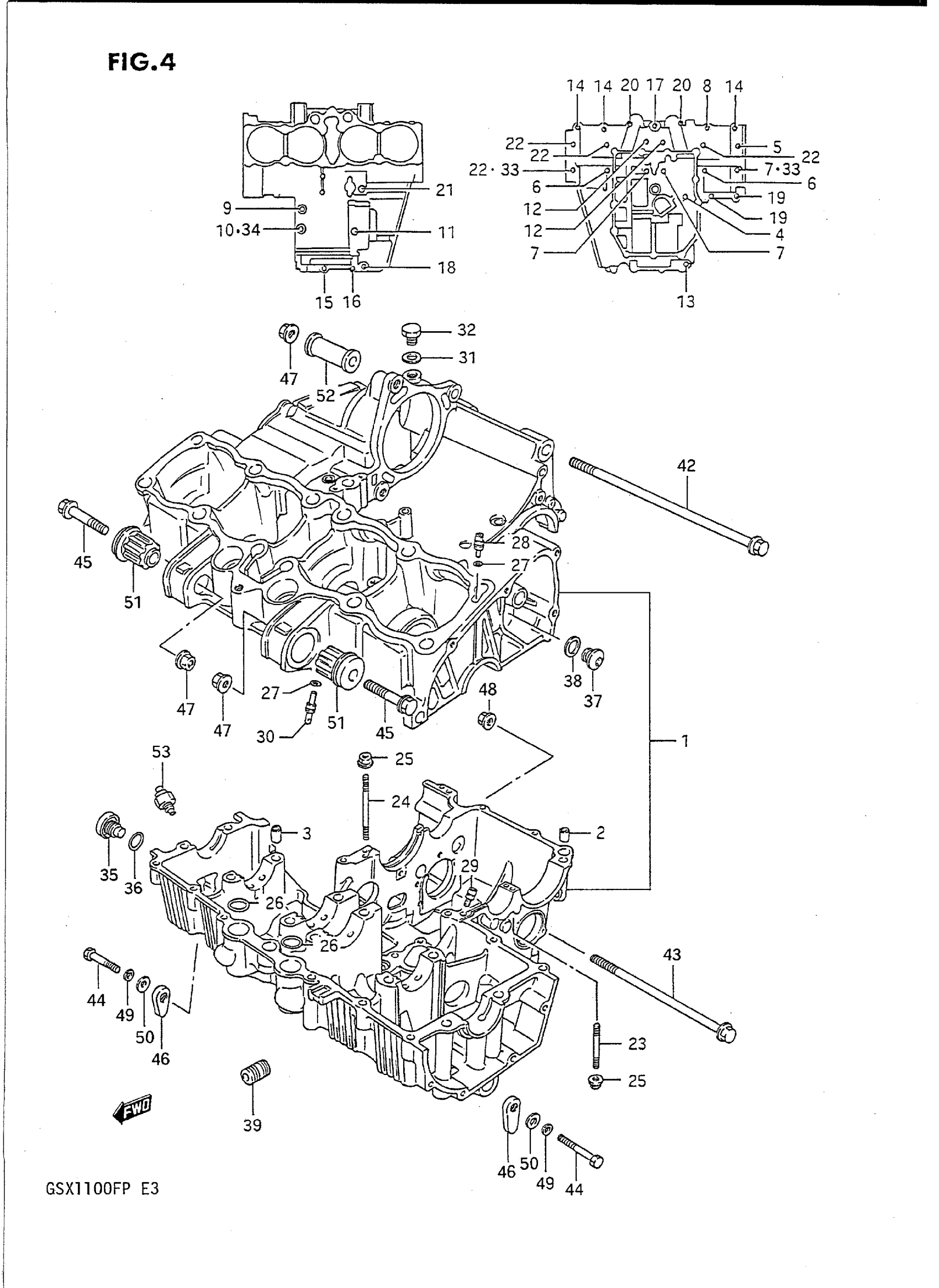

Suzuki GSX1100FP (1993) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 41

11300-48833

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT (6X105)

09103-06067

$2.48

5

BOLT (8X105)

09103-08097

$3.44

6

BOLT (8X125)

09103-08182

$5.72

7

BOLT (8X115)

09103-08098

$3.29

8

BOLT | MODEL J/K/L/M/N This part replaces 01517-06354.

01550-0635A

$2.32

8

BOLT | MODEL P This part replaces 01517-06358.

01550-06357

$2.77

9

BOLT, STATOR | MODEL J/K/L/M/N This part replaces 07110-06405.

07130-0640B

$3.38

9

BOLT | MODEL P This part replaces 07130-06408.

07130-06407

$3.68

10

BOLT | MODEL J/K/L This part replaces 07110-06505.

07130-0650B

$4.10

10

BOLT | MODEL M/N/P This part replaces 09106-06072.

07120-0655B

$4.10

11

BOLT | MODEL J/K/L/M/N This part replaces 07110-06655.

07130-0665B

$3.79

11

BOLT | MODEL P This part replaces 07130-06658.

07130-0665B

$3.79

12

BOLT | MODEL J/K/L/M/N This part replaces 07110-08655.

07130-0865B

$5.27

12

BOLT | MODEL P This part replaces 07110-08658.

07130-0865B

$5.27

13

BOLT | MODEL J/K/L/M/N This part replaces 01517-08605.

01550-0860A

$4.17

13

BOLT | MODEL P This part replaces 01517-08608.

01550-08607

$3.76

14

BOLT | MODEL J/K/L/M/N This part replaces 01517-06354.

01550-0635A

$2.32

14

BOLT | MODEL P This part replaces 01517-06358.

01550-06357

$2.77

15

BOLT | MODEL J/K/L/M/N This part replaces 01517-06404.

01550-0640A

$2.42

15

BOLT | MODEL P This part replaces 01517-06408.

01550-06407

$2.69

16

BOLT | MODEL J/K/L/M/NMODEL P This part replaces 01517-06408.

01550-06407

$2.69

17

BOLT | MODEL J/K/L/M/N This part replaces 01517-06505.

01550-0650A

$2.85

17

BOLT (6X50) | MODEL P This part replaces 01517-06508.

01550-06507

$3.40

18

BOLT | MODEL J/K/L/M/N This part replaces 01517-06605.

01550-0660A

$3.05

18

BOLT | MODEL P This part replaces 01517-06608.

01550-06607

$4.17

19

BOLT This part replaces 01517-06557.

01550-06557

$3.30

20

BOLT | MODEL J/K/L/M/N This part replaces 01517-06705.

01550-0670B

$4.25

20

BOLT | MODEL P This part replaces 01517-06708.

01550-06707

$4.30

21

BOLT | MODEL J/K/L/M/N This part replaces 01517-06805.

01550-0680B

$3.50

21

BOLT | MODEL P This part replaces 01517-06808.

01550-06807

Unavailable

22

BOLT (8X95)

09103-08105

$3.87

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

$2.38

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$3.23

25

NUT This part replaces 09159-06017.

08319-31067

$2.03

26

O RING (D:2.5,ID:21)

09280-21008

$1.91

27

O RING

09280-04004

$1.91

28

JET, OIL GALY HEAD

09493-14002

Unavailable

29

JET, OIL GALY GEAR SHIFT

09493-24010

$16.87

30

JET, OIL GALY PISTON

09493-80008

Unavailable

31

GASKET, HOLE PLUG

09168-12002

$1.59

32

PLUG, HOLE

09247-12103

$2.84

33

GASKET

09168-08021

$2.61

34

GASKET | MODEL M/N/P

09168-06018

$1.77

35

PLUG This part replaces 09248-16003.

09248-16007

$9.96

36

O RING

09280-17002

$5.11

37

PLUG, CYLINDER HEAD | MODEL J/K/L This part replaces 09248-14004.

09248-14010

$5.50

37

PLUG, SHAFT | MODEL M/N/P This part replaces 09248-14005.

09248-14011

$2.98

38

GASKET

09168-14004

$1.83

39

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

40

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.8 (B-11)

12228-48B00-0E0

$9.34

41

BEARING, THRUST LH (PINK) | SEE ILLUSTRATION ON FIG.8 (B-11)

12228-48B00-0A0

Unavailable

41

BEARING, THRUST LH (BROWN)

12228-48B00-0B0

$11.57

41

BEARING, THRUST LH (RED)

12228-48B00-0C0

$11.35

41

BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

$11.78

41

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.34

41

BEARING, THRUST LH (BLUE)

12228-48B00-0F0

$11.78

41

BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

$11.78

41

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

42

BOLT (10X180)

09103-10136

$9.32

43

BOLT (12X140) This part replaces 09100-12053.

09100-12044

Unavailable

44

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

45

BOLT This part replaces 01517-10558.

01550-10557

$3.91

46

NUT

09159-10020

$5.18

47

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

48

NUT This part replaces 08319-31128.

08319-3112A

$3.76

49

LOCK WASHER This part replaces 08321-21107.

08321-01107

$1.84

50

WASHER This part replaces 08322-11107.

08322-01107

$2.15

51

BUSH,ENGINE MOU This part replaces 11681-06B00.

11681-06B01

$21.25

52

SPACER, ENGINE MOUNT | MODEL J/K This part replaces 11611-06B01.

11610-20C00

$15.42

52

SPACER (L:27) | MODEL L/M/N/P

11610-20C00

$15.42

53

SWITCH ASSY,OIL PRESSURE | MODEL J/K/L/M/N This part replaces 37820-34200.

37820-33D11

$25.13

53

SWITCH ASSY,OIL PRESSURE | MODEL P This part replaces 37820-33D00.

37820-33D11

$25.13
