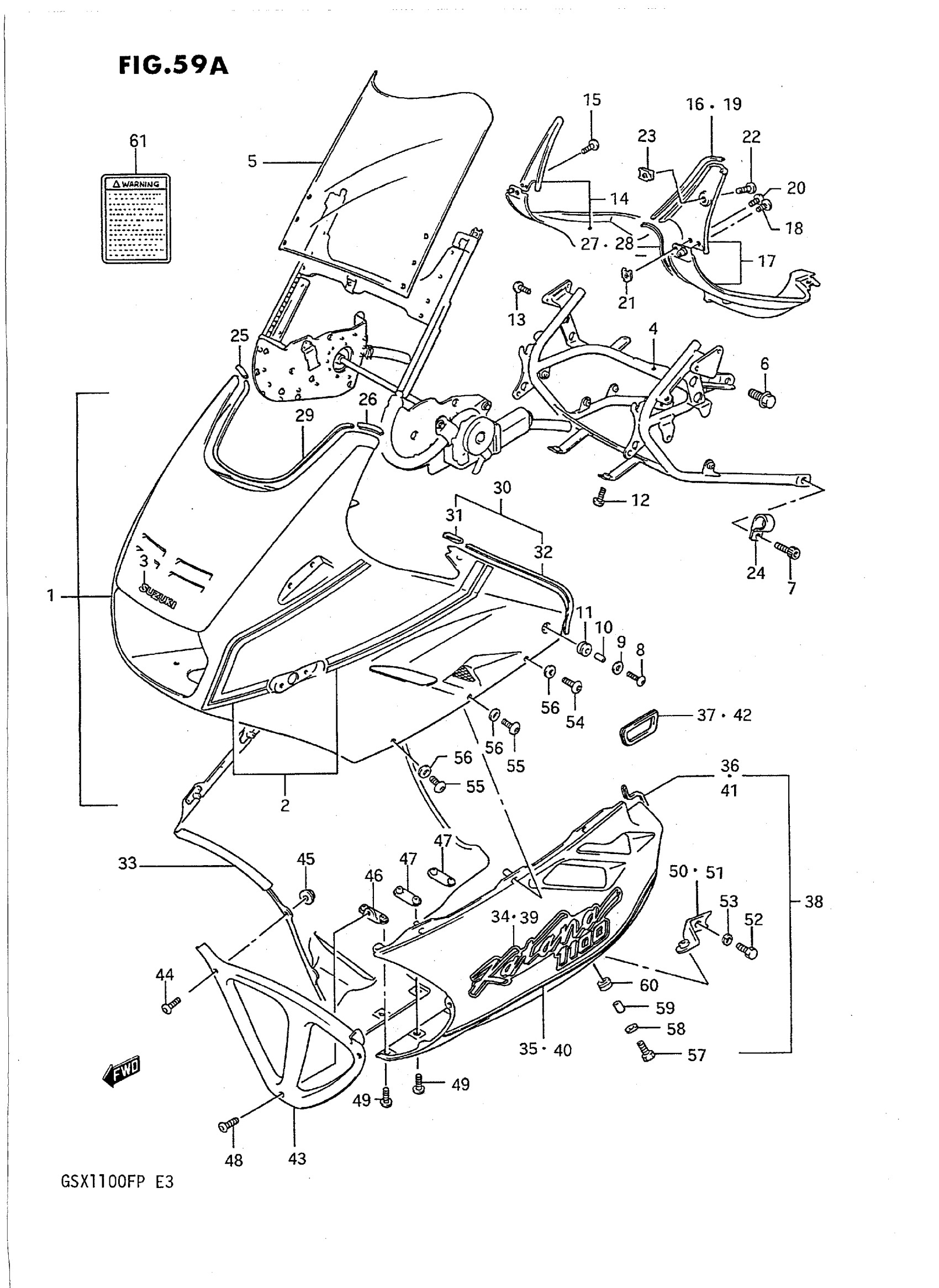

Suzuki GSX1100FP (1993) COWLING (MODEL K) Diagram

#

Description
Price

1

BODY ASSY, COWLING (BLACK) | CLEAR COATING

94400-48C00-33J

Unavailable

1

BODY ASSY, COWLING (BLACK) | ->94400-48C00-33J; Includes Item(s) 2 - 3 This part replaces 94400-48C01-33J.

94400-48C00-33J

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68180-48B30-3BD.

68180-48B31-3BD

Unavailable

3

EMBLEM

68185-05C10-12R

Unavailable

4

BRACE This part replaces 94510-48B11.

94510-48B21

Unavailable

4

BRACE | CALIFORNIA ONLY

94510-48B21

Unavailable

5

WIND SCREEN

94611-48B40

Unavailable

6

BOLT, BRACE FRONT

09103-10195

Unavailable

7

BOLT This part replaces 07110-08165.

07130-0816A

$3.16

8

SCREW, BODY REAR

09139-06028

$3.70

9

WASHER

09160-06056

$1.72

10

SPACER This part replaces 09180-06152.

09180-06262

$2.55

11

CUSHION

09320-09016

$1.97

12

SCREW, LOWER

09139-06030

$3.70

13

SCREW, SET

02142-06127

$1.49

14

PANEL ASSY, RH (BLACK) | Includes Item(s) 15 - 16

94700-48B10-291

Unavailable

15

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

16

MOLDING, LICENSE HOLDER This part replaces 94419-48B10.

94635-19C00

$8.53

17

PANEL ASSY, LH (BLACK) | Includes Item(s) 18 - 19

94800-48B10-291

Unavailable

18

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

19

MOLDING, LICENSE HOLDER This part replaces 94419-48B10.

94635-19C00

$8.53

20

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

21

NUT

09148-05020

$2.18

22

SCREW This part replaces 03241-05125.

03241-0512A

$1.49

23

NUT

09148-05020

$2.18

24

CLAMP

09403-18406

Unavailable

25

CAP, RH

94426-48B10

Unavailable

26

CAP, LH

94427-48B10

$7.53

27

MOLDING, PANEL RH

94591-48B10

Unavailable

28

MOLDIMG. PANEL LH

94592-48B10

Unavailable

29

MOLDING, LICENSE HOLDER This part replaces 94419-48B00.

94635-19C00

$8.53

30

MOLDING, SIDE | Includes Item(s) 31 - 32

94439-48B00

Unavailable

31

COVER

94651-48B00

Unavailable

32

MOLDING (L:325)

94479-48B00

Unavailable

33

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 97600-48C01-33J.

94470-48B00

Unavailable

33

NO DESCRIPTION AVAILABLE | ->97600-48C01-33J This part replaces 97600-48C02-33J.

94470-48B00

Unavailable

33

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLYCLEAR COATING This part replaces 97600-48B91-33J.

94470-48B10

Unavailable

33

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY->97600-48B91-33J; Includes Item(s) 34 - 37 This part replaces 97600-48B92-33J.

94470-48B10

Unavailable

34

NO DESCRIPTION AVAILABLE This part replaces 68191-48B20-3BJ.

68191-48B21-3BJ

Unavailable

35

NO DESCRIPTION AVAILABLE This part replaces 68685-48B30-3BD.

68685-48B31-3BD

Unavailable

36

MOLDING (L:325) This part replaces 94479-48B10.

94479-48B00

Unavailable

37

MOLDING | CALIFORNIA ONLY

94473-48B10

Unavailable

38

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 97700-48C01-33J.

94480-48B00

Unavailable

38

NO DESCRIPTION AVAILABLE | ->97700-48C01-33J This part replaces 97700-48C02-33J.

94480-48B00

Unavailable

38

COVER ASSY, LOWER LH (BLACK) | CALIFORNIA ONLYCLEAR COATING

97700-48B91-33J

Unavailable

38

COVER ASSY, LOWER LH (BLACK) | CALIFORNIA ONLY->97700-48B91-33J; Includes Item(s) 39 - 42 This part replaces 97700-48B92-33J.

97700-48B91-33J

Unavailable

39

NO DESCRIPTION AVAILABLE This part replaces 68191-48B20-3BJ.

68191-48B21-3BJ

Unavailable

40

NO DESCRIPTION AVAILABLE This part replaces 68695-48B30-3BD.

68695-48B31-3BD

Unavailable

41

MOLDING (L:325) This part replaces 94479-48B10.

94479-48B00

Unavailable

42

MOLDING | CALIFORNIA ONLY

94473-48B10

Unavailable

43

NO DESCRIPTION AVAILABLE | CLEAR COATING This part replaces 94475-48B00-33J.

94475-48B02

Unavailable

43

NO DESCRIPTION AVAILABLE This part replaces 94475-48B01.

94475-48B02

Unavailable

44

SCREW

09139-05025

$2.05

45

NUT This part replaces 08316-26055.

08316-2005A

$2.19

46

BRACE, LOWER

94490-06B00

Unavailable

47

BRACE, LOWER REAR

94493-06B00

Unavailable

48

SCREW, FRONT

09139-06027

$2.16

49

SCREW, R & L

09139-06039

$2.19

50

BRACE, LOWER RH

94580-48B11

Unavailable

51

BRACE, LOWER LH

94590-48B11

Unavailable

52

BOLT This part replaces 01107-08127.

01500-08127

$2.62

53

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

54

SCREW, UPPER REAR

09139-06028

$3.70

55

SCREW

09139-06030

$3.70

56

WASHER This part replaces 09161-07005.

09161-07006

$2.15

57

SCREW

09139-06028

$3.70

58

WASHER

09160-06056

$1.72

59

SPACER

09180-06121

$1.98

60

CUSHION

09320-09016

$1.97

61

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80
