1993 Suzuki GSX1100F Handle BAR Diagram

← All diagrams

Find the part on the Handle BAR diagram for your 1993 Suzuki GSX1100F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

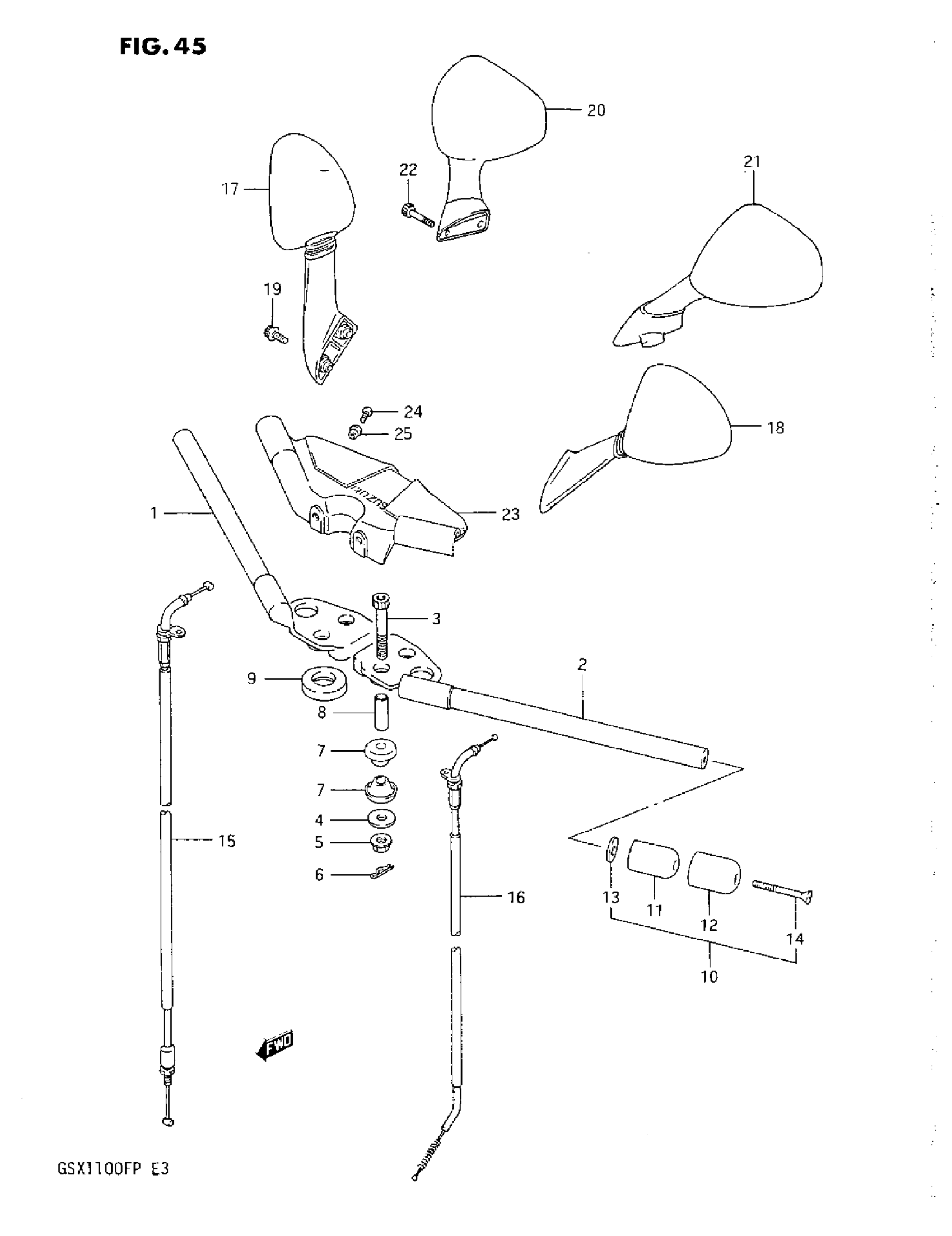

1993 Suzuki GSX1100F Handle BAR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE BAR, RH (HOLE 26) | MODEL J This part replaces 56111-48B60.

56111-48B70

1
Out of stock

1

HANDLE BAR, RH (HOLE 26) | MODEL K/L/M/N/P

56111-48B70

1
Out of stock

2

HANDLE BAR, LH (HOLE 26) | MODEL J This part replaces 56151-48B60.

56151-48B70

1
Out of stock

2

HANDLE BAR, LH (HOLE 26) | MODEL K/L/M/N/P

56151-48B70

1
Out of stock

3

BOLT

09106-10049

4
Out of stock

4

WASHER This part replaces 09160-10084.

09160-10094

4
Out of stock

5

NUT This part replaces 08319-31105.

08319-3110A

4
Out of stock

6

CLIP

09385-10005

4
Out of stock

7

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

8
Out of stock

8

SPACER, BRACKET

56243-48B31

4
Out of stock

9

CUSHION, CAP | MODEL J

56559-48B30

2
Out of stock

9

CUSHION, CAP (HOLE 26) | MODEL K/L/M/N/P

56559-48B70

2
Out of stock

10

BALANCER SET,HN This part replaces 56200-48810.

56200-48822

2
Out of stock

11

BALANCER

56271-00A00

2
Out of stock

12

CAP

56274-00A11

2
Out of stock

13

SPACER This part replaces 56275-34400.

56275-34401

2
Out of stock

14

2

$3.00

In stock

15

CABLE ASSY, THROTTLE | MODEL J

58300-48B00

1
Out of stock

15

CABLE ASSY, THROTTLE | MODEL K/L/M/N/P

58300-48B10

1
Out of stock

16

CABLE ASSY, STARTER

58410-48B00

1
Out of stock

17

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 56500-48B32-24D.

56500-48B52-24D

1
Out of stock

17

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 56500-48B32-24V.

56500-48B52-24V

1
Out of stock

17

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 56500-48B32-33J.

56500-48B52-33J

1
Out of stock

18

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 56600-48B32-24D.

56600-48B52-24D

1
Out of stock

18

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 56600-48B32-24V.

56600-48B52-24V

1
Out of stock

18

MIRROR ASSY,RR | MODEL K This part replaces 56600-48B32-33J.

56600-48B52-33J

1
Out of stock

19

BOLT, FRONT | MODEL J/K This part replaces 07120-06205.

07120-0620B

4
Out of stock

20

MIRROR ASSY, REAR VIEW RH (BLACK) | MODEL L

56500-48C01-33J

1
Out of stock

20

MIRROR ASSY, REAR VIEW RH (RED) | MODEL M

56500-48C01-19A

1
Out of stock

20

MIRROR ASSY, REAR VIEW RH (MAROON) | MODEL N

56500-48C01-20F

1
Out of stock

20

MIRROR ASSY, REAR VIEW RH (PURPLE) | MODEL P

56500-48C01-1HU

1
Out of stock

21

MIRROR ASSY, REAR VIEW LH (BLACK) | MODEL L

56600-48C01-33J

1
Out of stock

21

MIRROR ASSY, REAR VIEW LH (RED) | MODEL M

56600-48C01-19A

1
Out of stock

21

MIRROR ASSY, REAR VIEW LH (MAROON) | MODEL N

56600-48C01-20F

1
Out of stock

21

MIRROR ASSY, REAR VIEW LH (PURPLE) | MODEL P

56600-48C01-1HU

1
Out of stock

22

BOLT, FRONT | MODEL L/M/N/P This part replaces 07120-06205.

07120-0620B

4
Out of stock

23

COVER, HANDLE

56170-48B00

1
Out of stock

24

.SCREW This part replaces 02142-05124.

02142-0512A

4
Out of stock

25

WASHER

09169-05009

4
Out of stock
