1993 Suzuki GSX1100F Footrest Diagram

← All diagrams

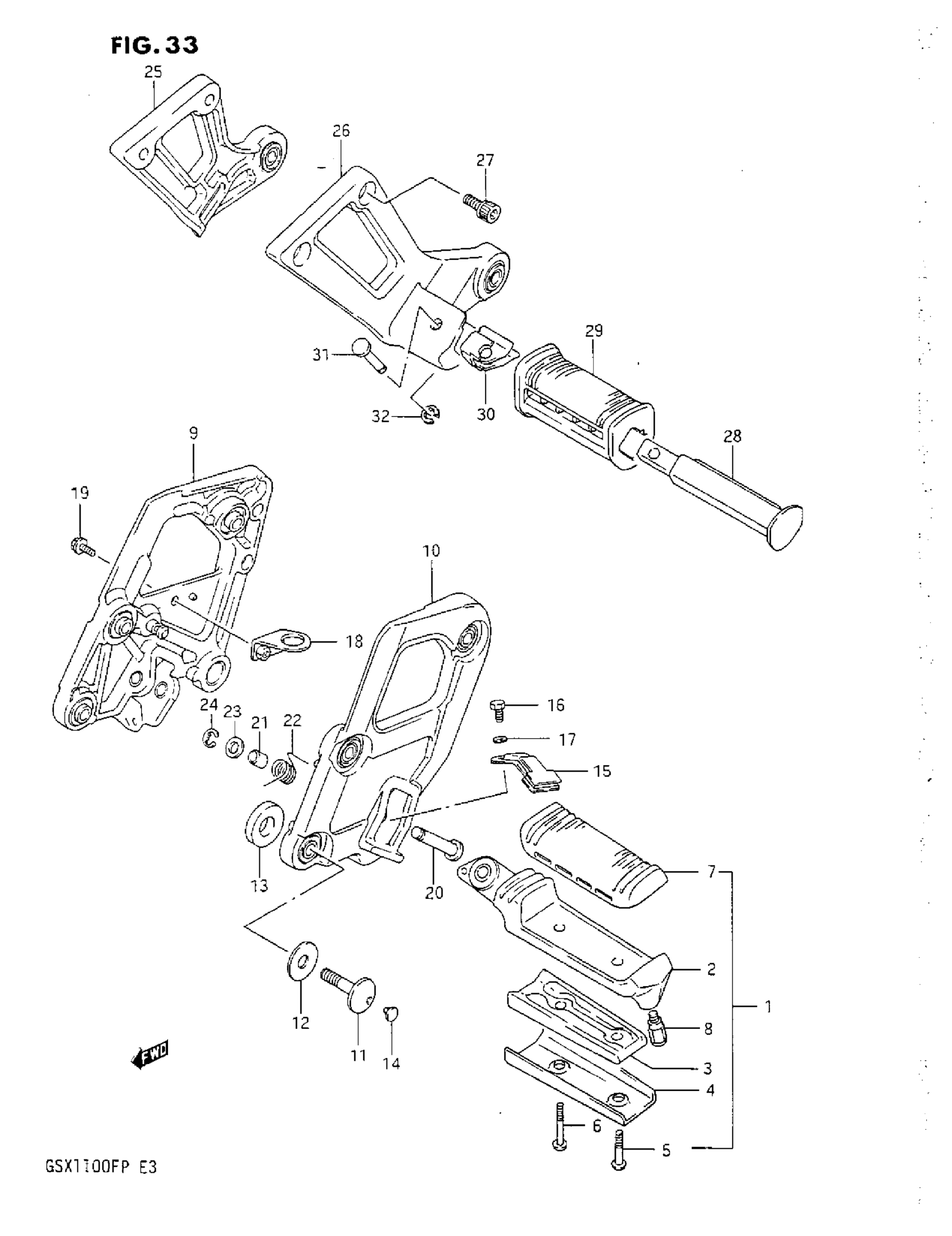

Find the part on the Footrest diagram for your 1993 Suzuki GSX1100F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100F Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST ASSY, FRONT RH

43501-48B02

1
Out of stock

1

FOOTREST ASSY, FRONT LH

43502-48B02

1
Out of stock

2

BAR, FRONT FOOTREST RH

43510-48B51

1
Out of stock

2

BAR, FRONT FOOTREST LH

43520-48B51

1
Out of stock

3

BAR, FRONT FOOTREST NO.2 RH

43533-48B00

1
Out of stock

3

BAR, FRONT FOOTREST NO.2 LH

43533-00A00

1
Out of stock

4

COVER, FRONT FOOTREST BAR RH

43534-48B00

1
Out of stock

4

COVER, FRONT FOOTREST BAR LH

43534-00A00

1
Out of stock

5

SCREW

02112-05257

3
Out of stock

6

1

$2.23

In stock

7

2

$30.22

In stock

8

BOLT, BANK SENSOR This part replaces 43576-48B00.

43576-48B02

2
Out of stock

9

BRACKET, FRONT FOOTREST RH

43510-48B12-13L

1
Out of stock

10

BRACKET, FRONT FOOTREST LH

43520-48B12-13L

1
Out of stock

11

BOLT, MUFFLER SUPPORT FRONT This part replaces 09106-08080.

09106-08147

6
Out of stock

12

WASHER This part replaces 08322-21088.

08322-01087

4
Out of stock

13

CUSHION

09161-12003

4
Out of stock

14

CAP This part replaces 09250-06008.

09250-06016

8
Out of stock

15

CUSHION, FRONT FOOTREST

43570-43400

2
Out of stock

16

BOLT This part replaces 01107-05108.

01500-0510B

2
Out of stock

17

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

18

BRACKET, STOP LAMP SWITCH

43560-48B00

1
Out of stock

19

SCREW

09139-05033

1
Out of stock

20

PIN

09208-08005

2
Out of stock

21

SPACER

09306-08013

2
Out of stock

22

SPRING, RH

09448-14030

1
Out of stock

22

SPRING, LH

09448-14031

1
Out of stock

23

WASHER (8X14X1.0) This part replaces 08211-08141.

09181-08139

2
Out of stock

24

CIRCLIP This part replaces 08332-11066.

08332-1106A

2
Out of stock

25

BRACKET, MUFFLER RH (SILVER)

43810-48B11-13L

1
Out of stock

26

BRACKET, MUFFLER LH (SILVER)

43820-48B11-13L

1
Out of stock

27

BOLT, BRACKET This part replaces 07110-08207.

07130-08207

4
Out of stock

28

BAR,PILLION FOO This part replaces 43610-48B10.

43610-48B11

1
Out of stock

28

NO DESCRIPTION AVAILABLE This part replaces 43620-48B10.

43620-48B11

1
Out of stock

29

RUBBER, PILLION FOOTREST

43612-49402

2
Out of stock

30

CUSHION, PILLION FOOTREST

43570-48B01

2
Out of stock

31

PIN

09208-08009

2
Out of stock

32

CIRCLIP This part replaces 08332-11066.

08332-1106A

2
Out of stock
