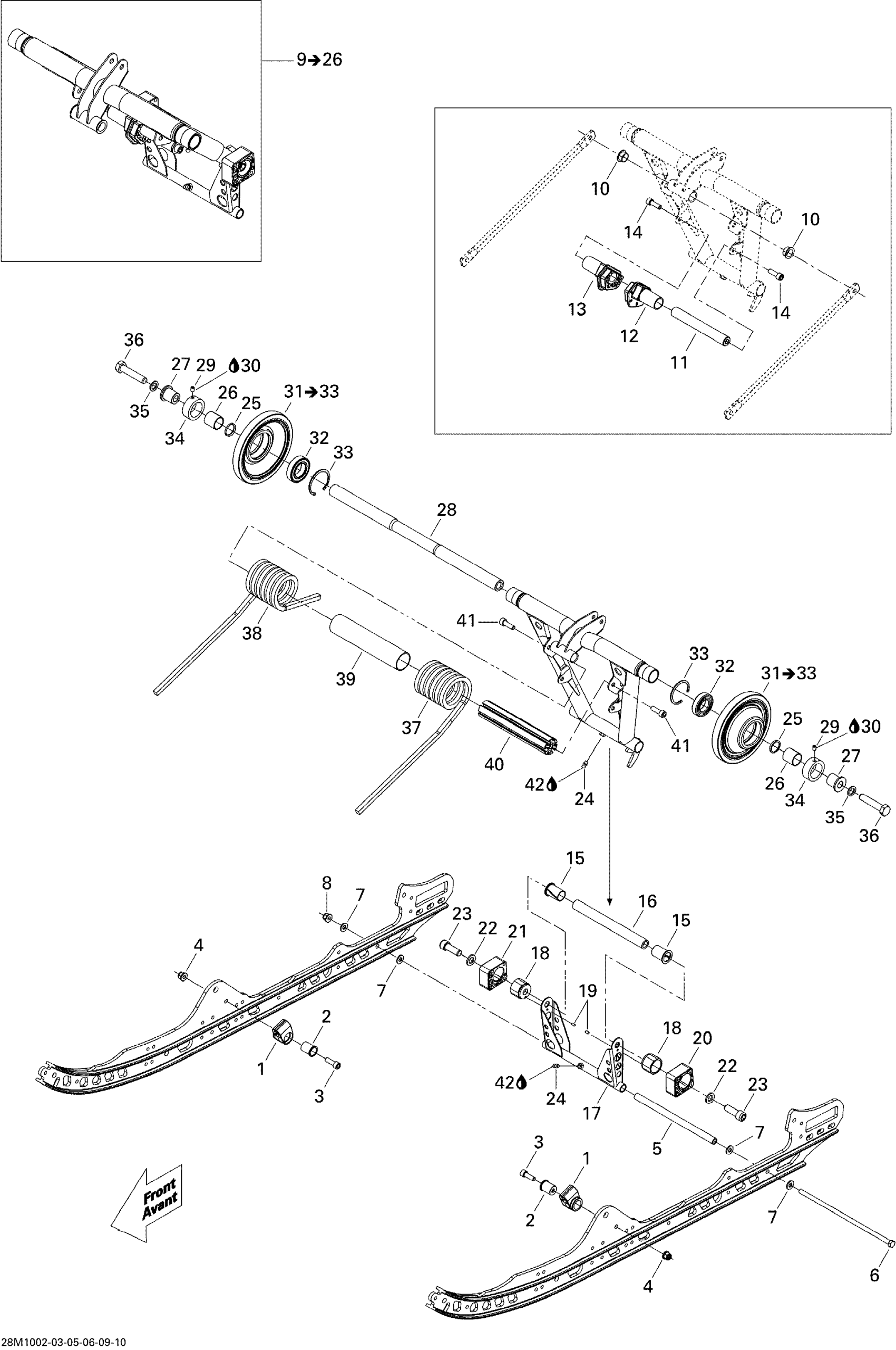

Ski-Doo GSX Sport 600, 2010 Rear Arm 500SS Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Pivot Arm Axle

503189156

$20.12

6

Bolt M8 X 248mm

503192440

$29.07

7

Washer

503189157

$3.10

8

Hex. Flange Elastic Nut M8

233281414

$1.31

9

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$214.15

10

Swivel Bushing

503191555

$5.54

11

Spring Cam Axe

503191178

$26.84

12

LH Spring Cam

503191191

$13.46

13

RH Spring Cam

503191190

$13.37

14

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

15

Cushion

503191640

$5.54

16

Lower Shaft

503192330

$44.75

17

Pivot Arm

503191302

$114.90

18

Block Guide

503189488

$36.54

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

20

LH Block, 4 Positions

503192301

$23.85

21

RH Block, 4 Positions

503192300

$23.85

22

Washer | 7415/7416. 7417/7418.

503189148

$2.64

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

24

Grease Fitting

408200700

$3.21

25

Washer

503191774

$2.18

26

Bushing

503191773

$13.19

27

Bushing

503191775

$14.81

28

Upper Shaft

503191776

$44.75

29

Socket Set Screw M6 X 8

206260844

$1.43

30

Loctite 243, 10 ml

293800060

$21.49

31

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$35.04

32

Ball Bearing

503191778

$11.12

33

Retaining Ring

415129371

$8.66

34

Retaining Ring

503191782

$13.54

35

Washer

503189276

$3.10

36

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

37

Black LH Spring, Square

503191613

$58.18

38

Black RH Spring, Square

503191612

$58.18

39

Plastic Bushing

503191345

$6.69

40

Spring Axle

503191344

$33.55

41

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

42

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
