Partiron

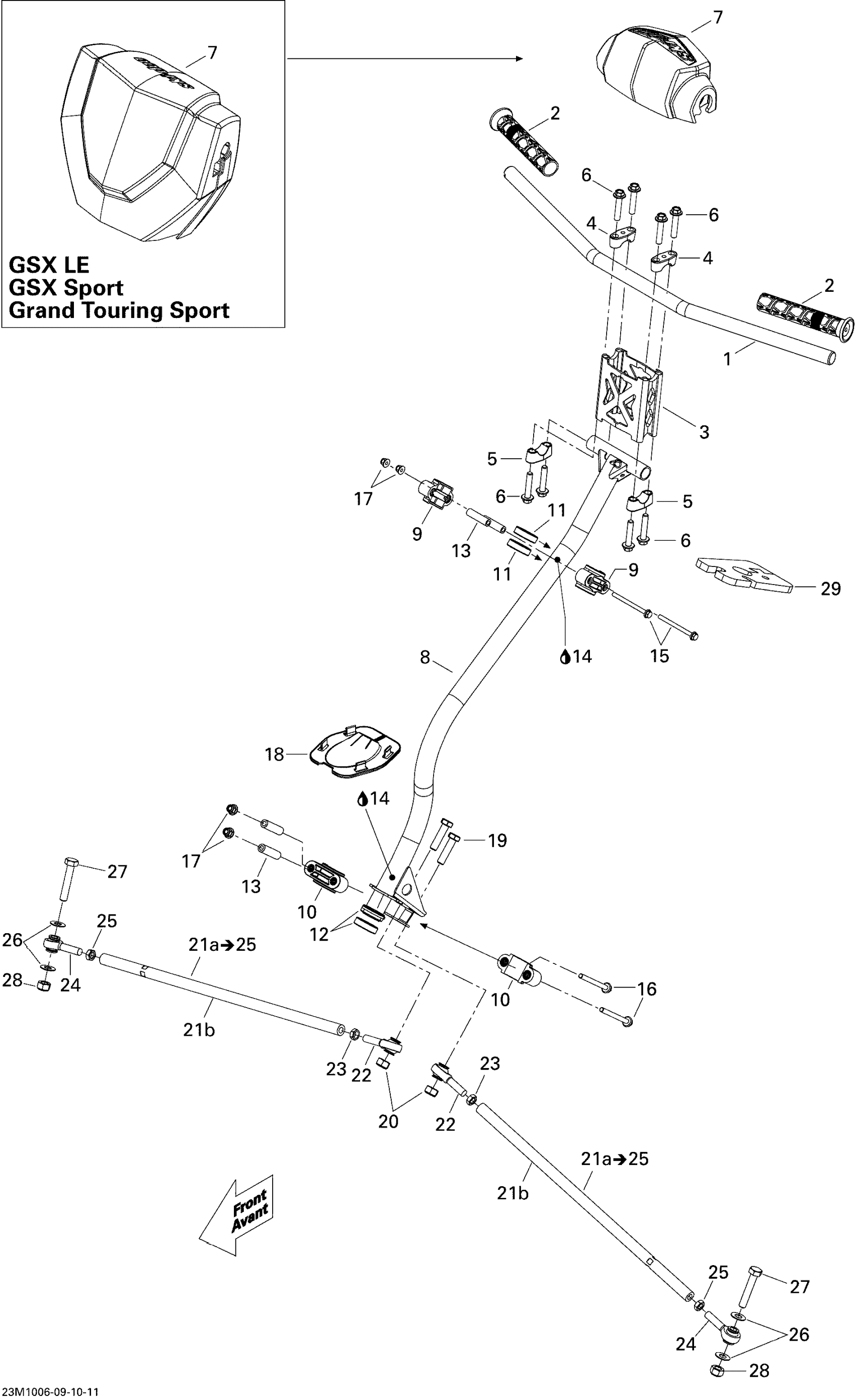

Ski-Doo GSX Sport 600, 2010 Steering 500SS Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152203

Unavailable

2

Handle Grip

506152424

$13.37

3

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

4

Steering Support | Includes 40 to 40a

506152751

$11.58

5

Steering Support | Includes 40 to 40a

506152751

$11.58

6

Hex. Flange Screw M8 X 40

250000352

$3.16

7

STEERING PAD - Call your local BRP dealership

506152249

Unavailable

8

Steering Column

506152964

$183.55

9

Upper Half Housing

506152219

$1.63

10

Lower Half-Housing

506152217

$5.40

11

Upper Vibration Ring

506152292

$0.70

12

Lower Vibration Ring

506152518

$4.39

13

Housing Bushing

506152297

$9.93

14

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

15

Hex. Flange Screw M6 X 70

207667056

$4.15

16

Hex. Flange Screw M6 X 70

207667044

$0.81

17

Elastic Flange Nut M6 X 1.0

233261416

$2.00

18

Plate

506152163

$9.93

19

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

20

Elastic Stop Nut M10

232500416

$1.79

21a

Not Available As Spare Part - Friction Washer

Unavailable

21b

Tie-Rod Ass'y

506152496

$58.18

22

LH Thread Ball Joint

506152081

$38.78

23

LH Threaded Hex. Jam Nut M10

250100016

$0.70

24

RH Threaded Ball Joint

506152019

$38.78

25

RH Threaded Hex. Jam Nut M10

732610010

$0.70

26

Washer

506152194

$4.28

27

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

28

Elastic Stop Nut M10

232500416

$1.79

29

Bushing

506152521

$13.19
