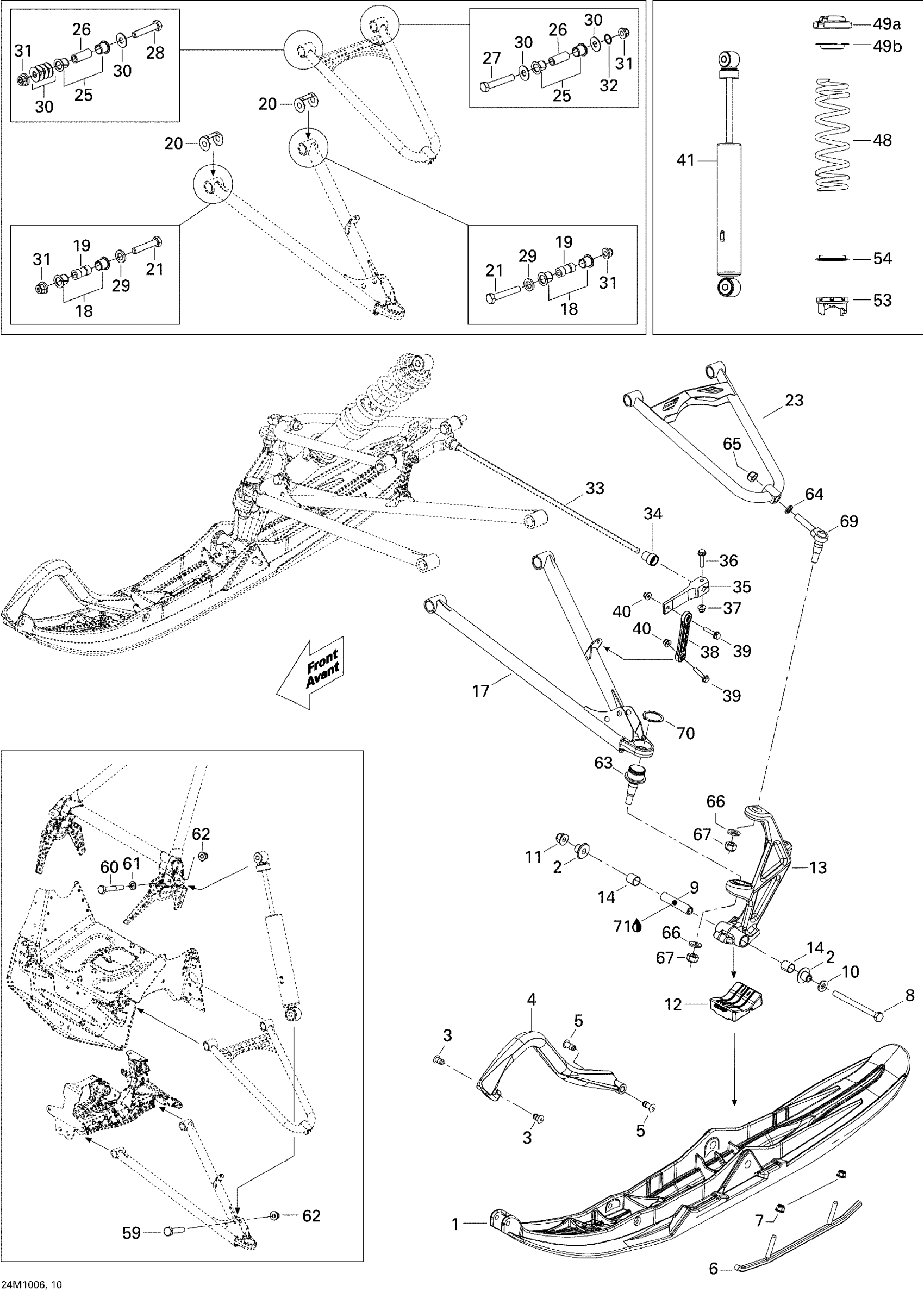

Ski-Doo GSX Sport 600, 2010 07- Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

1

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Black, Handle

505070963

$35.99

5

Retainer 23mm Long

505072133

$6.78

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

Spacer

506133300

$23.99

10

Washer

732900049

$0.58

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Ski Stopper

505071779

$18.78

13

Clear, LH Ski Leg

505073007

$249.99

13

Clear, RH Ski Leg

505073008

$239.99

14

Leg Bushing

505072690

$12.49

17

Black, RH Lower Arm

505072664

$204.99

17

Black, LH Lower Arm

505072665

$204.99

18

Bushing

505072208

$3.28

19

Sleeve

505072209

$17.84

20

Wear Plate

505072634

$6.29

21

Screw Hex. M10 X 70

250001024

$2.11

23

Upper Arm | SE White/White Models

505072374

$154.99

25

Bushing

505072250

$3.28

26

Sleeve

505072143

$9.00

27

Screw Hex. M10 X 60

250001023

$2.11

28

Screw Hex. M10 X 50

250001022

$1.69

29

Washer

503189564

$0.74

30

Washer

505072392

$4.76

31

Hex. Flange Elastic Nut M10

250100165

$0.85

32

O-Ring

505072448

$2.32

33

Stabilisator

505072602

$68.99

34

Bushing

505072064

$2.32

35

Stabilisator Lever

505072394

$18.73

36

Hex. Flange Screw M6 X 30

207663046

$1.69

37

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

Sway Bar Double Joint Link

505072204

$21.99

39

Hex. Flange Screw M6 X 30

207663046

$1.69

40

Elastic Flange Nut M6 X 1.0

233261416

$2.11

41

Front Shock

505073180

$164.49

48

Black, Spring

505072763

$67.99

49a

Spring Stopper

706200881

$12.99

49b

Spring Stopper

503194270

$19.99

53

Adjustment Cam

505073625

$12.99

54

Spring Guide

503187500

$10.49

59

Hex. Screw M10 X 55

207005544

$2.22

60

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

61

Washer

503189564

$0.74

62

Hex. Flange Elastic Nut M10

233201414

$1.58

63

Ball Joint

505073636

$51.99

64

Washer

503189276

$3.28

65

Hex. Elastic Hex. Nut M12

250100089

$0.46

66

Flat Washer 12 mm

234021410

$0.72

67

Hex. Elastic Hex. Nut M12

250100089

$0.46

69

Upper Ball Joint

505072257

$17.58

70

Circlip

293370035

$2.64

71

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
