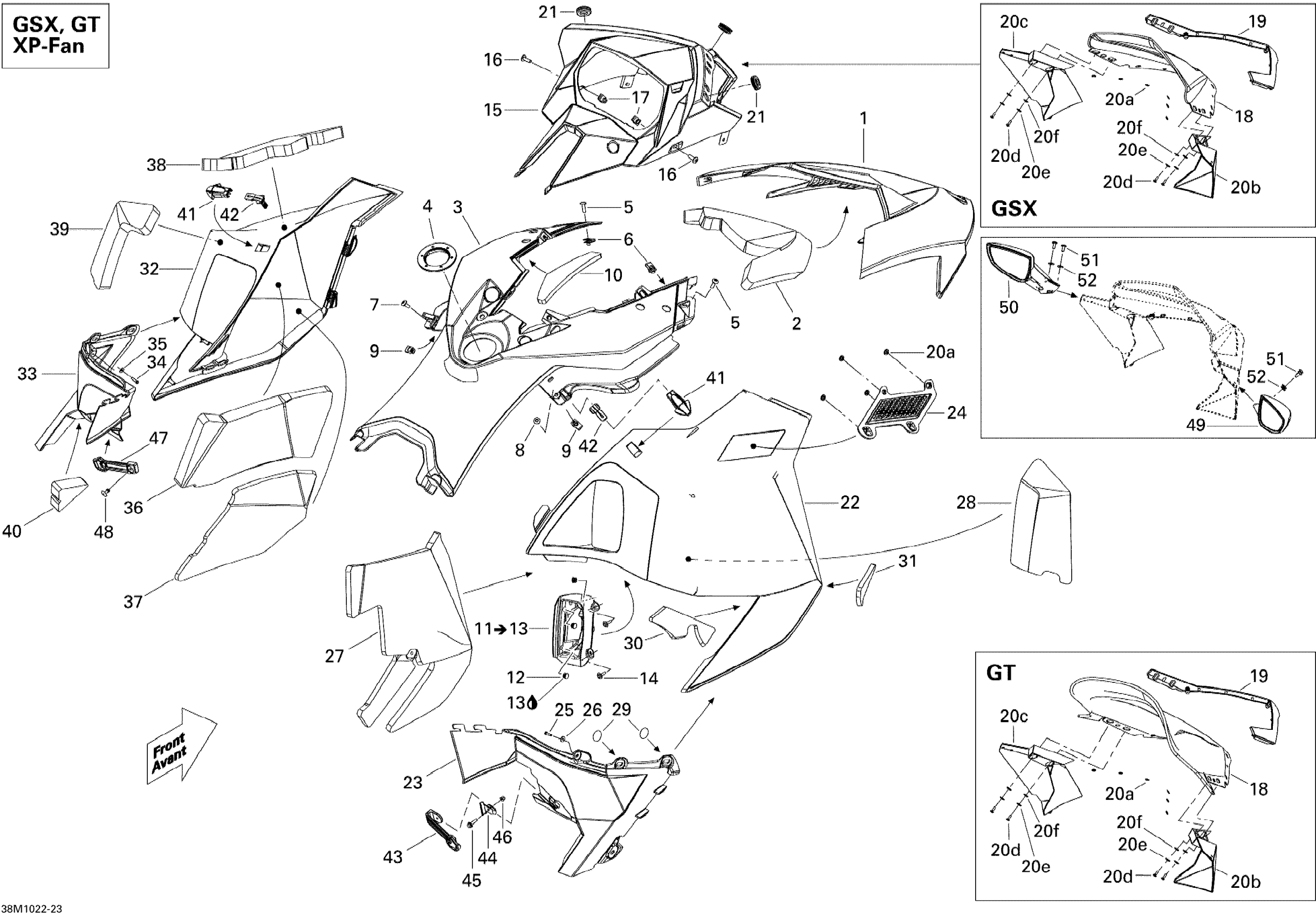

Ski-Doo GSX Sport 550F, 2010 Hood Diagram

#

Description
Price

1

Deep Black Hood | Deep Black

517304530

$214.99

2

Hood Foam

517304913

$22.49

3

CONSOLE B-160 - Call your local BRP dealership

517304496

Unavailable

4

Console Nut

517304518

$15.29

5

Torx Screw M6 X 20

250000722

$1.68

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Torx Truss Screw M6 X 16

250000721

$1.69

8

Torx Screw M6 X 20

250000722

$1.68

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Foam

517304882

$19.99

11

Black, RH Console | Includes 400 to 400b

517304322

$35.99

12

Black, Cap

275500241

$3.49

13

Loctite, Black Max, 3 ml

413408300

$26.99

14

Screw M4 X 16

250000725

$3.49

15

Gauge Support

517304578

$58.99

16

Torx Screw M6 X 20

250000722

$1.68

17

Panel Nut M6 X 1.0

250100198

$2.11

18

Windsheld Kit 375

860200478

$169.99

18

Windsheld 375mm | Deep Black

517304395

$148.99

19

Windshield Support

517303607

$34.99

20a

Push Nut

732610072

$2.19

20b

RH Air Deflector

517303791

$43.99

20c

LH Air Deflector

517303792

$43.99

20d

Torx Screw K50 X 16

250000720

$1.69

20e

Washer M5

250200025

$0.74

20f

Rubber Washer 5 mm

250200024

$2.19

21

Grommet

517303756

$4.09

22

Deep Black, RH Panel

517304029

$211.99

23

Deep Black RH Moulding Panel

517303671

$28.99

24

Grille

517303622

$31.99

25

Hex. Flange Screw K40 X 16

241141660

$1.48

26

Flat Washer 4 mm, Stainless

234042600

$1.15

27

RH Center Foam

517304883

$43.99

28

RH Panel Rear Foam

517304884

$19.99

29

Adhesive Patch

518325560

$4.69

30

Foam

517304885

$19.99

31

Foam

517304886

$19.99

32

Deep Black, LH Panel

517304030

$211.99

33

Deep Black, LH Moulding Panel

517303673

$28.99

34

Hex. Flange Screw K40 X 16

241141660

$1.48

35

Flat Washer 4 mm, Stainless

234042600

$1.15

36

LH Panel Center Foam

517304887

$27.99

37

LH Panel Lower Foam

517304888

$22.49

38

LH Panel Upper Foam

517304889

$21.99

39

LH Panel Rear Foam

517304890

$17.99

40

Foam

517304891

$21.99

41

End Piece Latch

517304075

$4.69

42

Panel Latch

517303981

$12.99

43

RH Panel Latch

517303612

$9.99

44

Latch Support

517304221

$9.19

45

Hex.Flange Screw M5 X 20

207652044

$1.90

46

Hex. Flange Elastic Nut M5

233251414

$1.04

47

LH Panel Latch

517303808

$11.49

48

Pop Rivet 3/16”

293150108

$1.19

49

RH Mirror Ass'y

517305100

$52.99

50

LH Mirror Ass'y

517305101

$52.99

51

Torx Truss Screw M6 X 16

250000721

$1.69

52

Rubber Washer 5 mm

250200024

$2.19
