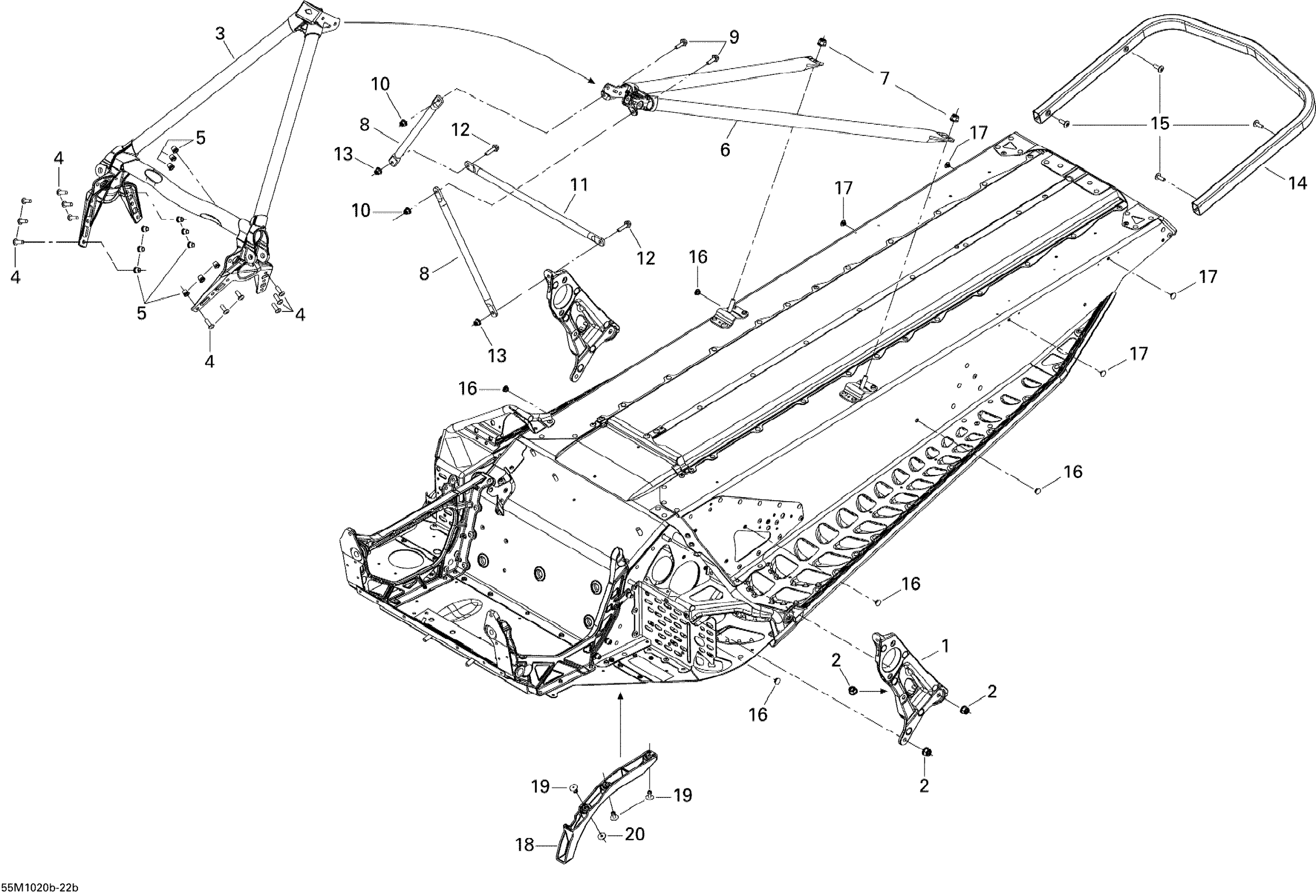

Ski-Doo GSX Sport 550F, 2010 Frame and Components 2 Diagram

#

Description
Price

1

Pulley Support

518328346

$114.15

2

Hex. Flange Elastic Nut M8

233281414

$1.31

3

Front Member

518326975

$344.75

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Rear Member

518326559

$237.28

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Upper Lateral Column Support

518325114

$20.12

9

Hex. Flange Screw M6 X 20

207662044

$1.91

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Center Column Support

518325115

$20.12

12

Hex. Flange Screw M6 X 25

207662544

$0.61

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

14

Clear Rear Bumper

518324980

$94.00

15

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

17

Full Moon Dart 8 mm

293730041

$2.06

18

Full Moon Dart 5 mm

293730042

$2.06

19

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

20

Pop Rivet 3/16”

293150108

$1.19

21

Washer

517124300

$0.18
