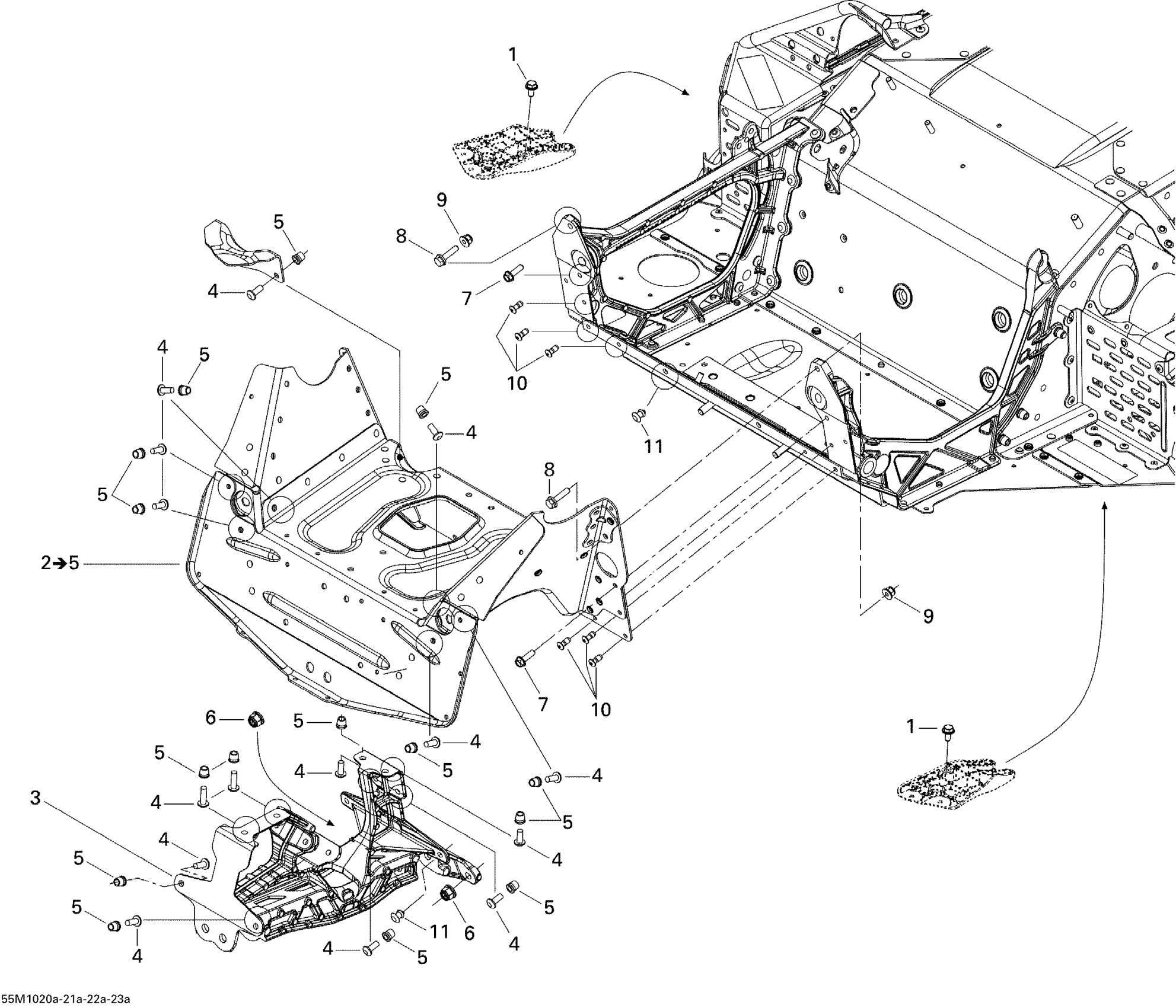

Ski-Doo GSX Sport 550F, 2010 Frame and Components 1 Diagram

#

Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

2

CROSS MEMBER S MODULE - Call your local BRP dealership

518327737

Unavailable

3

Front Suspension Support

518327487

$259.67

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Hex. Flange Elastic Nut M8

233281414

$1.31

7

Hex. Flange Screw M6 X 16

210261650

$1.40

8

Hex. Flange Screw M6 X 25

207662544

$0.61

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

11

Monobolt Rivet 6.4

293150182

$2.82
