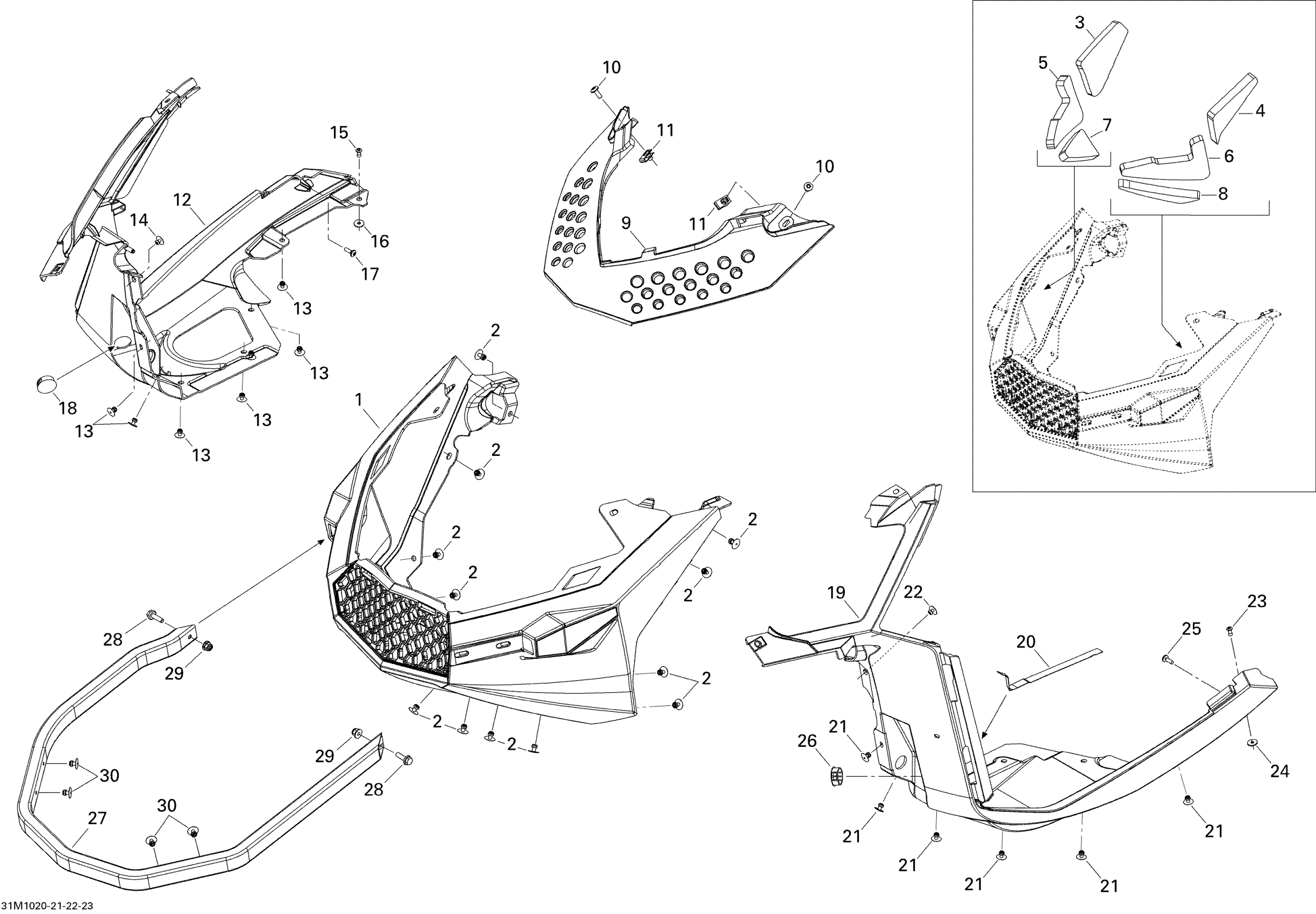

Ski-Doo GSX Sport 550F, 2010 09- Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502006971

$114.99

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3

RH Foam Upper

502007210

$15.99

4

LH Foam Upper

502007211

$17.49

5

RH Middle Foam

502007212

$21.99

6

LH Middle Foam

502007213

$21.99

7

RH Lower Foam

502007214

$15.99

8

LH Lower Foam

502007215

$15.99

9

Deep Black Bottom Pan Cap

502007068

$70.99

10

Torx Truss Screw M6 X 16

250000721

$1.69

11

Panel Nut M6 X 1.0

250100198

$2.11

12

RH Bottom Pan

502006914

$56.99

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Pop Rivet 3/16"

293150103

$0.55

15

Pop Rivet 3/16"

390402300

$0.75

16

Washer

517124300

$0.19

17

Torx Screw K50 X 16

250000720

$1.69

18

Black, Nylon Cap

414916600

$4.69

19

LH Bottom Pan

502007051

$56.99

20

Gasket, Neoprene 2000Mm Long

219704476

$15.36

21

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

22

Pop Rivet 3/16"

293150103

$0.55

23

Pop Rivet 3/16"

390402300

$0.75

24

Washer

517124300

$0.19

25

Torx Screw K50 X 16

250000720

$1.69

26

Black, Nylon Cap

414916600

$4.69

27

Front Bumper

502006944

$121.99

28

Hex. Flange Screw M6 X 20

207662044

$2.00

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
