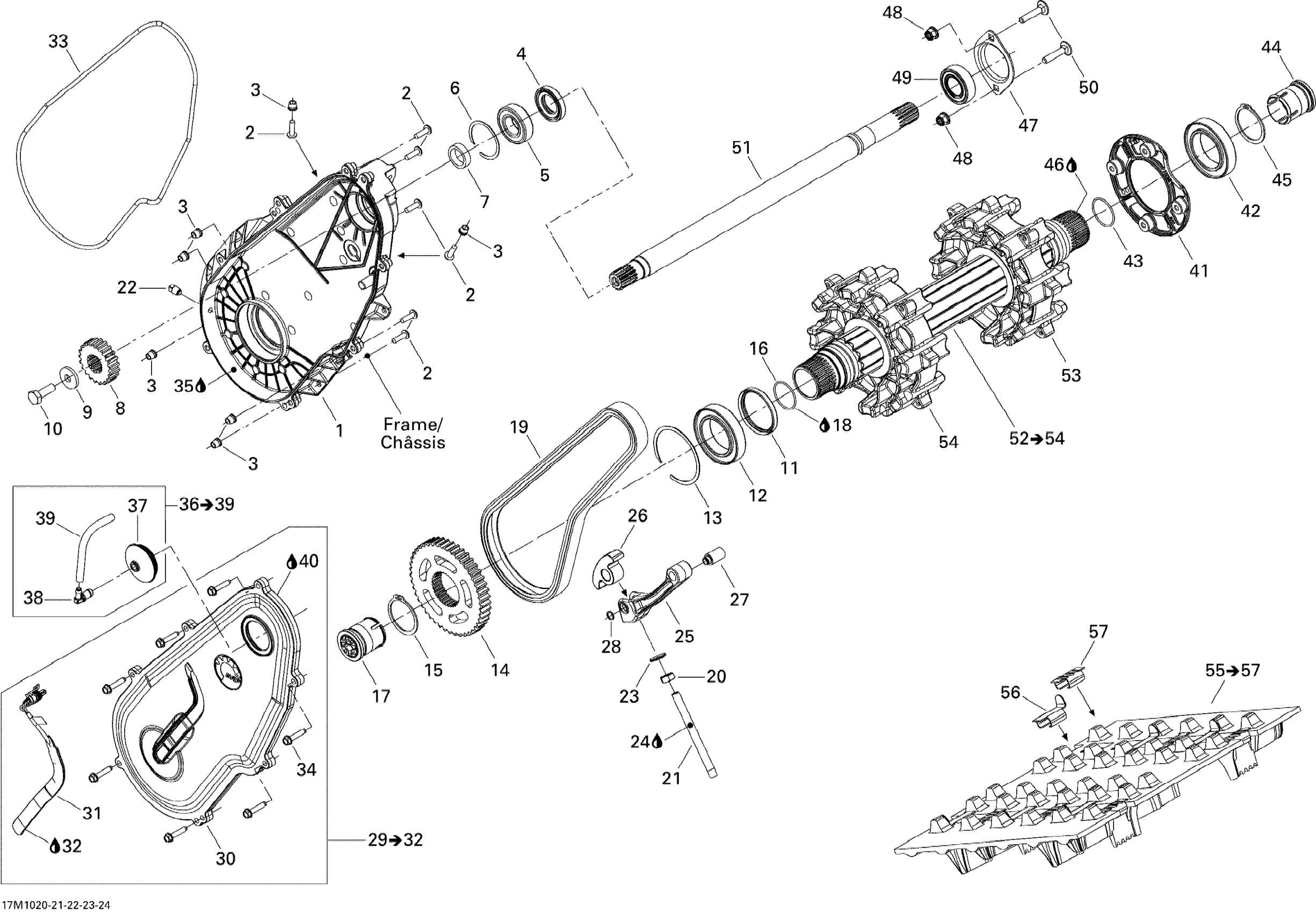

Ski-Doo GSX Sport 550F, 2010 Drive System Diagram

#

Description
Price

1

Chaincase

504153181

$314.90

2

Hex. Flange Screw M6 X 20

207662034

$2.00

3

Flange Elastic Nut M6

233261434

$4.15

4

Oil Seal

293200168

$13.24

5

Ball Bearing

293350115

$10.82

6

Circlip

504152576

$8.45

7

Shim

504152628

$8.15

8

Sprocket, 21 Teeth

504096200

$41.01

9

Spring Washer M10

504152784

$6.07

10

Hex. Screw M10 X 30

207103044

$1.43

11

Oil Seal

293200159

$12.73

12

Ball Bearing

293350059

$29.82

13

Circlip

504152582

$8.45

14

Kit Sprocket This part replaces 504152593.

861805538

$148.48

15

Circlip

504152572

$6.07

16

O-Ring

293300122

$2.00

17

Magnetic Cap

504152619

$22.36

18

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

19

Drive Chain, 102 Links

504152579

$143.25

20

Hex. Nut M10 X 1.5

232006414

$1.27

21

Adjustment Screw

504152602

$9.33

22

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.69

23

Bonded Washer

250200100

$2.00

24

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

25

Tensioner chain

504153429

$13.36

26

Slider Chain

504152739

$65.64

27

Tensioner Axle

504152841

$14.21

28

Circlip

504152282

$3.01

29

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$314.90

30

Casting Cover

504153151

$175.34

31

Rotation Sensor

504152896

$34.30

32

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

33

Tight Seal

293300130

$7.09

34

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.00

35

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

36

Cap Ass'y | Included 1740 to 1740c

504152861

Unavailable

37

Cap

504152860

$18.63

38

Male Connector

414580700

$3.88

39

Polyurethane Hose 10000Mm Long

219704410

$52.96

40

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

41

Retaining Ring

504153886

$17.88

42

Ball Bearing

293350059

$29.82

43

O-Ring

293300122

$2.00

44

Magnetic Cap

504152619

$22.36

45

Circlip

504152572

$6.07

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

48

Hex. Flange Elastic Nut M8

233281414

$1.31

49

Ball Bearing Kit This part replaces 504152535.

415129555

$52.96

50

Bolt Carriage M8 X 40

207784044

$1.06

51

COUNTER SHAFT - Call your local BRP dealership

504152851

Unavailable

52

Drive Axle Ass'y

504154054

$492.51

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Track Ass'y, 15X120X1.0

504152760

Unavailable

56

Track Guide | Track Width 16''

415129528

$3.03

57

Cleat

504152651

$7.97
