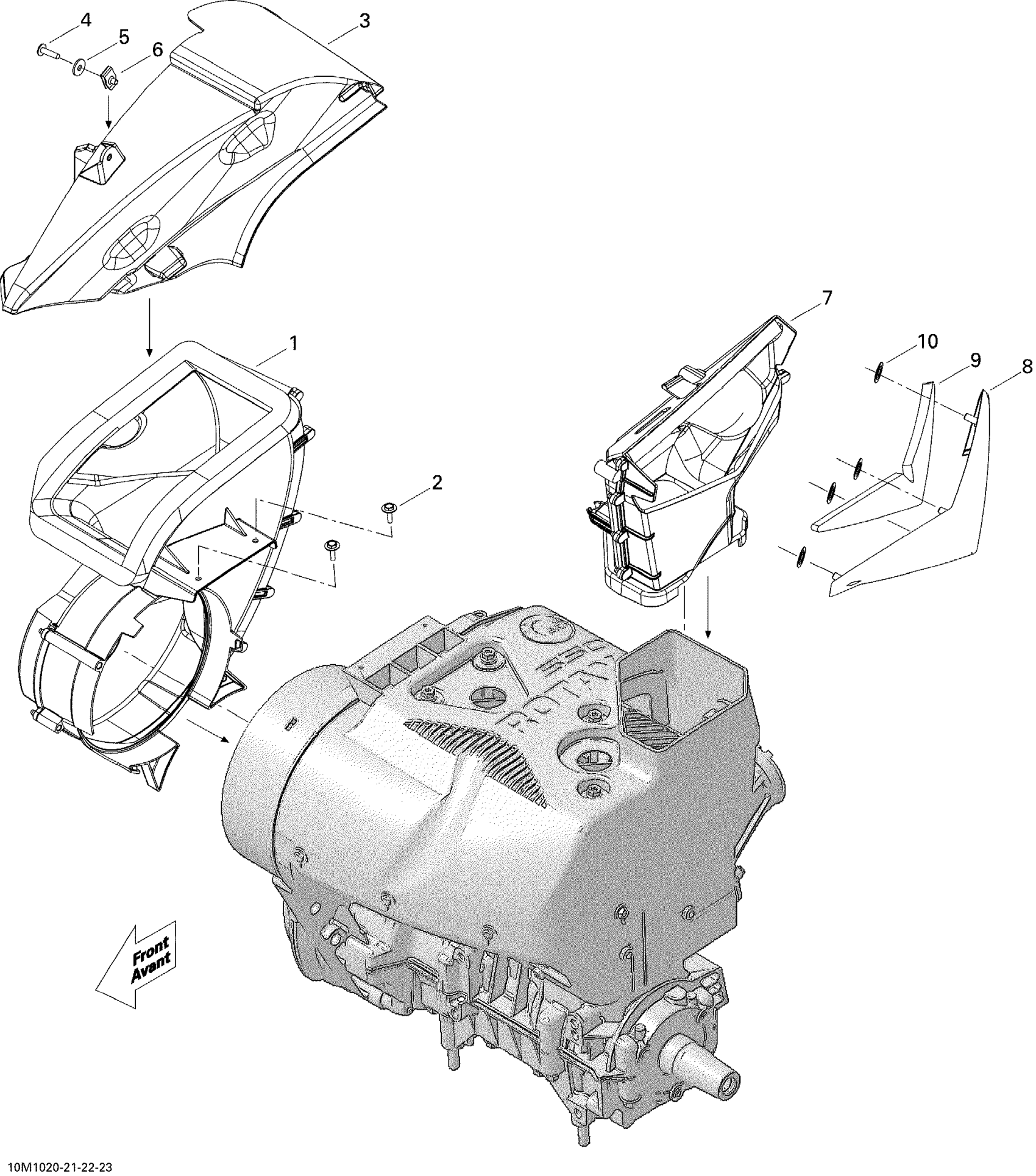

Ski-Doo GSX Sport 550F, 2010 Cooling System Diagram

#

Description

Price

1

Inlet Duct

509000840

$109.99

2

PLASTITE SCREW TYPE K-40 M4 X 16 - Call your local BRP dealership

250000377

Unavailable

3

Air Chamber

509000451

$48.99

4

Torx Screw M5 X 20

250000724

$1.69

5

Washer | DS 650 X

391301600

$0.48

6

Panel Nut M5 X 0.8

250000958

$4.23

7

Outlet Duct

509000452

$48.99

8

Not Available As Spare Parts

XXX

Unavailable

8

OUTLET AIR DEFLECTOR - Call your local BRP dealership | Black Model

509000585

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Air Inlet Foam

509000574

$12.49

10

Push Nut

732610072

$2.19
