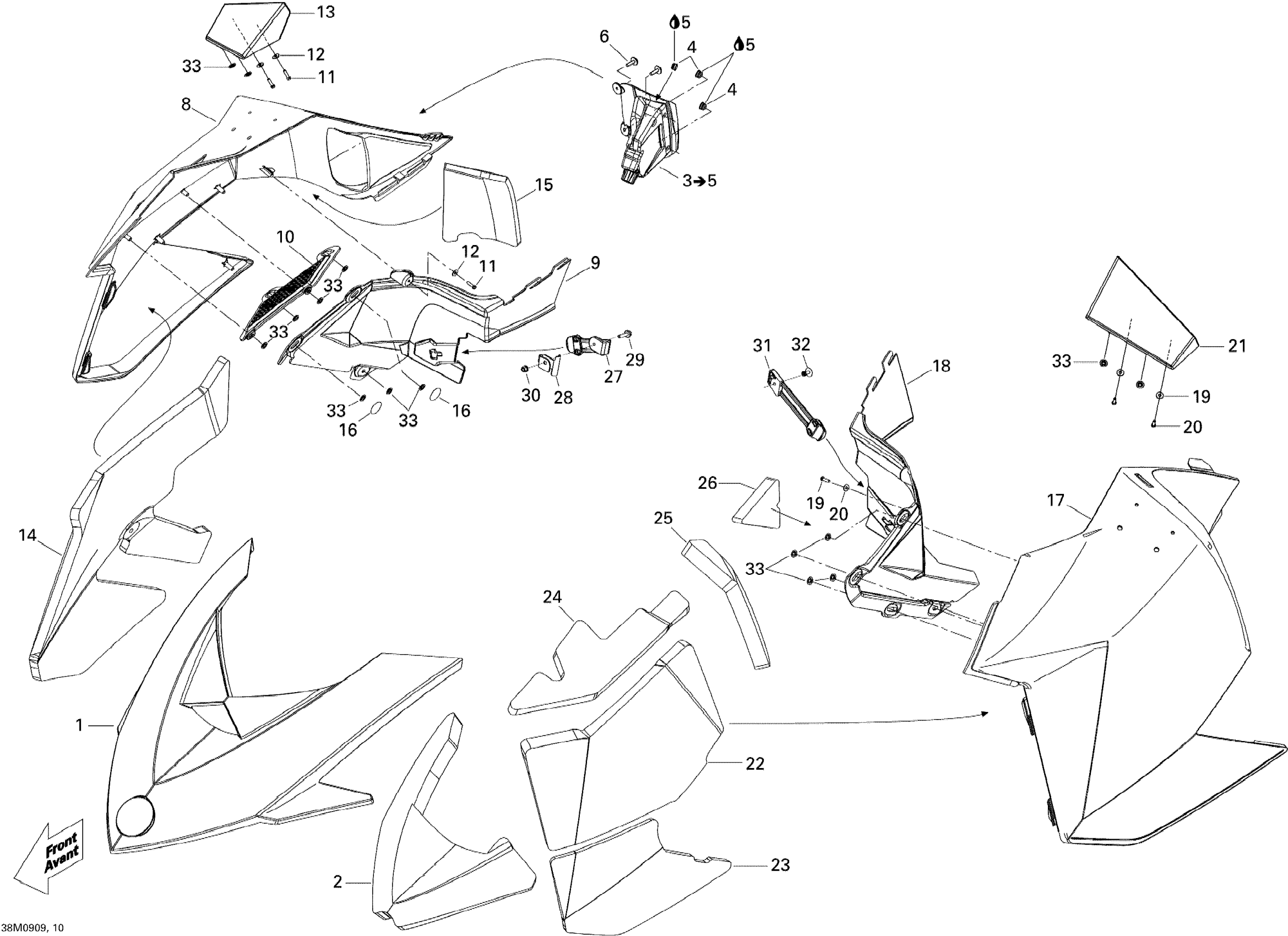

Ski-Doo GSX Sport 500SS, 2009 Hood Diagram

#

Description
Price

1

Deep Black Hood | Deep Black

517304530

$192.51

2

Hood Foam

517304913

$20.12

3

Black, RH Console | Includes 400 to 400b

517304322

$32.81

4

Black, Cap

275500241

$3.16

5

Loctite, Black Max, 3 ml

413408300

$23.85

6

Screw M4 X 16

250000725

$3.30

8

Deep Black, RH Panel

517304029

$200.72

9

Deep Black RH Moulding Panel

517303671

$26.09

10

Grille

517303622

$28.33

11

Hex. Flange Screw K40 X 16

241141660

$1.43

12

Flat Washer 4 mm, Stainless

234042600

$1.06

13

DEFLECTOR_AIR KNEE RH B-160 - Call your local BRP dealership

517303615

Unavailable

14

RH Center Foam

517304883

$39.52

15

RH Panel Rear Foam

517304884

$14.90

16

Adhesive Patch

518325560

$4.21

17

Deep Black, LH Panel

517304030

$200.72

18

Deep Black, LH Moulding Panel

517303673

$26.09

19

Hex. Flange Screw K40 X 16

241141660

$1.43

20

Flat Washer 4 mm, Stainless

234042600

$1.06

21

DEFLECTOR_AIR KNEE LH B-160 - Call your local BRP dealership

517303616

Unavailable

22

LH Panel Center Foam

517304887

$25.34

23

LH Panel Lower Foam

517304888

$20.12

24

LH Panel Upper Foam

517304889

$17.88

25

LH Panel Rear Foam

517304890

$13.54

26

Foam

517304891

$17.88

27

RH Panel Latch

517303612

$9.21

28

Latch Support

517304221

$6.30

29

Hex.Flange Screw M5 X 20

207652044

$1.79

30

Hex. Flange Elastic Nut M5

233251414

$1.91

31

LH Panel Latch

517303808

$9.61

32

Pop Rivet 3/16”

293150108

$1.19

33

Push Nut

732610072

$1.97
