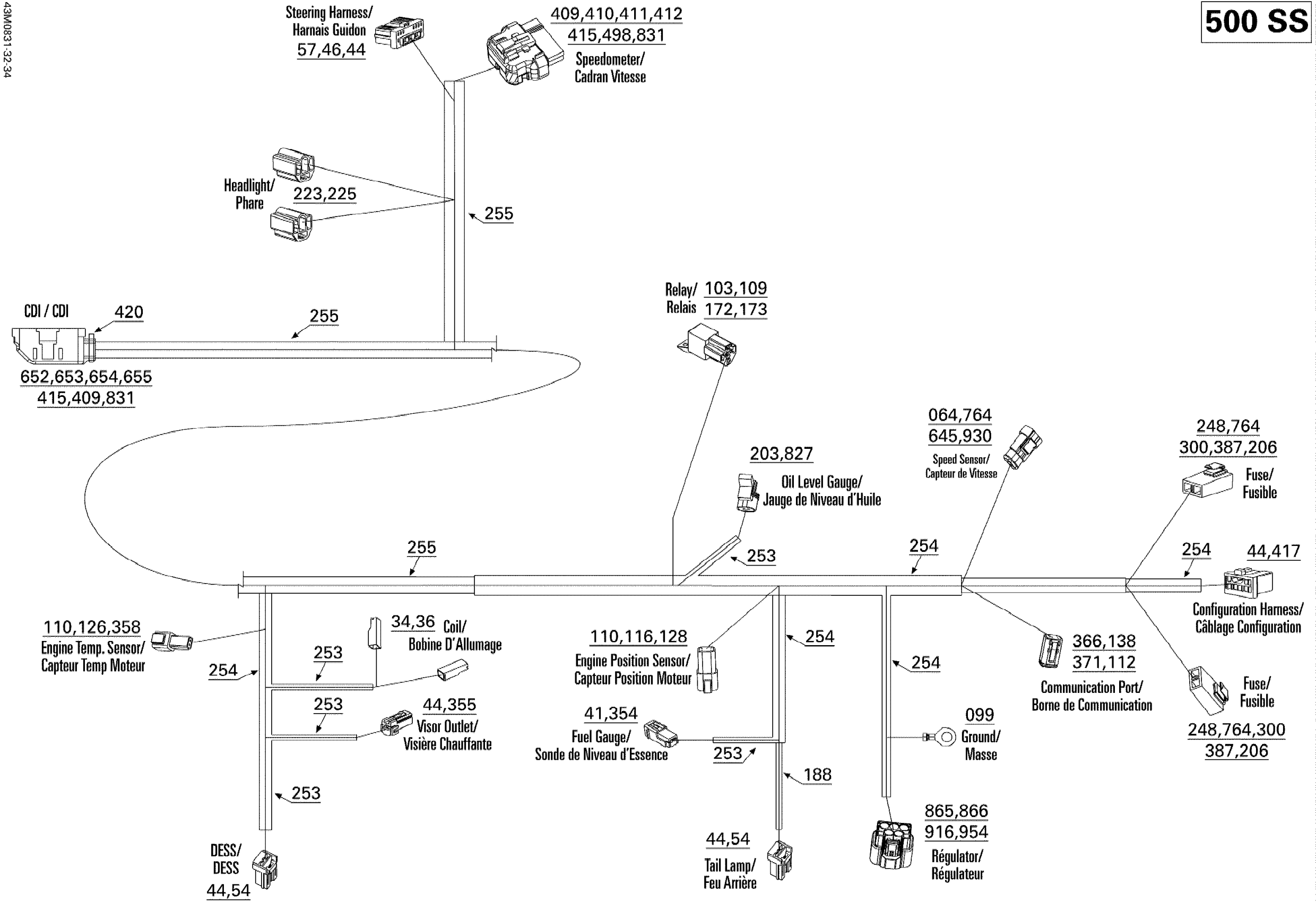

Ski-Doo GSX SPORT 500SS, 2008 10- Electrical Harness Diagram

#

Description
Price

1

MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 954

515176599

Unavailable

34

Female Terminal

409010100

$5.61

36

Female Terminal Housing, 1 Circuit

409010400

$7.62

41

Male Terminal

515175232

$1.58

44

Female Terminal

515175231

$4.39

46

Female Terminal

515175282

$7.86

54

Female Housing, 3 Circuits

515175495

$16.18

57

Female Terminal Housing, 13 Circuits

515175350

$14.24

64

Housing

710000568

$11.12

99

Open Barrel

278000992

$2.21

103

Relay | DS 650 X

710010053

$23.49

109

Female Housing, 5 Circuits

409209900

$9.59

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

116

Female Housing, 4 Circuits

278000635

$16.49

126

Male Lock, 2 Circuits

409207500

$3.19

128

Female Wedge, 4 Circuits

278000636

$4.39

138

Sealing Cap

293000052

$3.19

172

Female Terminal

561503100

$2.41

173

Female Terminal

561503100

$2.41

188

Tubing 12 mm

409902000

Unavailable

203

Male Connector, 2 Circuits

278001113

$16.86

206

Female Terminal

409004200

$4.55

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$8.09

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

300

Fuse, 15 Amperes

278000343

$3.28

354

Male Terminal Housing, 2 Circuits

515175654

$9.12

355

Female Housing, 2 Circuits

515175658

$16.18

358

Male Terminal Housing, 2 Circuits

515175665

$9.29

366

Male Housing, 6 Circuits

515175673

$15.49

371

Male Wedge, 6 Circuits

515175678

$5.39

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

415

Female Terminal

515175806

$0.99

417

Female Terminal Housing, 8 Circuits

515175819

$7.62

420

Tie-Rap 180 mm

414115200

$0.11

498

Female Housing

710000399

$16.49

645

Male Terminal

515176164

$7.16

652

Female Housing

515176221

$15.99

653

Wire Seal

515176222

$16.86

654

Female Terminal Housing, 36 Circuits

515176223

$14.99

655

Terminal Support

515176224

$15.99

764

Clip

710000992

$4.29

827

Female Terminal

710001119

$5.39

831

Female Terminal

710001131

$8.89

865

Connector

515176530

$30.49

866

Terminal

515176531

$10.74

916

Seal

515176594

$7.86

930

Wire Seal

515176621

$7.49

954

Lock

515176681

$20.99
