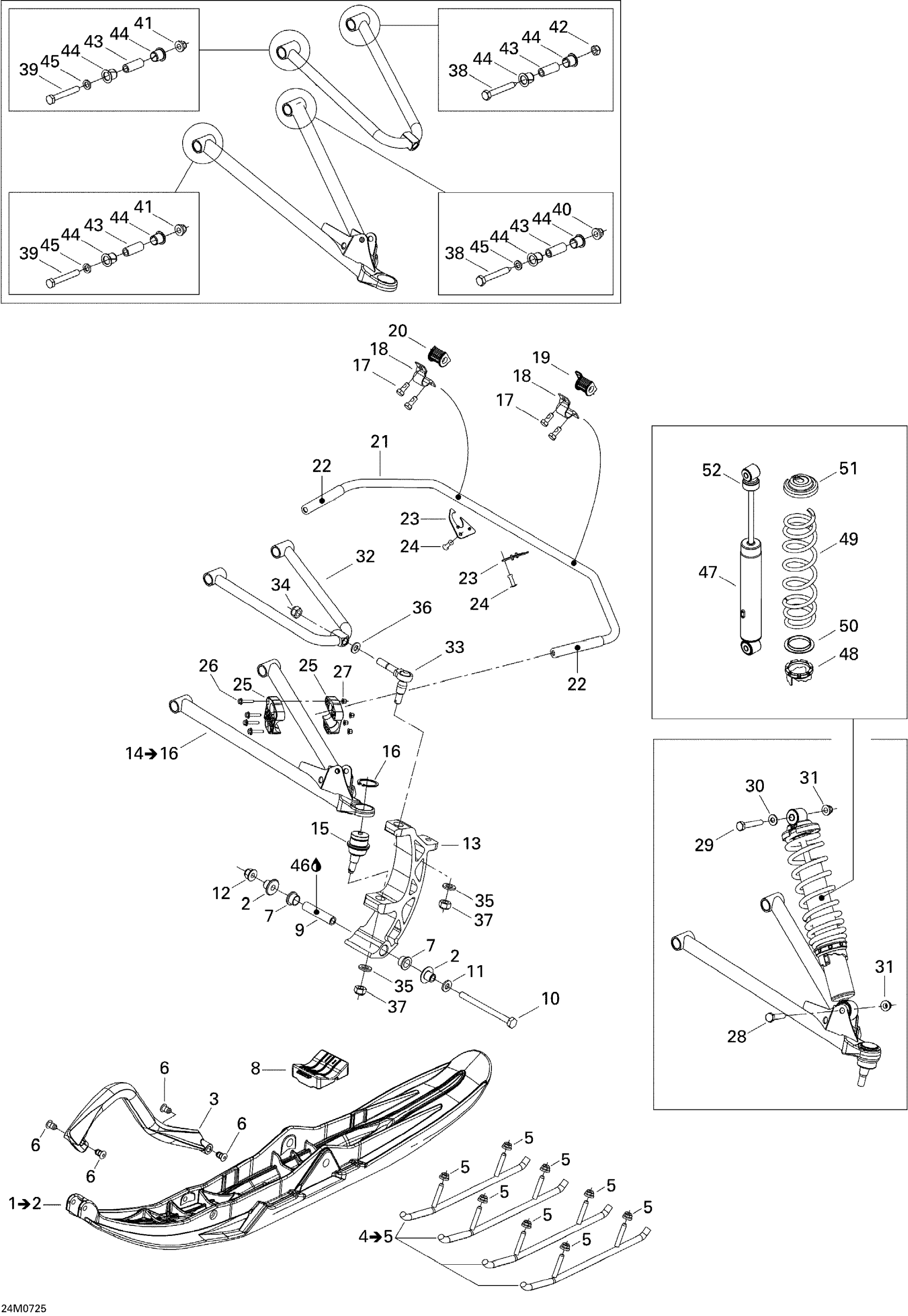

Ski-Doo GSX Sport 500 SS, 2007 07- Front Suspension And Ski Sport Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

1

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

2

Ski Bushing

505071781

$16.18

3

Black, Handle

505070963

$35.99

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$92.99

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Retainer 17mm long

505071812

$5.95

7

Leg Bushing

505072690

$12.49

8

Ski Stopper

505071779

$18.78

9

Spacer

506133300

$23.99

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Washer

732900049

$0.58

12

Flange Nut M10

732610084

$6.79

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

Unavailable

15

Ball Joint

505073636

$51.99

16

Circlip

293370035

$2.64

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

21

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.55

25

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

25

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

26

Hex. Flange Screw M5 X 25

207652544

$0.50

27

Hex. Flange Elastic Nut M5

233251414

$1.04

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

$0.74

31

Hex. Flange Elastic Nut M10

233201414

$1.58

32

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

33

Upper Ball Joint

505072049

Unavailable

34

Hex. Elastic Hex. Nut M12

250100089

$0.46

35

Flat Washer 12 mm

234021410

$0.72

36

Washer

503189276

$3.28

37

Hex. Elastic Hex. Nut M12

250100089

$0.46

38

Hex. Screw M10 X 75

250001063

$13.16

39

Hex. Screw M10 X 75

250001063

$13.16

40

Hex. Flange Elastic Nut M10

250100165

$0.85

41

Hex. Flange Elastic Nut M10

250100165

$0.85

42

Hex. Flange Elastic Nut M10

250100165

$0.85

42

Elastic Flange Nut M10

232501416

$1.48

43

Aluminium Bushing

505070960

$14.15

44

Arm Bushing

505070566

$3.28

45

Washer

503189564

$0.74

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

FRONT SHOCK - Call your local BRP dealership

505071490

Unavailable

48

Adjustment Cam

505073625

$12.99

49

FULL MOON SPRING - Call your local BRP dealership

505071842

Unavailable

50

Spring Guide

503191872

$2.29

51

Spring Stopper

706200881

$12.99

52

Cap

706200785

$4.69
