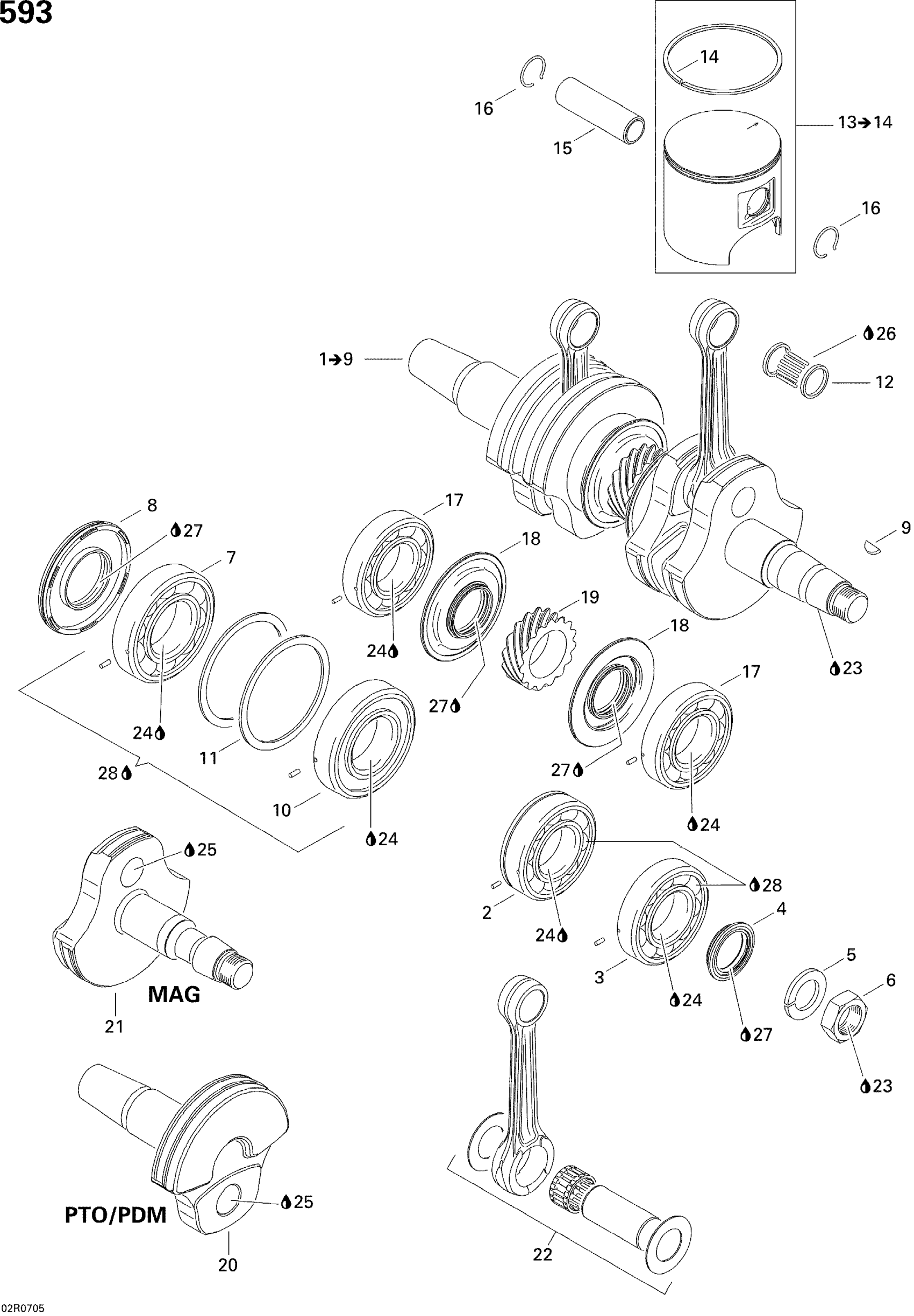

Ski-Doo GSX Sport 500 SS, 2007 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$869.99

1

Crankshaft Ass'y | Includes 1 to 9

420890971

$869.99

2

Ball Bearing

420832596

$93.05

3

Ball Bearing 6206

420832590

$46.12

4

Oil Seal

420931795

$16.89

5

Lock Washer, 22 mm

420945759

$1.55

6

Hex. Nut, M22 X 1.5

420842239

$14.27

7

Ball Bearing 6207 | With drive pin

420832575

$50.74

8

Oil Seal This part replaces 290831952.

420831952

$14.27

9

Woodruff Key

420246015

$3.11

10

Ball Bearing Sealed, 6207

420832673

$96.89

11

Retaining Disk

420927710

$7.23

12

Needle Bearing

420832445

$26.12

13

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$174.58

13

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$174.58

14

Semi-Trapez Ring, Standard

420815155

$52.99

14

Semi-Trapez Ring, 1st

420815156

$52.99

15

Piston Pin

420916412

$31.99

16

Piston Circlip

420845106

$3.52

17

Ball Bearing 6206

420832590

$46.12

18

Oil Seal | Included in gasket kit

420931940

$29.97

19

Central Gear, 15 Teeth

420834350

$93.82

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Rod Repair Kit, MAG Side

420890973

$319.99

22

Rod Repair Kit, PTO Side

420890974

$319.99

23

Loctite 243, 10 ml

293800060

$20.77

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Sealant Loctite 648

219703000

$35.72

26

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

27

Petamo Grease, GHY133N, 400 g

420899271

$57.17

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
