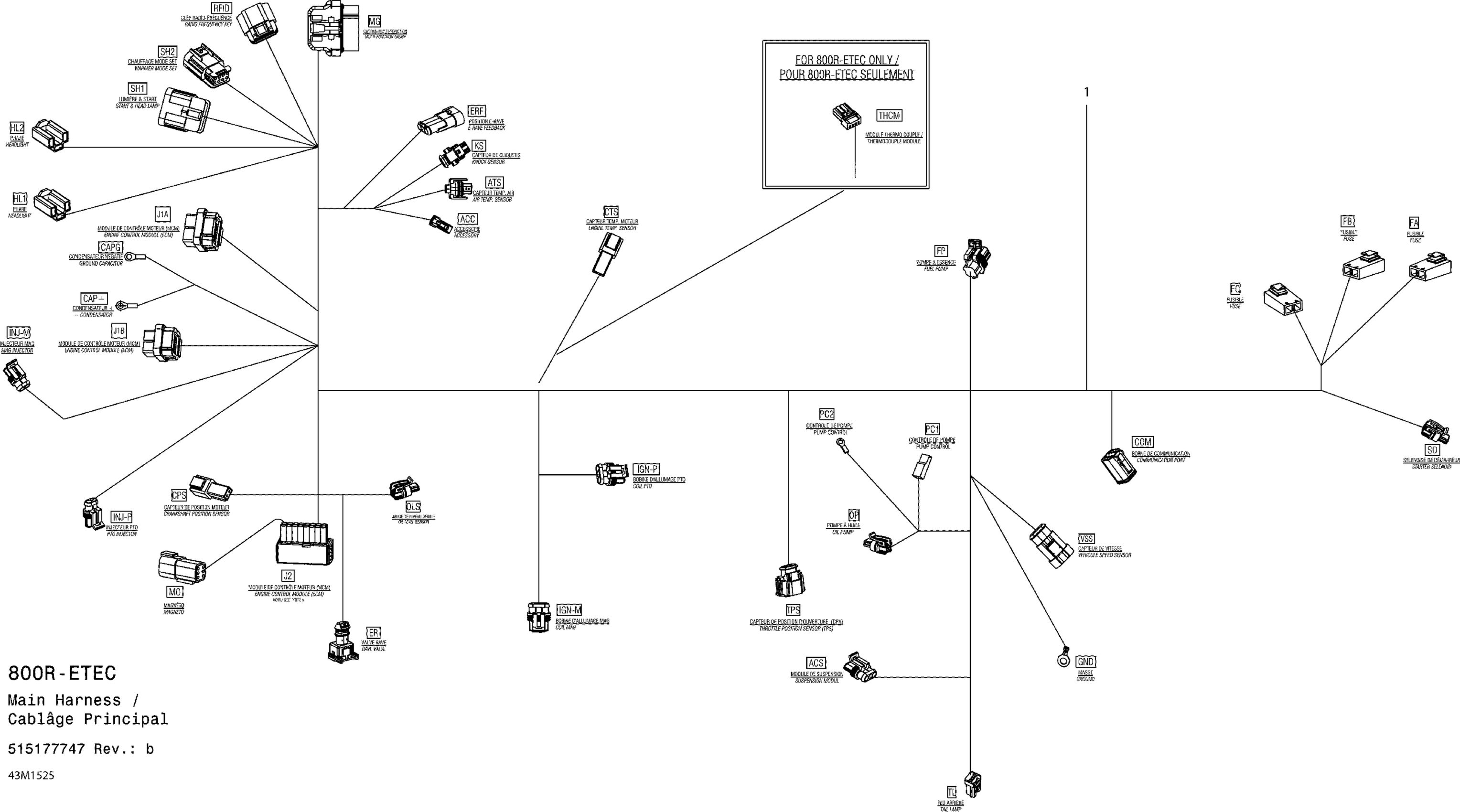

Ski-Doo GSX SE 800RETEC XR137, 2015 10- Electrical Harness Main_43M1525 Diagram

#

Description
Price

1

Main Harness | 800R ETEC

515177747

Unavailable

ACC

Female Housing, 2 Circuits

515175658

$16.18

ACC

Female Terminal

515175231

$4.39

ACS

Female Housing, 3 Circuits

409209600

$35.99

ACS

Wire Seal

278001013

$3.28

ACS

Wire Seal

515176621

$7.49

ACS

Female Terminal

710001340

$5.89

ACS

Female Terminal

278001014

$3.28

ATS

Female Terminal Housing

515176890

$12.99

ATS

Wire Seal

710001163

$7.69

ATS

Female Terminal

710001164

$8.89

CAP+

Shrink Tubing, 6 mm

515177246

$1.04

CAP+

Terminal Ring

515177799

$9.49

CAPG

Shrink Tubing, 6 mm

515177246

$1.04

CAPG

Terminal Ring

515177799

$9.49

COM

Housing, 6 Circuits

278002896

$14.99

COM

Male Wedge, 6 Circuits

515175678

$5.39

COM

Sealing Cap

293000052

$3.19

COM

Female Terminal

278001665

$4.55

CPS

Male Housing, 2 Circuits

409206900

$9.59

CPS

Male Lock, 2 Circuits

409207500

$3.19

CPS

Male Terminal

278000631

$4.39

CTS

Male Housing, 2 Circuits

409206900

$9.59

CTS

Male Lock, 2 Circuits

409207500

$3.19

CTS

Male Terminal

278000631

$4.39

ER

Female Terminal Housing, 2 Circuits

415128500

$7.62

ER

Seal

415128501

$1.89

ER

Female Terminal

278000998

$4.39

ERF

Housing

710000568

$11.12

ERF

Wire Seal

515176621

$7.49

ERF

Male Terminal

515176164

$7.16

FA

Clip

710000992

$4.29

FA

Fuse Holder

409004000

$8.09

FA

Female Terminal

409004200

$4.55

FB

Clip

710000992

$4.29

FB

Fuse, 5 Amperes | CE

278000344

$3.28

FB

Fuse Holder

409004000

$8.09

FB

Female Terminal

409004200

$4.55

FB

Female Terminal

409011600

$5.39

FC

Clip

710000992

$4.29

FC

Fuse, 15 Amperes

278000343

$3.28

FC

Fuse Holder

409004000

$8.09

FC

Female Terminal

409004200

$4.55

FP

Housing

710001132

$9.85

FP

Lock

710001133

$4.39

FP

Seal

278001482

$3.19

FP

Female Terminal

278001481

$3.49

GND

Open Barrel Terminal

278001392

$4.79

HL1

Female Housing

515177663

$4.55

HL1

Terminal

515176909

$2.21

HL2

Female Housing

515177663

$4.55

HL2

Terminal

515176909

$2.21

IGN_M

Female Housing, 3 Circuits

409209600

$35.99

IGN_M

Wire Seal

278001013

$3.28

IGN_M

Wire Seal

515176621

$7.49

IGN_M

Female Terminal

278001014

$3.28

IGN_M

Female Terminal

710001340

$5.89

IGN_P

Female Housing, 3 Circuits

409209600

$35.99

IGN_P

Wire Seal

278001013

$3.28

IGN_P

Wire Seal

515176621

$7.49

IGN_P

Female Terminal

278001014

$3.28

IGN_P

Female Terminal

710001340

$5.89

INJ_M

Female Housing, 2 Circuits

409209500

$15.27

INJ_M

Wire Seal

278001013

$3.28

INJ_M

Female Terminal

278001014

$3.28

INJ_P

Female Housing, 2 Circuits

409209500

$15.27

INJ_P

Wire Seal

278001013

$3.28

INJ_P

Female Terminal

278001014

$3.28

J1A

Female Terminal Housing, 34 Circuits

515176342

$21.99

J1A

Plug

515175812

$2.19

J1A

Female Terminal

515176541

$4.55

J1A

Female Terminal

515176348

$6.99

J1B

Female Terminal Housing, 26 Circuits

515176341

$29.49

J1B

Plug

515175812

$2.19

J1B

Female Terminal

515176348

$6.99

J1B

Female Terminal

515176541

$4.55

J2

Female Terminal Housing, 16 Circuits

515176340

$15.80

J2

Seal

415128501

$1.89

J2

Wire Seal

278000999

$3.19

J2

Female Terminal

278000998

$4.39

KS

Female Terminal Housing, 2 Circuits

278002520

$9.49

KS

Seal

415128501

$1.89

KS

Female Terminal

278000998

$4.39

MG

Female Housing, 24 Circuits

515175801

$9.59

MG

Retainer Block

515175802

$11.49

MG

Plug

515175812

$2.19

MG

Female Housing

710000399

$16.49

MG

Wire Seal

515175803

$2.99

MG

Female Terminal

515175806

$0.99

MG

Female Terminal

710001131

$8.89

MO

Male Terminal Housing, 6 Circuits

710001539

$19.99

MO

Female Lock, 6 Circuits

278000735

$3.19

MO

Male Terminal

278000631

$4.39

OLS

Female Housing, 2 Circuits

515177192

$9.12

OLS

Wire Seal

710001163

$7.69

OLS

Female Terminal

710001164

$8.89

OP

Female Housing, 2 Circuits

515177192

$9.12

OP

Seal Wire

710001332

$3.28

OP

Terminal

710000925

$3.19

PC1

Female Terminal Housing, 1 Circuit

409010400

$7.62

PC1

Female Terminal

409010100

$5.61

PC2

Shrink Tubing, 6 mm

515177246

$1.04

PC2

Ring Terminal

515175504

$9.12

RFID

Female Housing

515177186

$25.99

RFID

Seal

710001233

$3.19

RFID

Terminal

710001229

$3.19

SD

Female Housing, 2 Circuits

515177192

$9.12

SD

Seal Wire

710001332

$3.28

SD

Terminal

710000925

$3.19

SH1

Housing, Packard

710001929

$11.12

SH1

Cap

710001225

$9.19

SH1

Seal Wire

710001332

$3.28

SH1

Seal

710001233

$3.19

SH1

Terminal

710001224

$3.19

SH1

Terminal

710001223

$3.19

SH2

Housing

710001927

$8.79

SH2

Seal

710001233

$3.19

SH2

Terminal

710001224

$3.19

THCM

Female Terminal Housing, 4 Circuit

515177048

$10.99

THCM

Lock, 4 Circuits

515177051

$10.49

THCM

Seal

515177050

$7.86

THCM

Female Terminal

515177049

$5.61

TL

Female Housing, 3 Circuits

515175495

$16.18

TL

Female Terminal

515175231

$4.39

TPS

Female Terminal Housing, 3 Circuits

278002521

$9.85

TPS

Seal

415128501

$1.89

TPS

Female Terminal

278000998

$4.39

VSS

Clip

710000992

$4.29

VSS

Housing

710000568

$11.12

VSS

Wire Seal

515176621

$7.49

VSS

Male Terminal

515176164

$7.16
