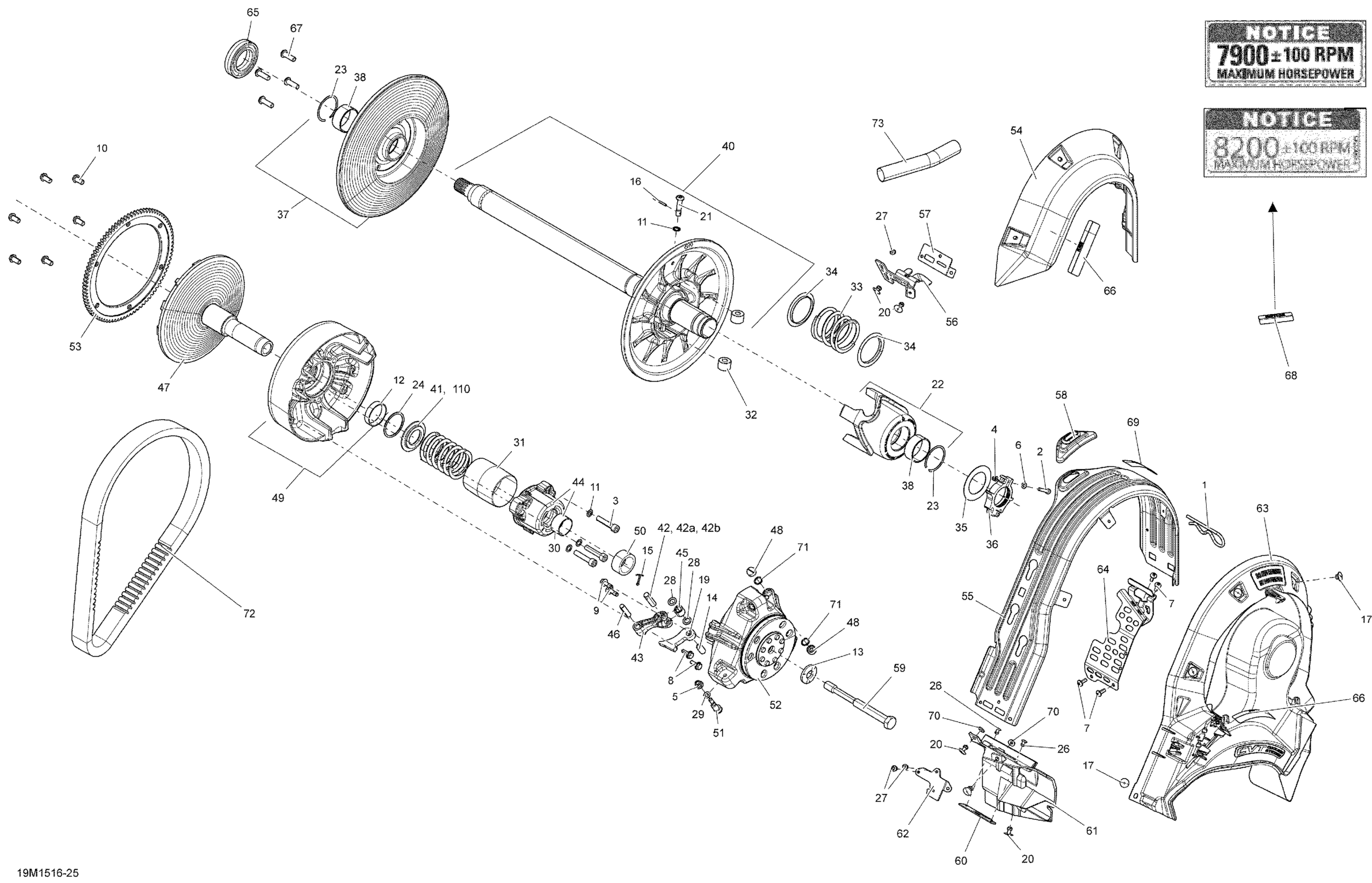

Ski-Doo GSX SE 800RETEC XR137, 2015 05- Pulley System _19M1525 Diagram

#

Description
Price

1

Hair Pin

114045200

$11.11

2

Socket Screw M5 X 25

205052544

$1.68

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

4

Elastic Stop Nut M5

232551414

$0.87

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Flat Washer M5

234051410

$0.53

7

Torx Screw M5 X 14

250000742

$1.47

8

Serrated Hex. Flange Bolt M6

250000416

$4.23

9

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

10

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

11

Lock Washer 8 mm

250200009

$2.11

12

Bushing

417223086

$36.99

13

Conical Spring Washer M14

250200144

$4.44

14

Spring Pin M10 X 22

250400050

$2.99

15

Cotter Pin

250400060

$2.00

16

Spring Pin M3 X 30

250400063

$2.11

17

Pop Rivet 3/16"

293150103

$0.55

19

Ramp 414

417222546

$39.99

20

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

21

Pivot Stud

417127294

$14.49

22

CAM ASS'Y - Call your local BRP dealership

417127379

Unavailable

23

Circlip

293370049

$4.99

24

Circlip

293370071

$4.09

26

Not Available As Spare Parts

XXX

Unavailable

27

Avex Rivet

390909200

$0.30

28

Stopper Washer

417004302

$15.90

29

Washer

417005600

$4.09

30

Bushing

417009204

$17.49

31

Guard

417009205

$21.99

32

Pulley Roller

417127016

$24.49

33

Green, Spring

417127137

$41.49

34

Swivel Abutment

417127116

$9.39

35

Washer

417127155

$8.26

36

Calibration Ass'y

415129604

$21.49

37

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

38

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

40

Fix Flange Ass'y | Includes 100a to 100a4

417127387

$499.99

41

Spring Seat

417222312

$9.59

42

Pin

417222594

$14.99

42a

Not Available As Spare Parts

XXX

Unavailable

42b

Not Available As Spare Parts

XXX

Unavailable

43

Lever | Includes 10f to 10g

417222671

$49.99

44

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.99

45

Roller

417222947

$21.99

46

Lever Axle

417223164

$4.49

47

Fixed Flange Ass'y

417223232

$469.99

48

Slider Shoe

417223271

$8.26

49

Sliding Flange Ass'y | Includes 3 to 5

417223444

$459.99

50

Bushing

417223471

$8.14

51

Calibration Screw

417223501

$13.99

52

Governor Cup Ass'y

417223666

$499.99

53

Ring Gear_Starter This part replaces 417223739.

417225071

$239.99

54

Side Protector

417300356

$14.76

55

Belt Guard

417300357

$91.99

56

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

$14.49

57

Reinforcement

417300380

$7.29

58

Guide

417300381

$11.99

59

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$42.49

60

Not Available As Spare Parts

XXX

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable

62

Not Available As Spare Parts

XXX

Unavailable

63

Not Available As Spare Parts

XXX

Unavailable

64

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

65

Ball Bearing

504152574

$35.99

66

Decal English

516005503

Unavailable

67

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

68

RPM Sticker, English

516005507

$13.49

69

Safety Belt Guard Decal

516005509

Unavailable

70

Not Available As Spare Parts

XXX

Unavailable

71

O-Ring

732401030

$0.98

72

Drive Belt

417300531

$199.99

73

PROTECTOR TUBE 25 MM - 210 MM - Call your local BRP dealership

219702532

Unavailable

110

SPRING YELLOW/GREEN - Call your local BRP dealership

414742100

Unavailable
